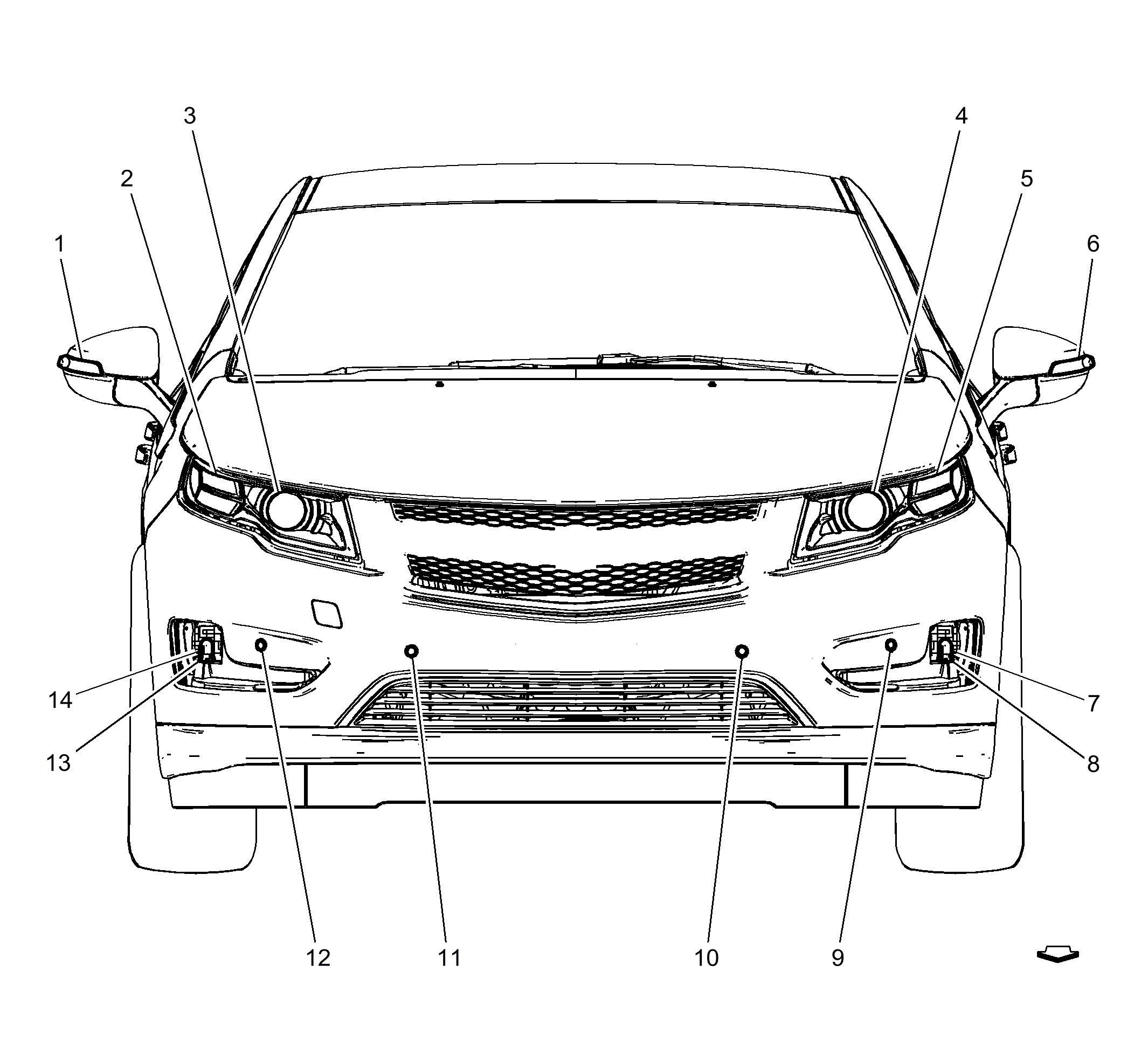

Front of Vehicle Components (Chevrolet)
Front of Vehicle Components (Chevrolet)
| Items |
|---|
| 1: E4Z Turn Signal Repeater Lamp - Right E4Z Turn Signal Repeater Lamp - Right |
| 2: E4D Daytime Running Lamp - Right |
| 3: E13R Headlamp - Right |
| 4: E13L Headlamp - Left |
| 5: E4C Daytime Running Lamp - Left |
| 6: E4Y Turn Signal Repeater Lamp - Left E4Y Turn Signal Repeater Lamp - Left |
| 7: E4LF Turn Signal Lamp - Left Front (-GMNA) E4LF Turn Signal Lamp - Left Front |
| 8: E4N Park/Turn Signal Lamp - Left (GMNA) E4N Park/Turn Signal Lamp - Left |
| 9: B78A Front Object Sensor - Left Outer B78A Front Object Sensor - Left Outer |
| 10: B78C Front Object Sensor - Left Middle (UD5) B78C Front Object Sensor - Left Middle |
| 11: B78D Front Object Sensor - Right Middle (UD5) B78D Front Object Sensor - Right Middle |
| 12: B78B Front Object Sensor - Right Outer (UD5) B78B Front Object Sensor - Right Outer |
| 13: E4RF Turn Signal Lamp - Right Front E4RF Turn Signal Lamp - Right Front |
| 14: E4P Park/Turn Signal Lamp - Right (GMNA) E4P Park/Turn Signal Lamp - Right |
