Engine Compartment Components - Front

Items
1: B202 Hybrid/EV Electronics Coolant Temperature Sensor B202 Hybrid Electronics Coolant Temperature Sensor
2: G10L Cooling Fan Motor - Left G10L Cooling Fan Motor - Left
3: G10R Cooling Fan Motor - Right G10R Cooling Fan Motor - Right
4: B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right
5: B55 Hood Ajar Switch B55 Hood Ajar Switch
6: B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor
7: P12R Horn - Right P12R Horn - Right
8: T18 Battery Charger T18 Battery Charger X1 X1 , T18 Battery Charger X2 X2 , T18 Battery Charger X3 X3 and T18 Battery Charger X4 X4
9: B203 Engine Coolant Radiator Temperature Sensor B203 Engine Coolant Radiator Temperature Sensor
10: B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor
11: G37 Hybrid/EV Battery Pack Coolant Pump G37 Hybrid Battery Pack Coolant Pump
12: G35 Hybrid/EV Electronics Coolant Pump G35 Hybrid Electronics Coolant Pump
13: P12L Horn - Left P12L Horn - Left
14: K20 Engine Control Module K20 Engine Control Module X1 X1 , K20 Engine Control Module X2 X2 and K20 Engine Control Module X3 X3
15: B118 Windshield Washer Fluid Level Sensor B118 Windshield Washer Fluid Level Sensor
16: G24 Windshield Washer Pump G24 Windshield Washer Pump
17: B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left

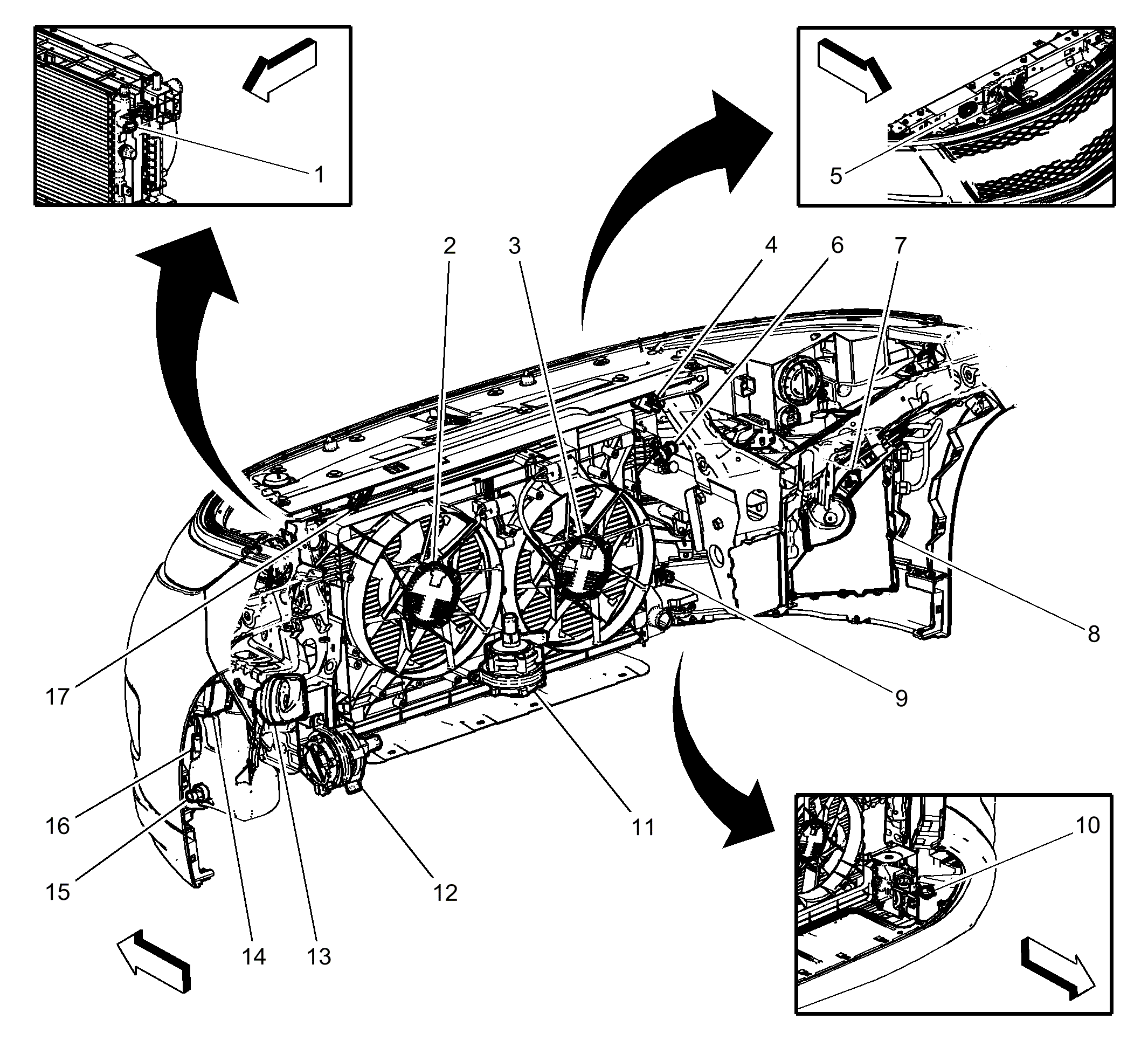

Fig 1: Engine Compartment Components - Front

Courtesy of GENERAL MOTORS COMPANY
