Instrument Panel Components (LHD) (2 of 2)

Items
1: K33 HVAC Control Module K33 HVAC Control Module X1 X1 , K33 HVAC Control Module X2 X2 and K33 HVAC Control Module X3 X3
2: K89 Immobilizer Control Module K89 Immobilizer Control Module
3: E32 Cigarette Lighter Receptacle E32 Cigarette Lighter Receptacle
4: B101 Immobilizer Antenna
5: A11 Radio A11 Radio X1 X1 and A11 Radio X4 X4
6: B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor
7: B201 Brake Control Brake Pedal Position Sensor B201 Brake Control Brake Pedal Position Sensor
8: T15 Navigation Antenna Signal Splitter
9: K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Control Module X1 X1 and K73 Telematics Communication Interface Control Module X2 X2
10: F114D Knee Air Bag - Driver F114D Knee Air Bag - Driver
11: B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor
12: T10B Keyless Entry Antenna - Instrument Panel Compartment T10B Keyless Entry Antenna - Instrument Panel
13: F114P Knee Air Bag - Passenger F114P Knee Air Bag - Passenger
14: K9 Body Control Module K9 Body Control Module X1 X1 , K9 Body Control Module X2 X2 , K9 Body Control Module X3 X3 , K9 Body Control Module X4 X4 , K9 Body Control Module X5 X5 , K9 Body Control Module X6 X6 and K9 Body Control Module X7 X7

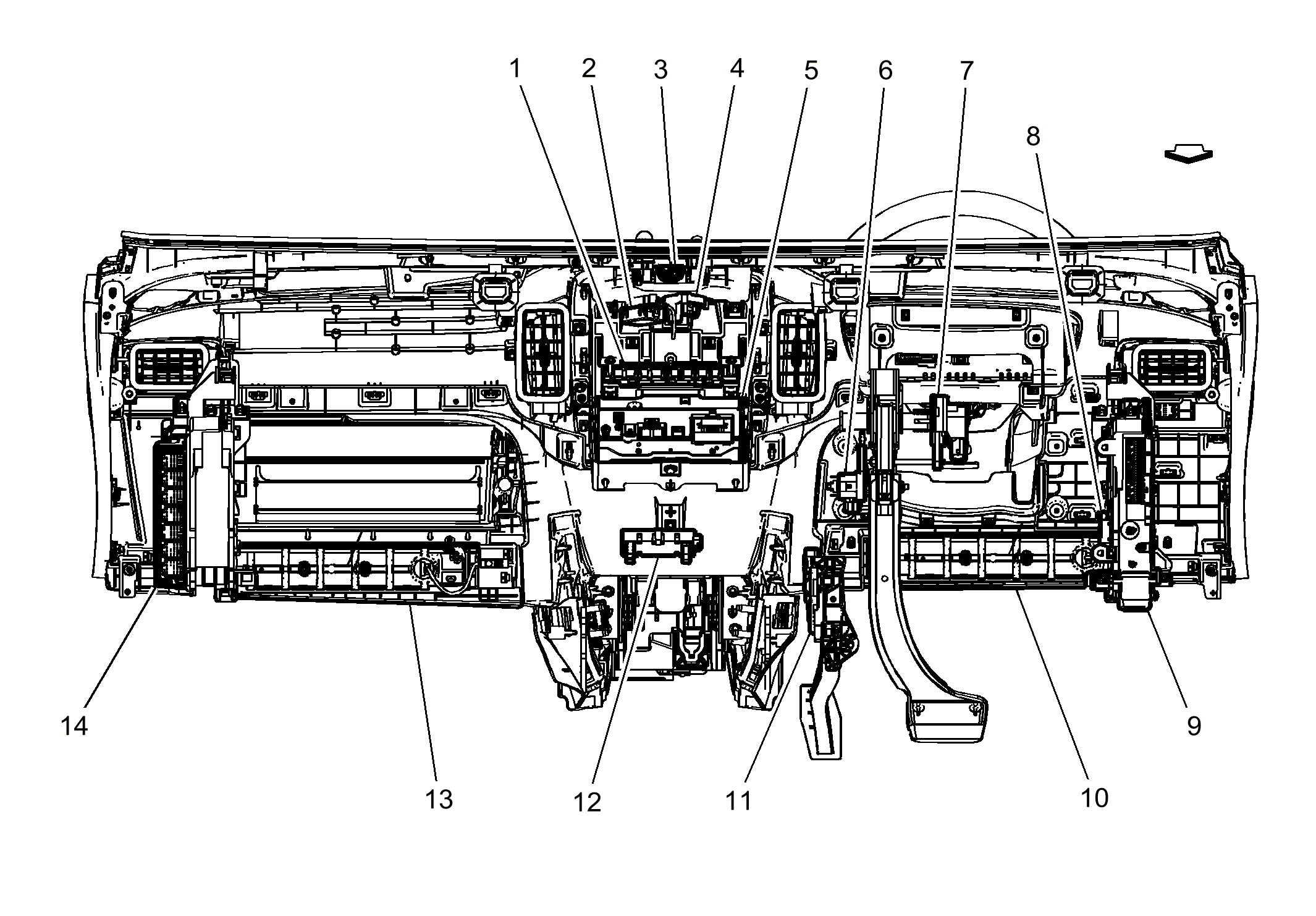

Fig 1: Instrument Panel Components (LHD) (2 Of 2)

Courtesy of GENERAL MOTORS COMPANY
