Front and Rear Object Alarm Module Replacement

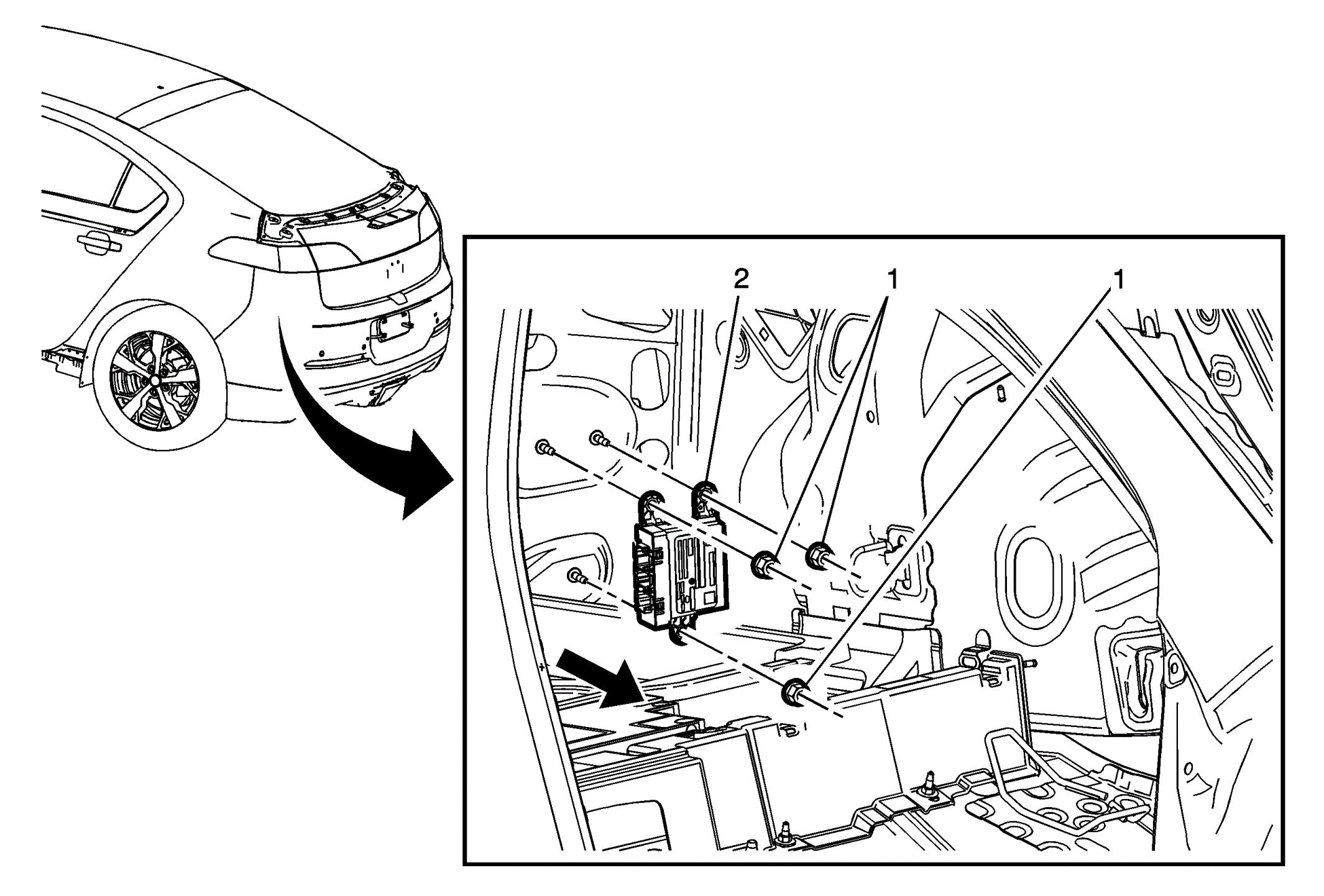

Fig 1: Front and Rear Object Alarm Module
GM2407926Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the left quarter inner trim finish panel. Refer to Quarter Inner Trim Finish Panel Replacement .
1 Front And Rear Object Alarm Module Nuts (Qty: 3)
CAUTION: Refer to Fastener Caution .
2 Front And Rear Object Alarm Module

Procedure

  1. Disconnect the electrical connectors.
  2. For programming and set up, refer to Control Module References .
