Front Side Door Window Frame Rear Applique Replacement

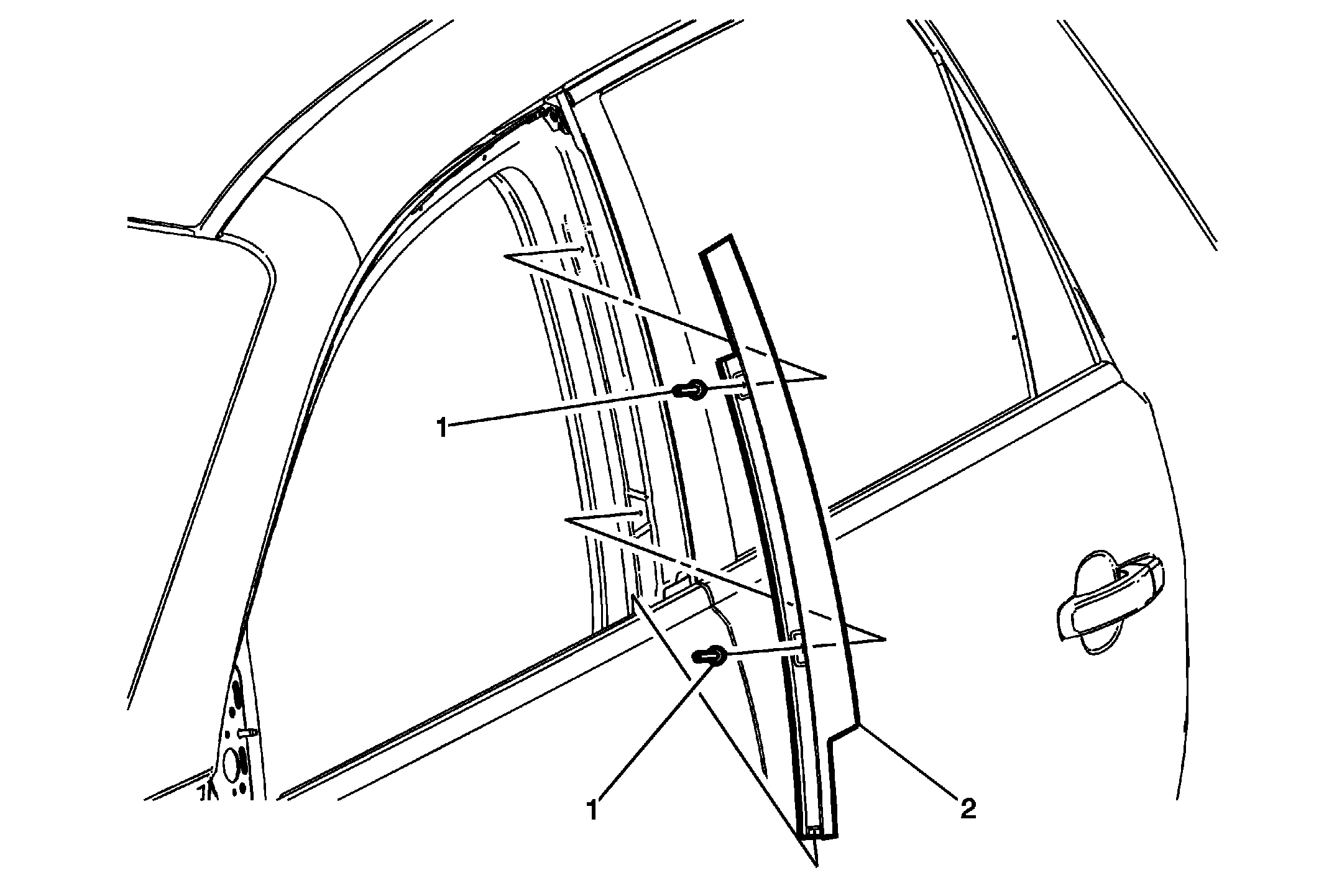

Fig 1: Front Side Door Window Frame Rear Applique (Acadia/Traverse)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Place the front door window in the full down position. Remove the front side door window upper reveal molding. Refer to Front Side Door Window Upper Reveal Molding Replacement (Acadia/Traverse) .
1	Front Side Door Window Frame Applique Rivet (Qty: 3) WARNING: Refer to Eye Protection Warning . CAUTION: Refer to Fastener Caution . Procedure Partially remove the front side door window weatherstrip from the applique to expose the rivets.
2	Front Side Door Window Frame Applique Procedure With a suitable flat bladed tool release the front side door window channel retaining tab and pull front side door window frame rear applique up and out of front side door.

Callout

Component Name

Preliminary Procedures

Place the front door window in the full down position.
Remove the front side door window upper reveal molding. Refer to Front Side Door Window Upper Reveal Molding Replacement (Acadia/Traverse) .

Front Side Door Window Frame Applique Rivet (Qty: 3)

WARNING:

Refer to Eye Protection Warning .

CAUTION:

Refer to Fastener Caution .

Procedure
Partially remove the front side door window weatherstrip from the applique to expose the rivets.

Front Side Door Window Frame Applique
Procedure
With a suitable flat bladed tool release the front side door window channel retaining tab and pull front side door window frame rear applique up and out of front side door.
