Upper Intake Manifold - Top

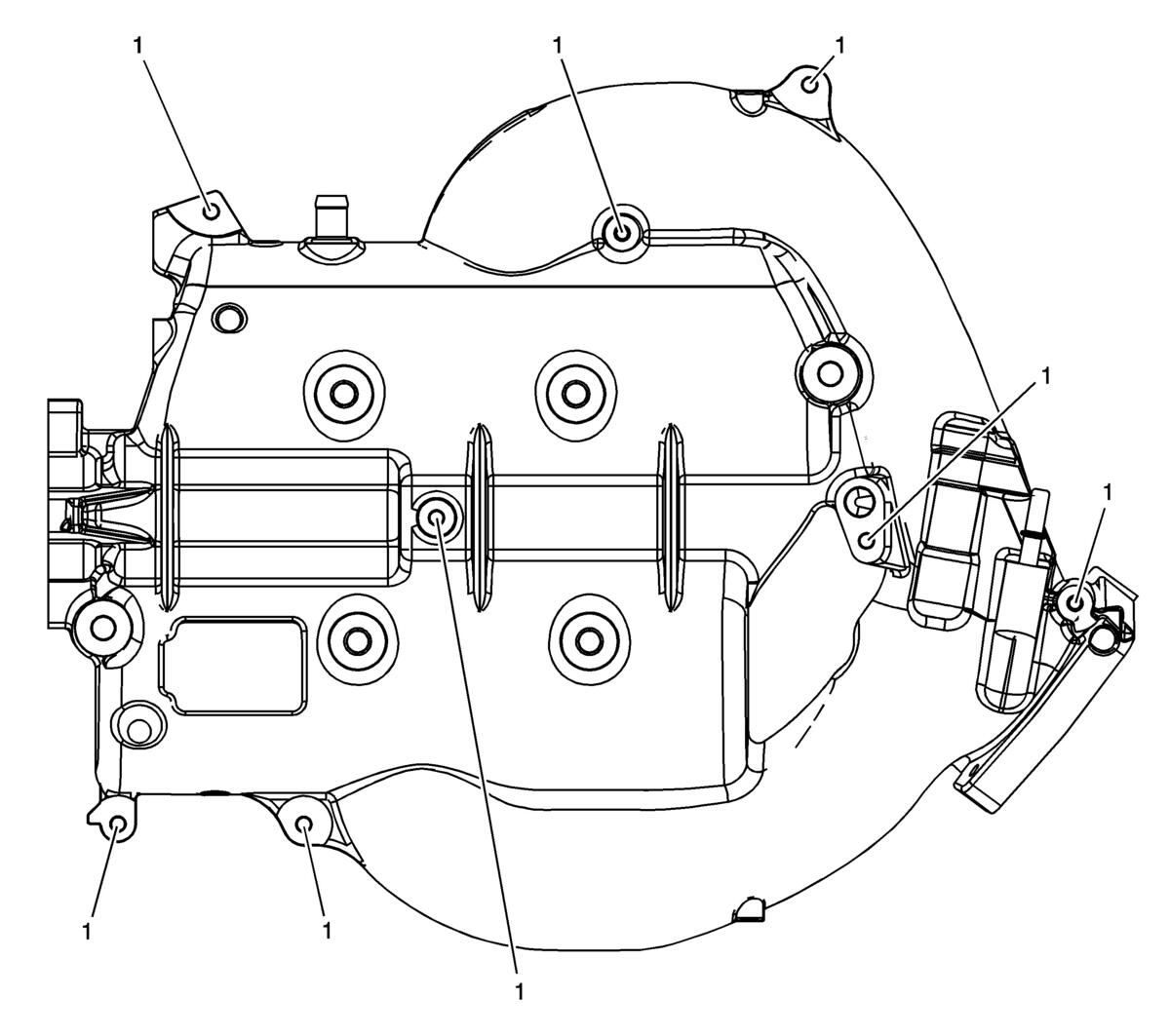

Fig 1: View Of Upper Intake Manifold - Top
GM1848503Courtesy of GENERAL MOTORS COMPANY
Upper Intake Manifold - Top

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
    J 42385- MM (IN) MM (IN)
1 M6 x 1.0 201 202 N/A 203 204 205 THRU THRU
