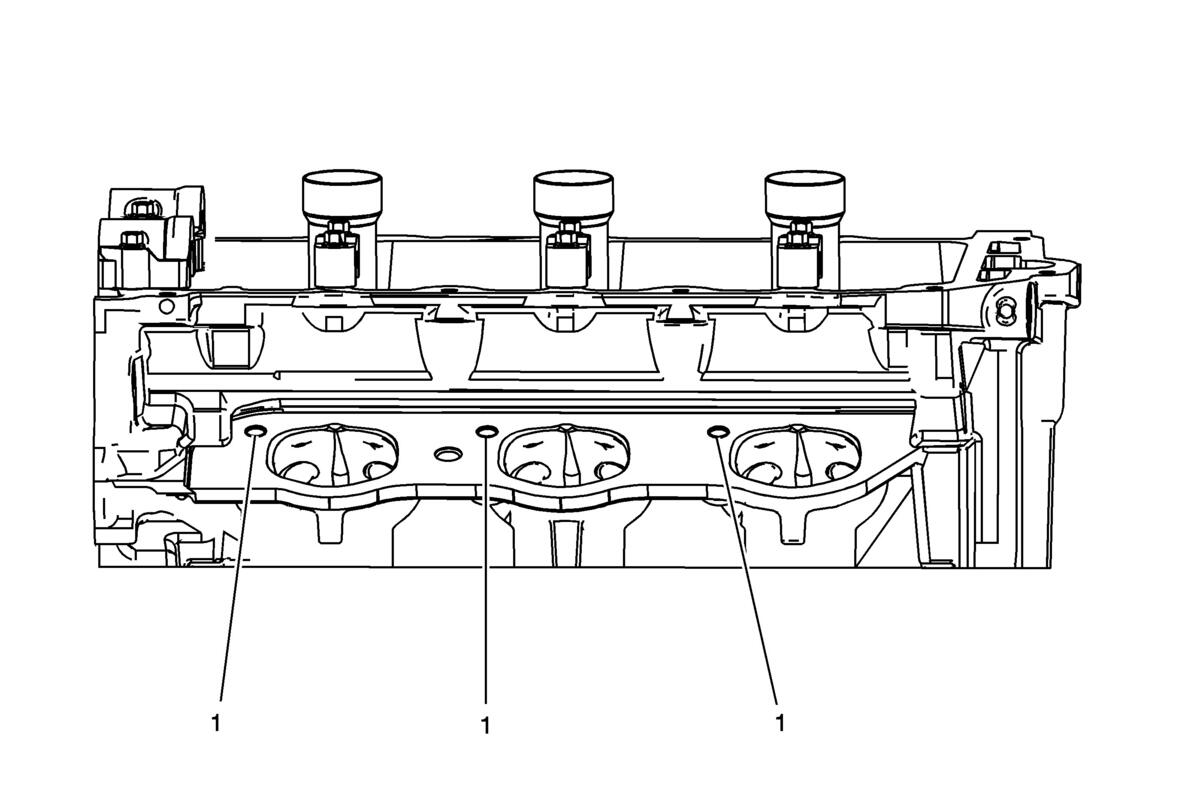

Right Cylinder Head Intake Face
Courtesy of GENERAL MOTORS COMPANY Right Cylinder Head Intake Face
| Hole Location |
Thread Size |
Drill |
Counter Bore Tool |
Stop Collar |
Tap |
Driver |
Insert |
Drill Depth (Maximum) |
Tap Depth (Minimum) |
| |
|
J 42385- |
MM |
(IN) |
MM |
(IN) |
| 1 |
M8 x 1.25 |
206 |
207 |
N/A |
208 |
209 |
210 |
28.5 |
1.1220 |
23.0 |
0.9055 |
