Oil Pan Top

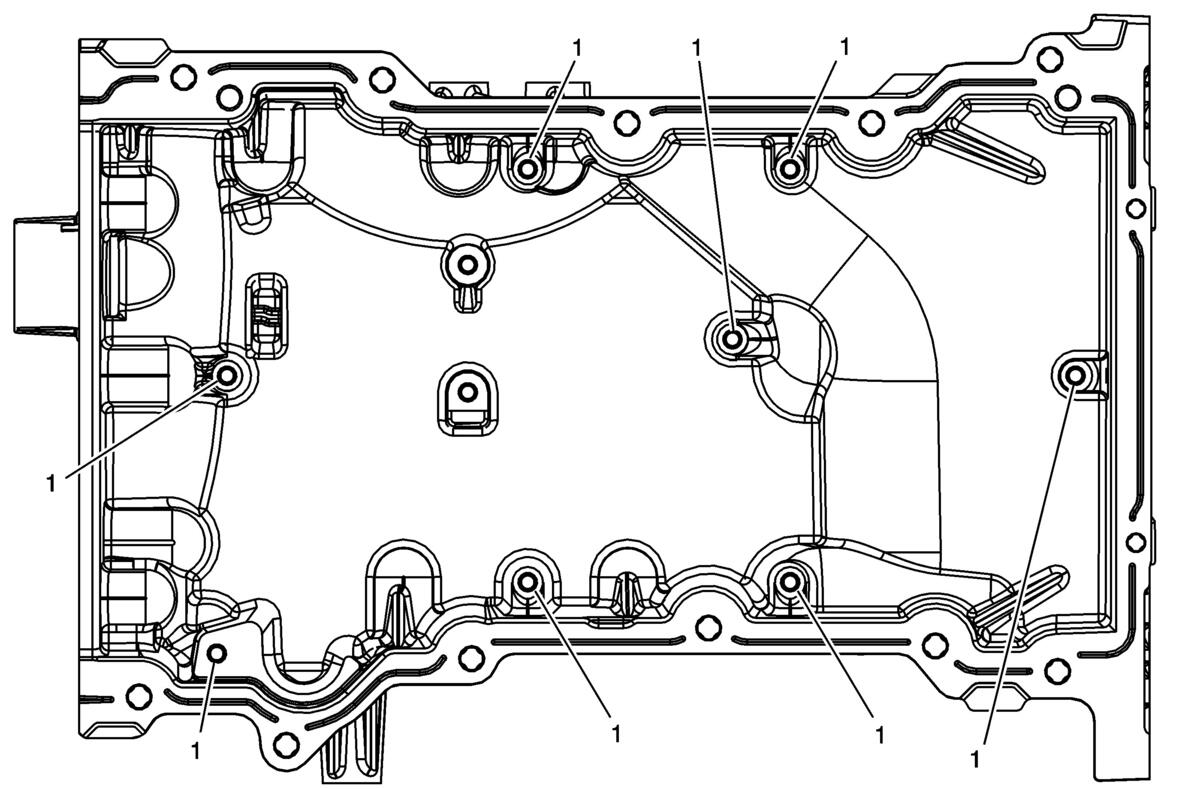

Courtesy of GENERAL MOTORS COMPANY Oil Pan Top
| Hole Location |
Thread Size |
Drill |
Counter Bore Tool |
Stop Collar |
Tap |
Driver |
Insert |
Drill Depth (Maximum) |
Tap Depth (Minimum) |
| |
|
J 42385- |
MM |
(IN) |
MM |
(IN) |
| 1 |
M6 x 1.0 |
701 |
N/A |
N/A |
203 |
204 |
205 |
28.0 |
1.1024 |
23.5 |
0.9252 |
