Lower Intake Manifold - Top

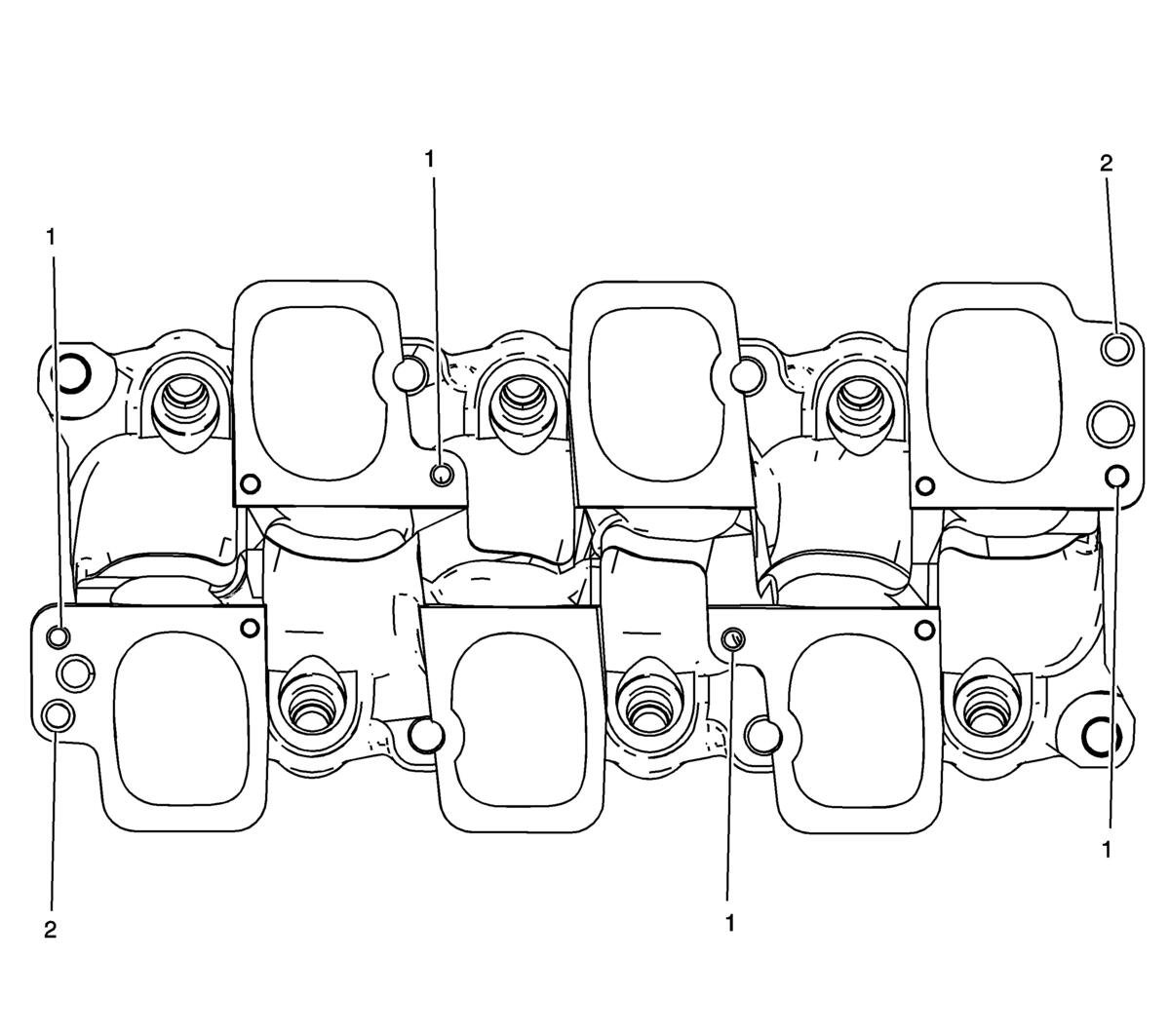

Fig 1: Lower Intake Manifold - Top
GM916915Courtesy of GENERAL MOTORS COMPANY
Lower Intake Manifold - Top

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
    J 42385- MM (IN) MM (IN)
1 M6 x 1.0 201 202 N/A 203 204 205 THRU THRU
2 M8 x 1.25 206 207 N/A 208 209 210 THRU THRU
