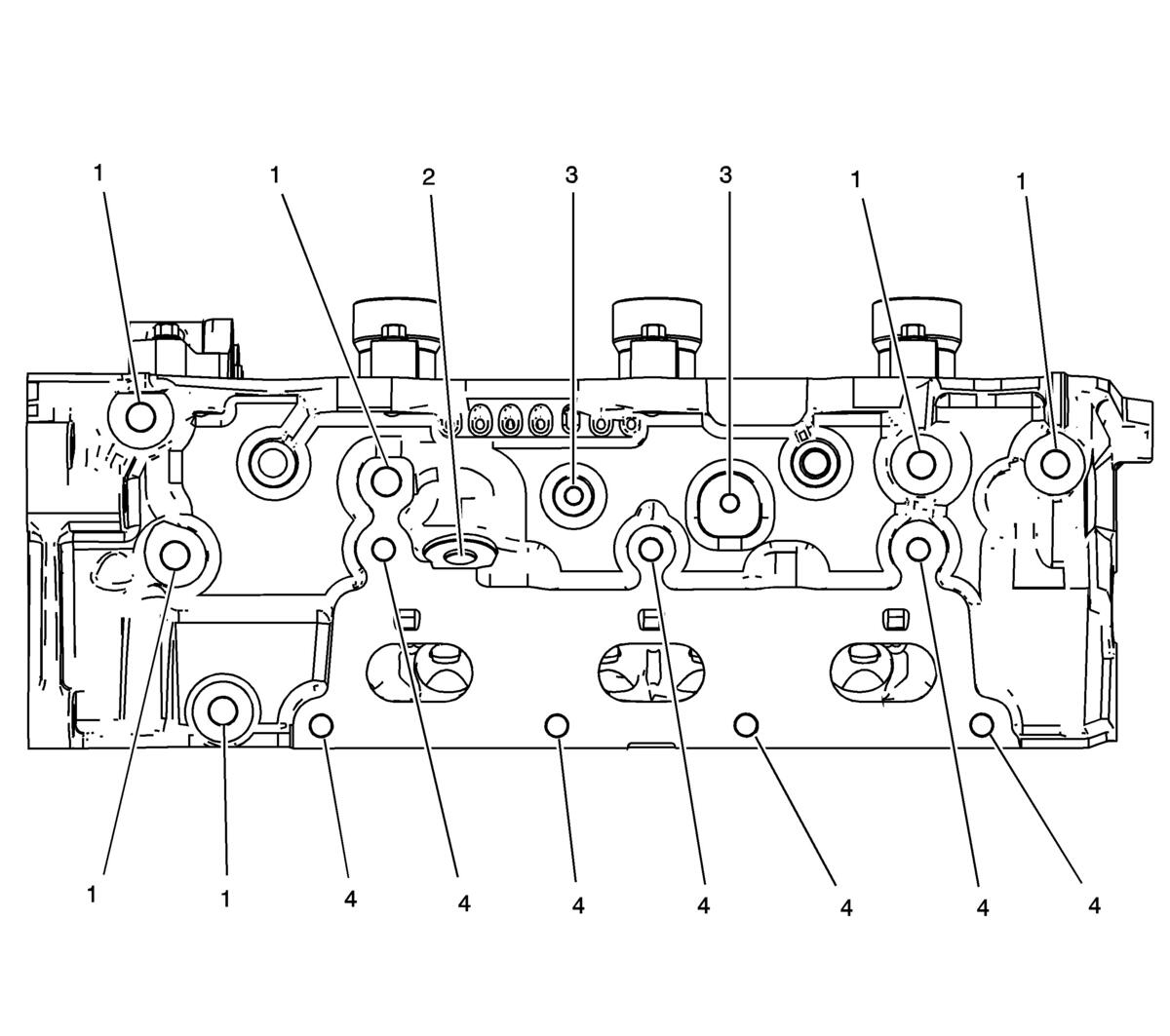

Left Cylinder Head Exhaust Face
Left Cylinder Head Exhaust Face
| Hole Location | Thread Size | Drill | Counter Bore Tool | Stop Collar | Tap | Driver | Insert | Drill Depth (Maximum) | Tap Depth (Minimum) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| J 42385- | MM | (IN) | MM | (IN) | |||||||
| 1 | M10 x 1.5 | 211 | 212 | N/A | 213 | 214 | 215 | 33.5 | 1.3189 | 27.0 | 1.0630 |
| 2 | M12 x 1.5 | 705 | 706 | N/A | 707 | 708 | 709 | 27.5 | 1.0827 | 13.0 | 0.5118 |
| 3 | M6 x 1.0 | 201 | 202 | N/A | 203 | 204 | 205 | 22.5 | 0.8858 | 18.0 | 0.0000 |
| 4 | M8 x 1.25 | 206 | 207 | N/A | 208 | 209 | 210 | 28.5 | 1.1220 | 23.0 | 0.9055 |
