Engine Block Right Deck Face

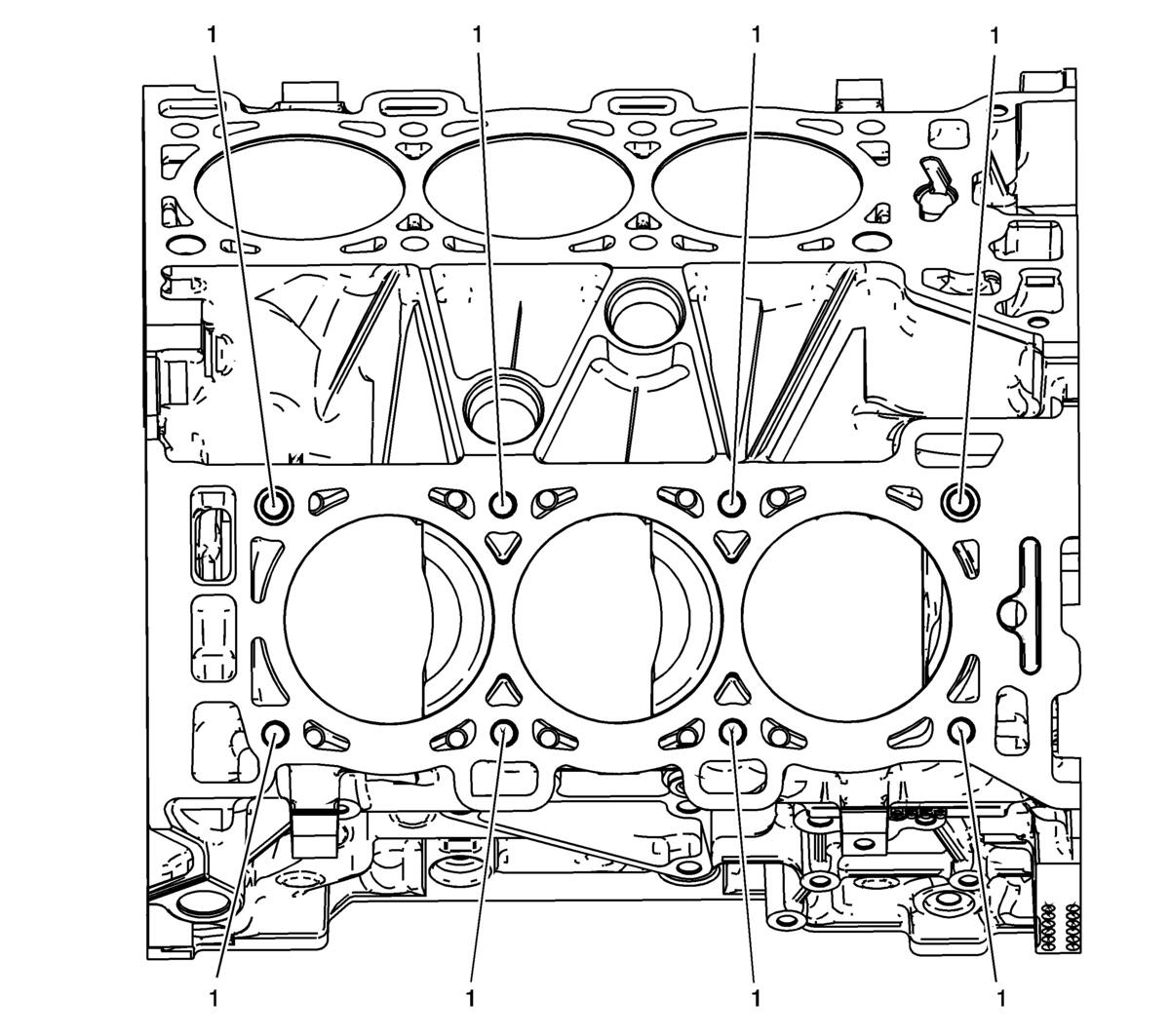

Fig 1: View Of Engine Block Right Deck Face
GM1876513Courtesy of GENERAL MOTORS COMPANY
Engine Block Right Deck Face

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
    J 42385- MM (IN) MM (IN)
1 M11 x 2.0 723 N/A N/A 724 725 108 102.5 4.0354 94.0 3.7008
