Engine Block Left Deck Face

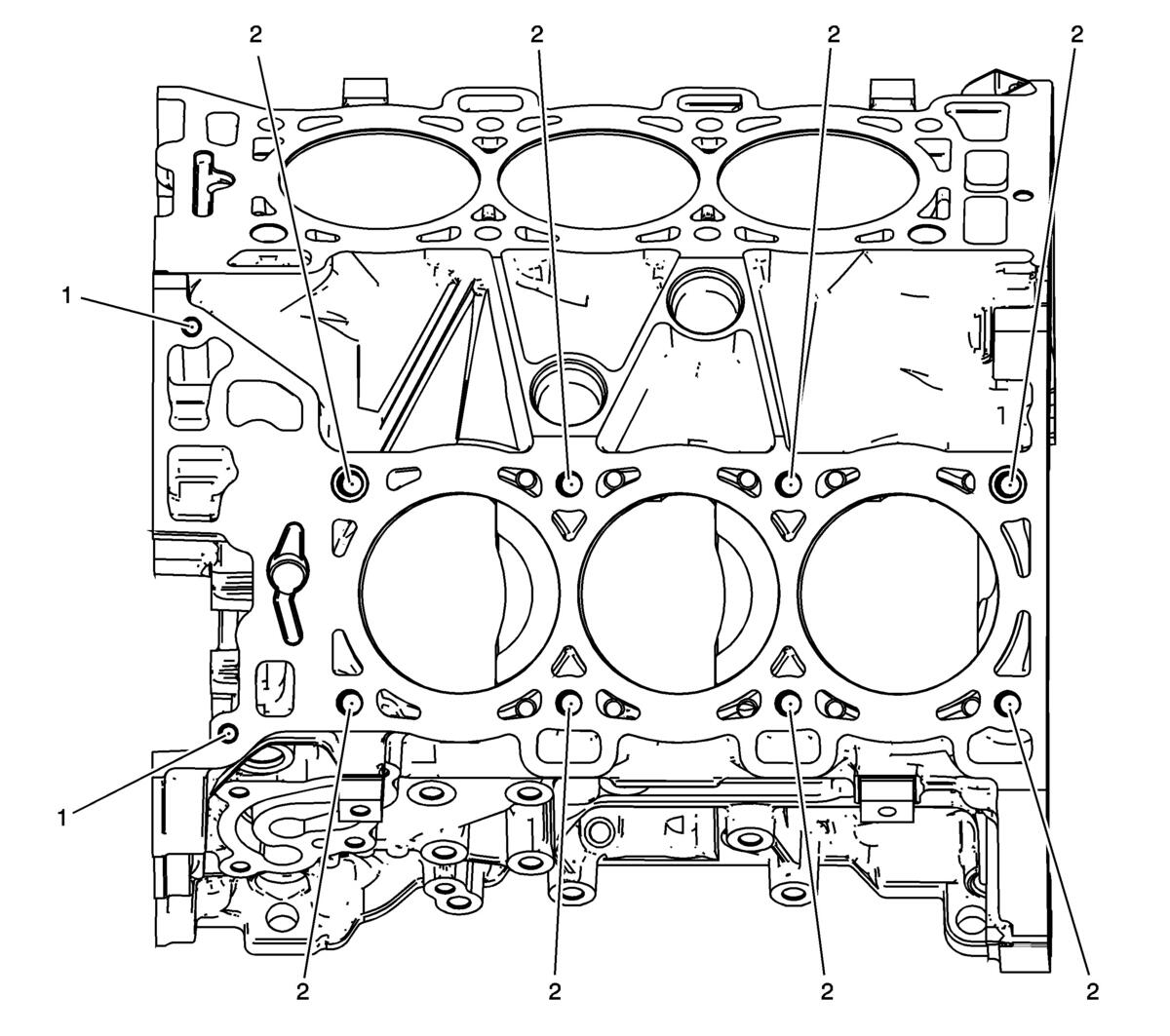

Fig 1: Engine Block Left Deck Face Component View
GM1855096Courtesy of GENERAL MOTORS COMPANY
Engine Block Left Deck Face

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
    J 42385- MM (IN) MM (IN)
1 M8 x 1.25 206 207 N/A 208 209 210 28.5 1.1220 23.0 0.9055
2 M11 x 2.0 723 N/A N/A 724 725 108 102.5 4.0354 94.0 3.7008
