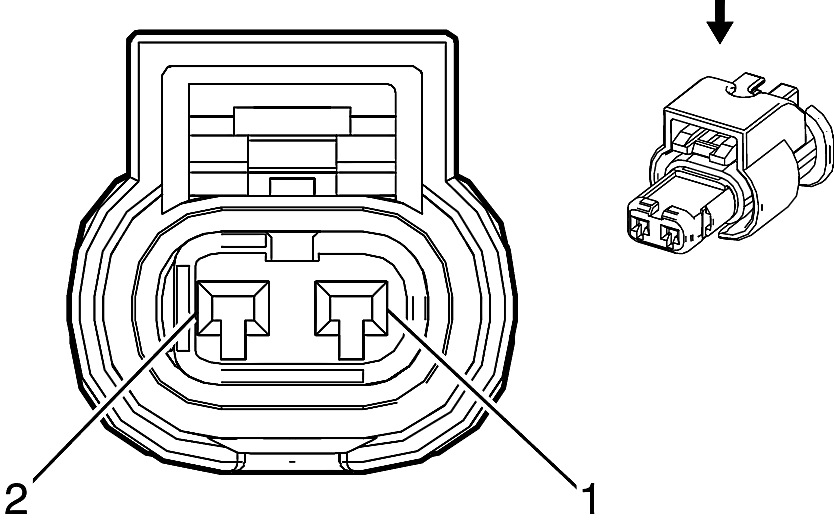

F106D Inflatable Restraint Side Impact Module - Driver
|
|
Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 13580145
- Service Connector: Service By Harness - See Part Catalog
- Description: 2-Way F 1.2 Multiple Contact Point Series, Sealed (YE with NA Inner Connector)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-16 (LT GN) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BN |
2137 |
Left Front Side Impact Module High Control |
I |
- |
| 2 |
0.5 |
YE/BK |
2138 |
Left Front Side Impact Module Low Control |
I |
- |
