Installation Procedure

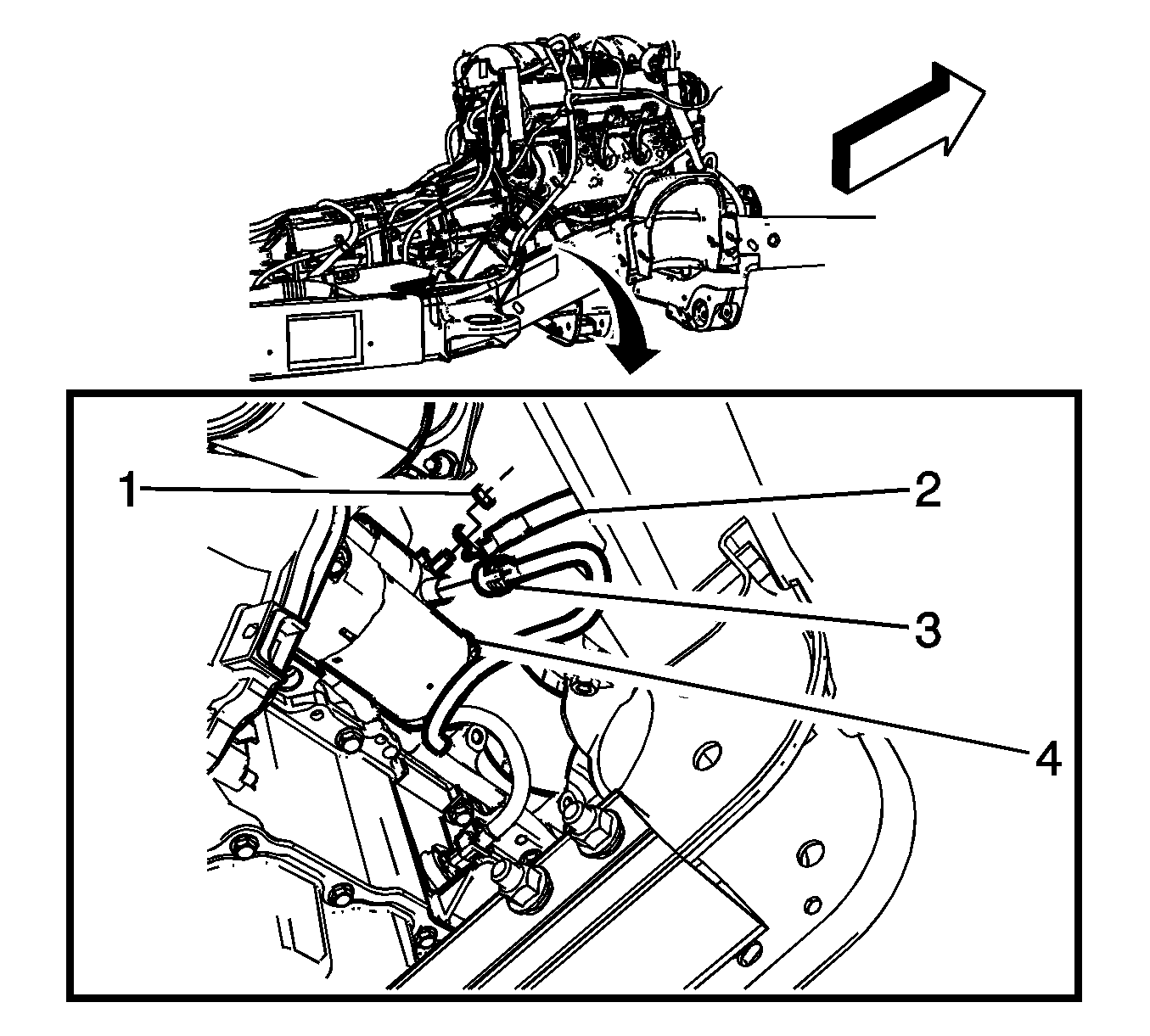

    Fig 1: Generator Battery Control Wiring Harness Cable And Starter
    GM2964365Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the fastener (1), securing the generator battery control wiring harness cable (2), to the starter (4). Tighten to 9 N.m (80 lb in).
  2. Connect the engine wiring harness connector (3) to the starter (4).

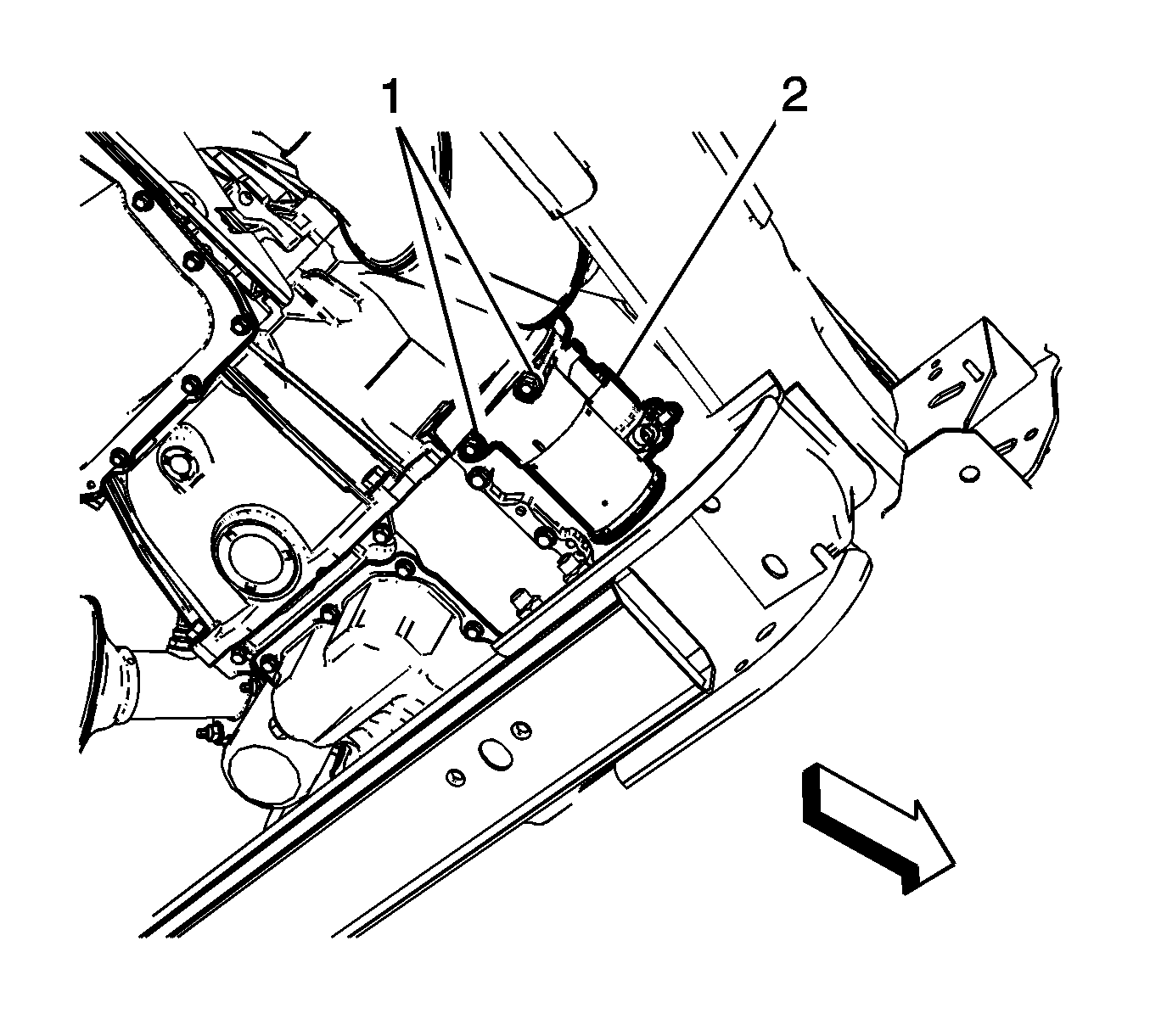

    3. Fig 2: Starter Mounting Fasteners And Starter
    GM2964364Courtesy of GENERAL MOTORS COMPANY
  3. Install the starter (2) into position and tighten the starter mounting fasteners (1) to 50 N.m (37 lb ft).

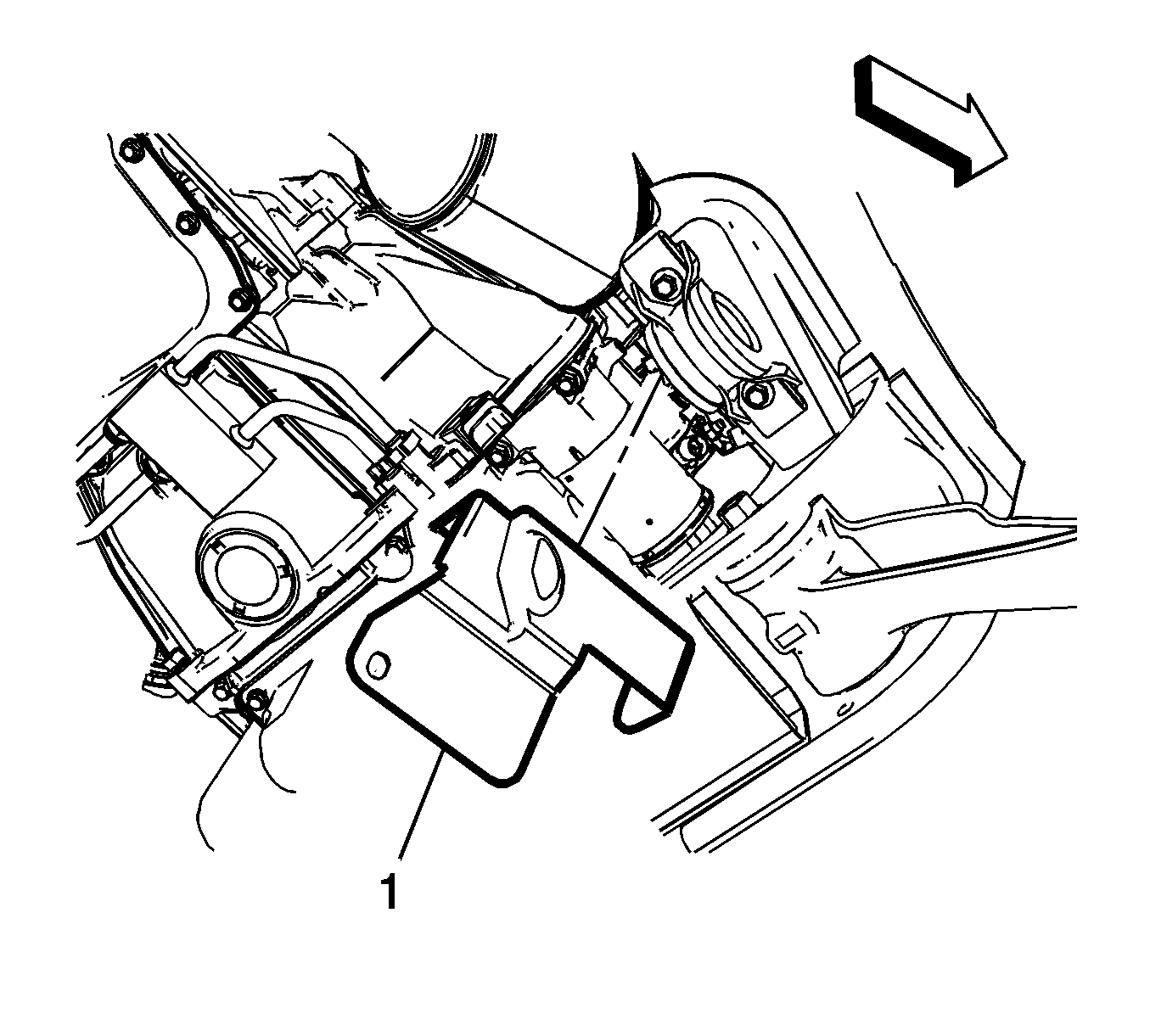

    4. Fig 3: Starter Shield And Starter
    GM2964366Courtesy of GENERAL MOTORS COMPANY
  4. Position the starter shield (1) above the starter.

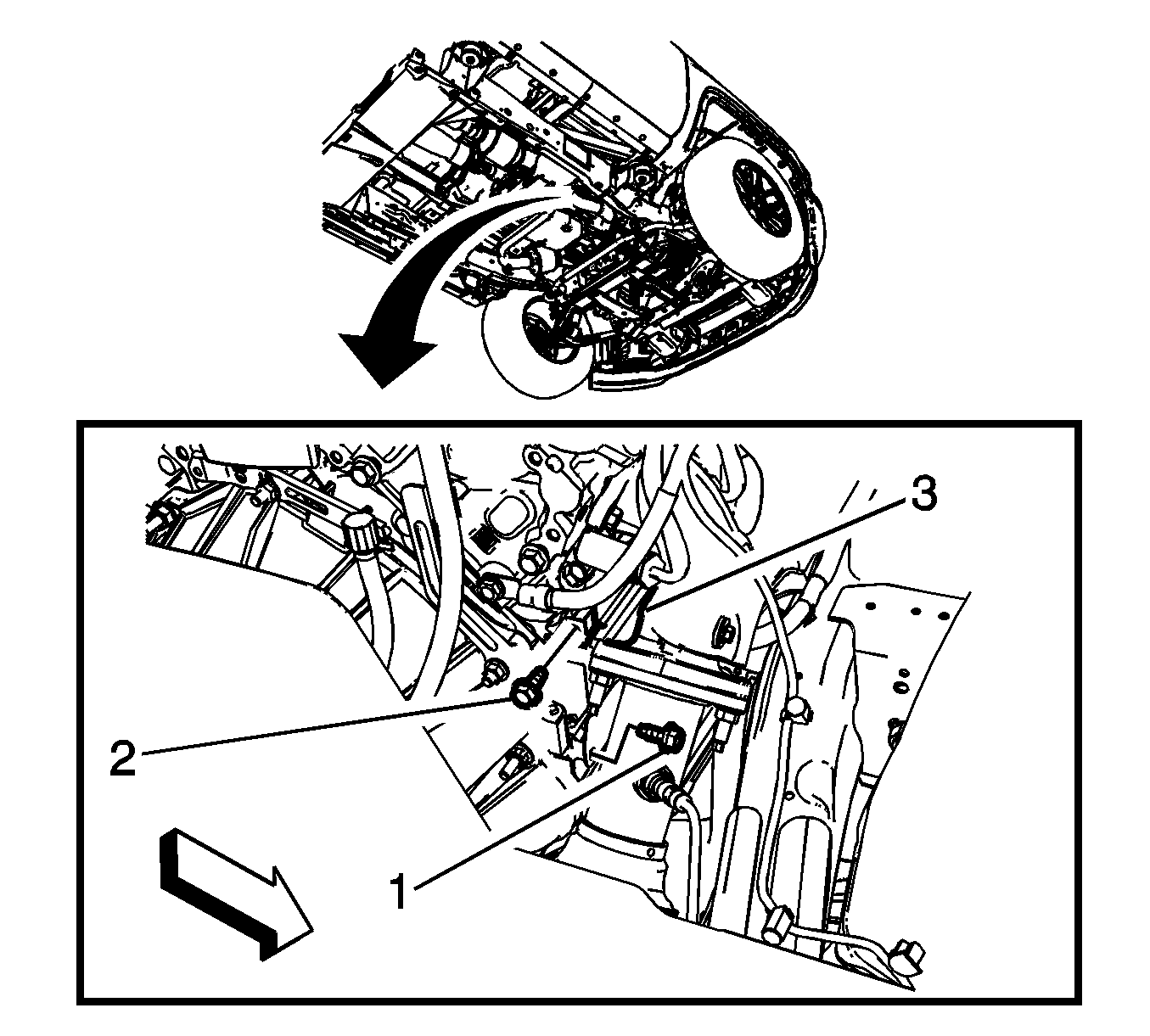

    5. Fig 4: Lower Fastener And Upper Fastener
    GM2964367Courtesy of GENERAL MOTORS COMPANY
  5. Install the starter shield (3) into position and tighten the lower starter shield fastener (1) to 9 N.m (80 lb in).
  6. Install the upper starter shield fastener (2) and tighten to 22 N.m (16 lb ft).
  7. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Dual Battery) Battery Negative Cable Disconnection and Connection (Single Battery) .
