Battery Tray Replacement

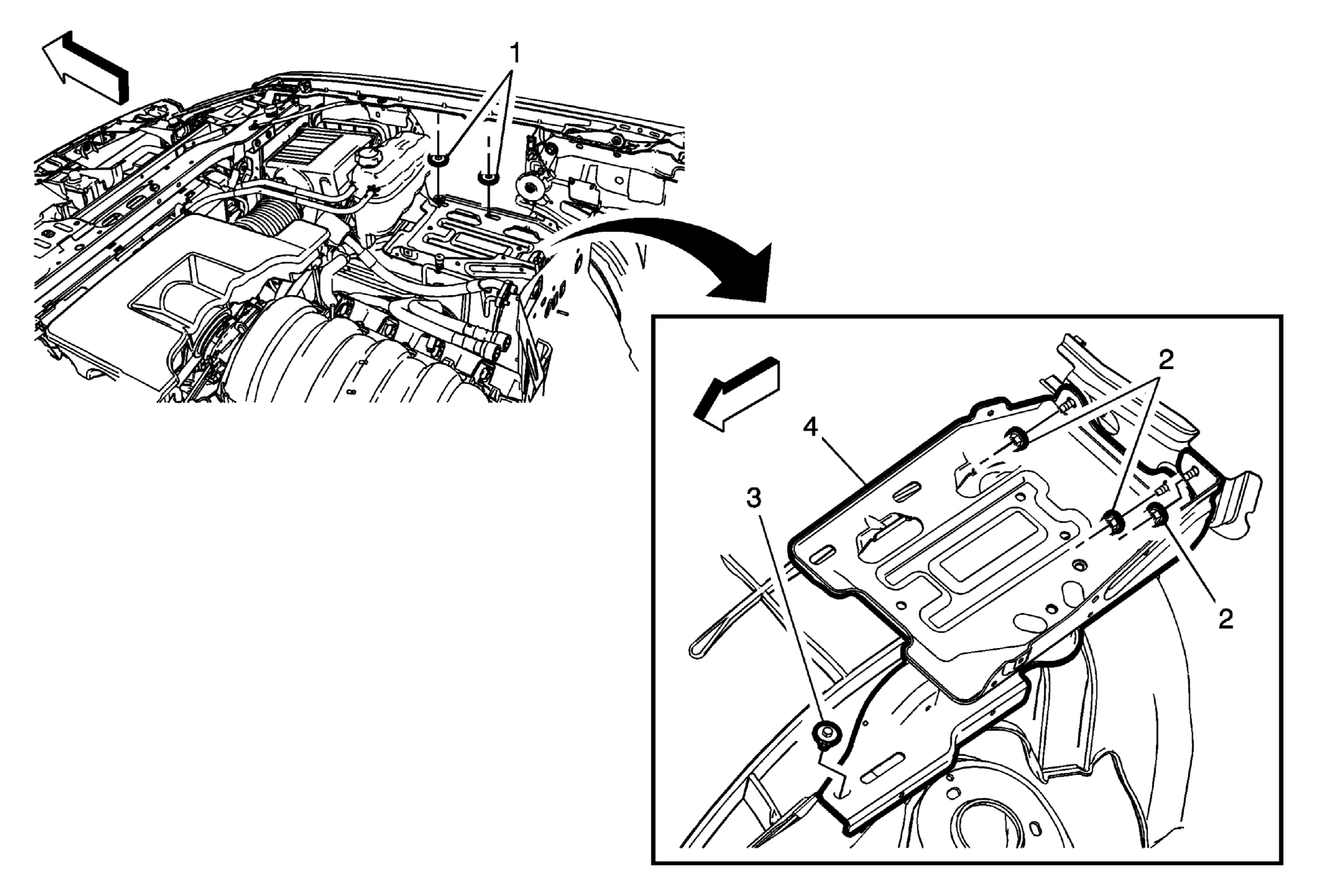

Fig 1: Battery Tray

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the battery. Refer to Battery Replacement (L83, L86) . Reposition the radiator surge tank mounting bracket. Refer to Radiator Surge Tank Replacement (L83 L86) . Disconnect any harness retainers to the battery tray.
1	Battery Tray Nut CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Battery Tray Nut Tighten 22 N.m (16 lb ft)
3	Battery Tray Bolt Tighten 9 N.m (80 lb in)
4	Battery Tray
