Front Side Door Window Regulator Replacement

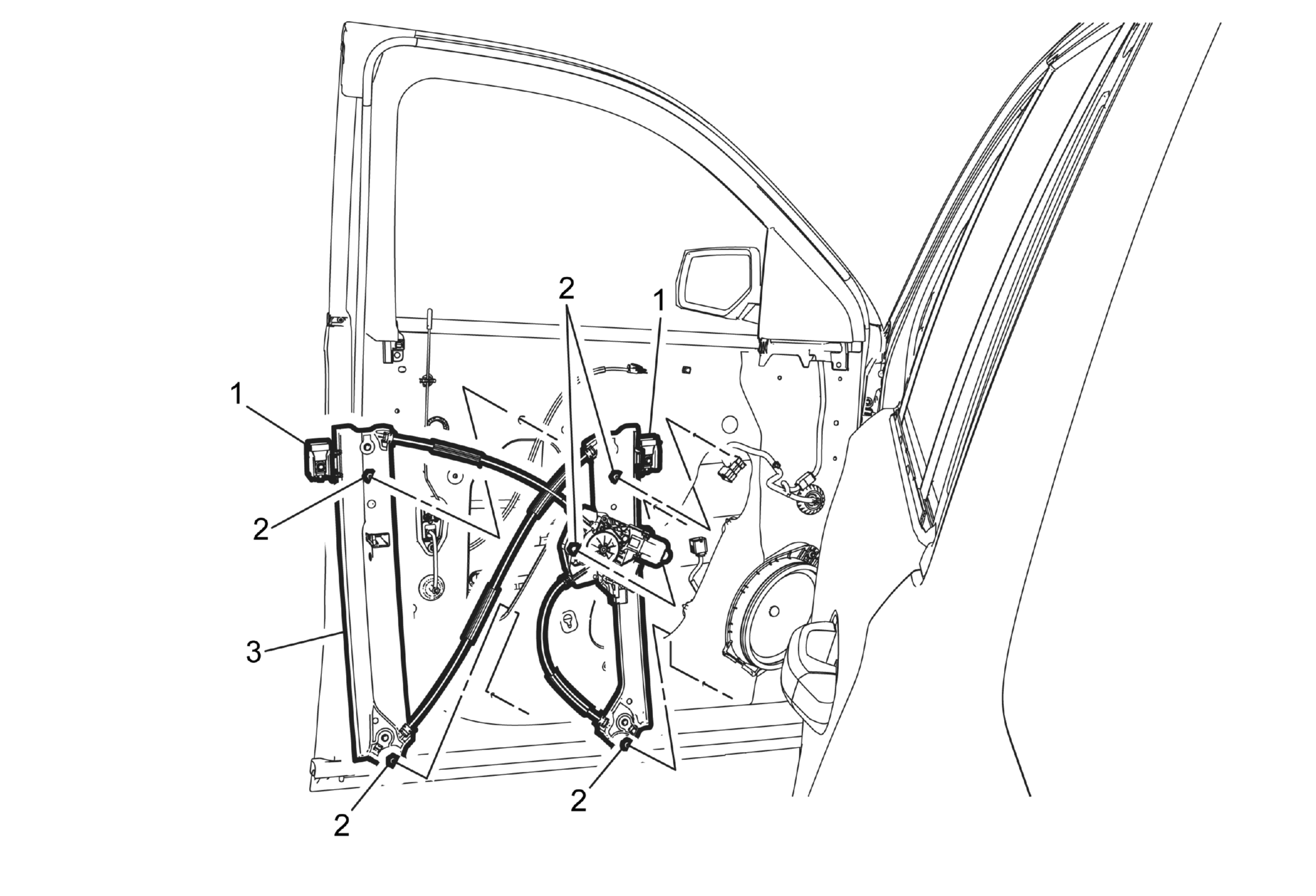

Fig 1: Front Side Door Window Regulator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open the door to the full open position. Remove the front side door pull handle bracket. Refer to Front Side Door Pull Handle Bracket Replacement . Remove the front side door water deflector.
1	Front Side Door Window Regulator Guide Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Tape the window to the door frame to prevent it from moving. Remove the rubber plug to gain access to the window regulator guide bolt. Loosen the two bolts that attach the window to the window regulator. Disconnect the front side door window regulator electrical connector. Tighten 11 N.m (97 lb in)
2	Front Side Door Window Regulator Nut (Qty: 5) Tighten 12 N.m (108 lb in)
3	Front Side Door Window Regulator Procedure Transfer the power window motor and program after installing in the vehicle. Refer to Window Motor Programming - Express Function . NOTE: Ensure the window regulator cables are routed the same way as removed to prevent damage to components. Inspect the door window for proper operation before installing the door trim.
