Installation Procedure

  1. Position a NEW steering gear boot inner clamp on the steering gear boot.
  2. Apply a small amount of grease on the steering linkage inner tie rod and the steering gear housing where the steering gear boot sits.

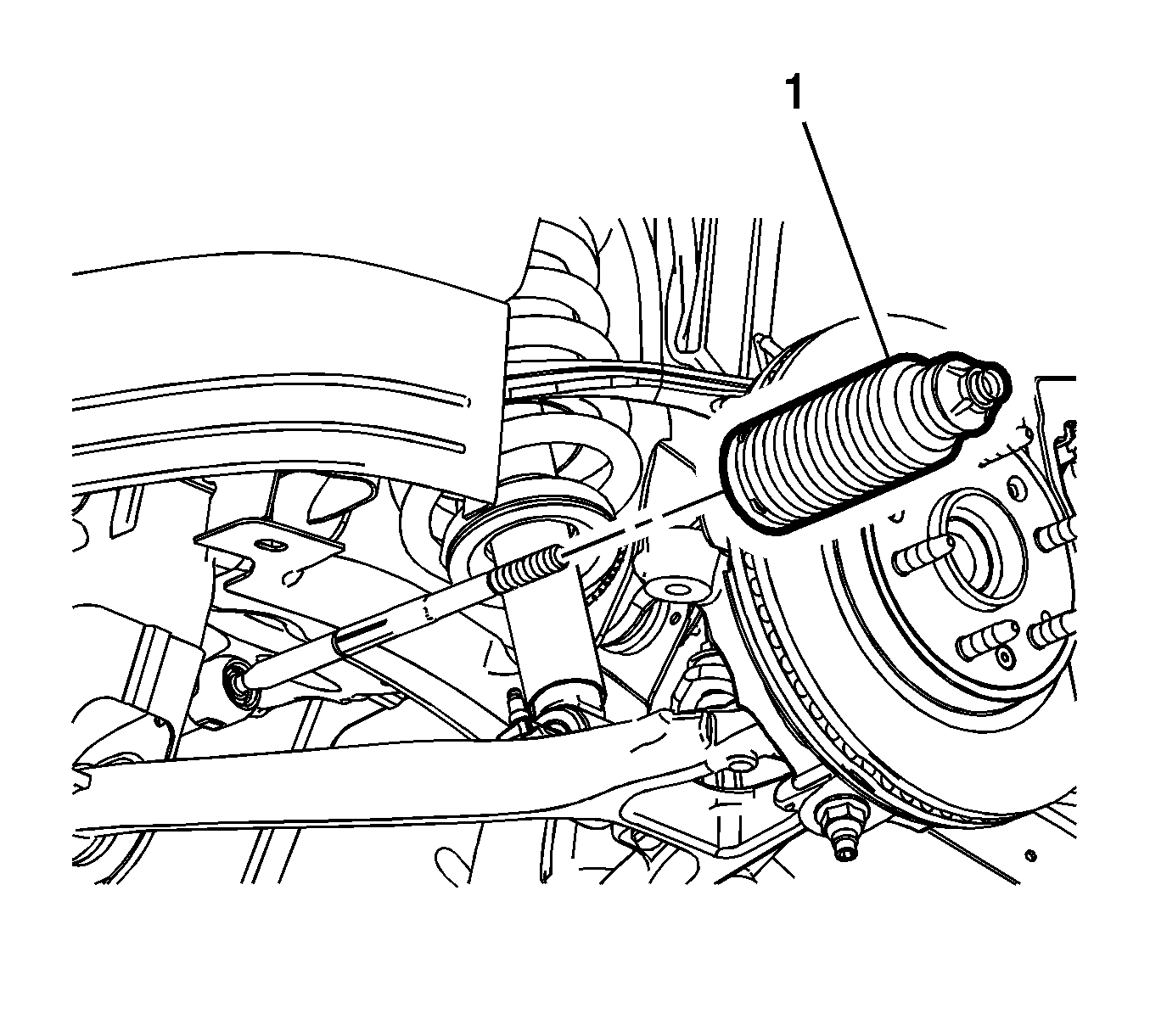

    3. Fig 1: Steering Gear Boot And Steering Gear
    GM3270198Courtesy of GENERAL MOTORS COMPANY
  3. Install Steering Gear Boot (1).

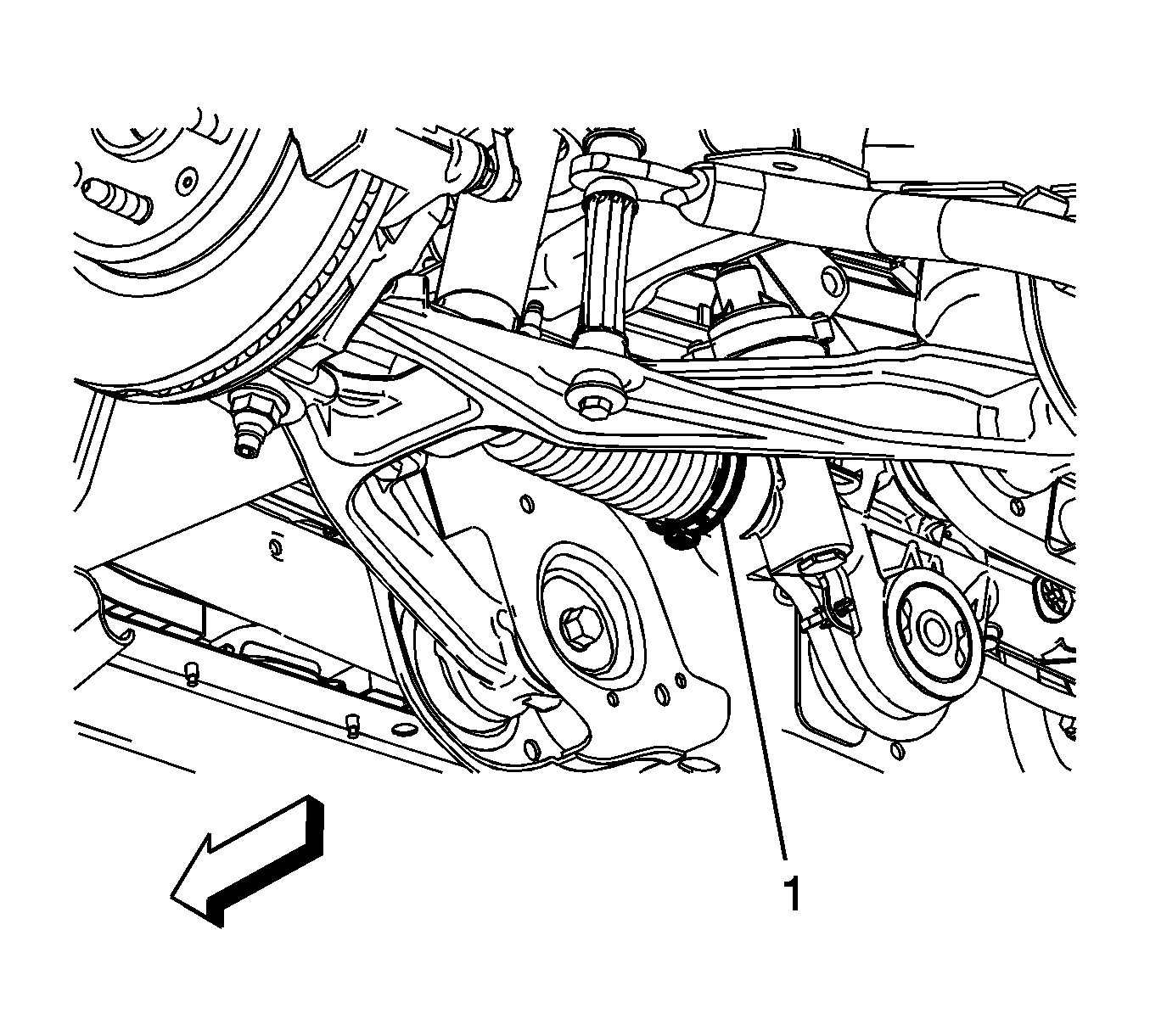

    4. Fig 2: Steering Gear Boot Inner Clamp And Steering Gear Boot
    GM3270197Courtesy of GENERAL MOTORS COMPANY
  4. Use the CH-22610  pliers to tighten the steering gear boot inner clamp (1).

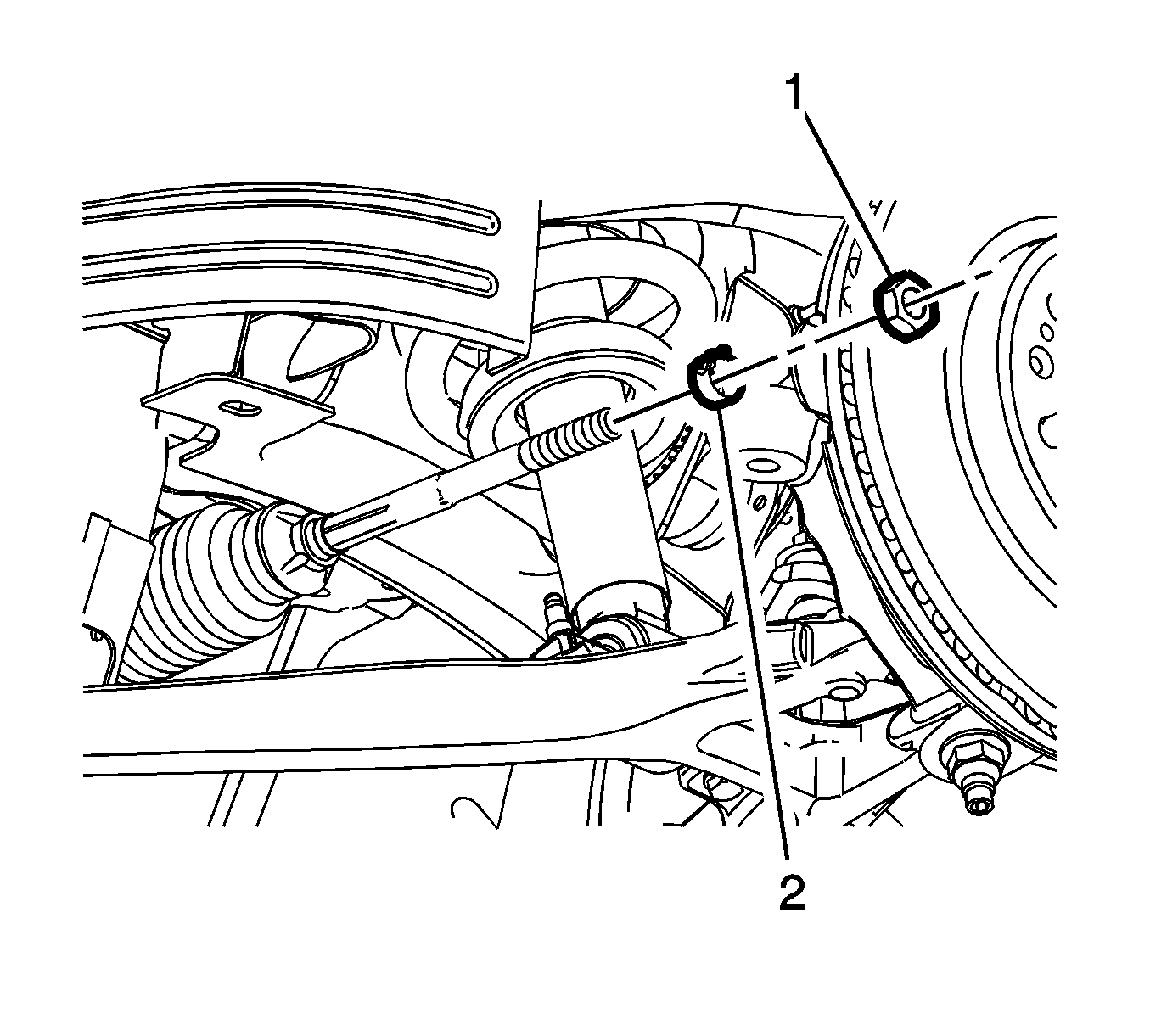

    5. Fig 3: Steering Linkage Inner Tie Rod Nut
    GM3270161Courtesy of GENERAL MOTORS COMPANY
  5. Install Steering Gear Boot Outer Clamp (2).
  6. Install Steering Linkage Inner Tie Rod Nut (1)
  7. Install Steering Linkage Outer Tie Rod. Steering Linkage Outer Tie Rod Replacement
  8. Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
