Primary Input Speed Sensor Replacement

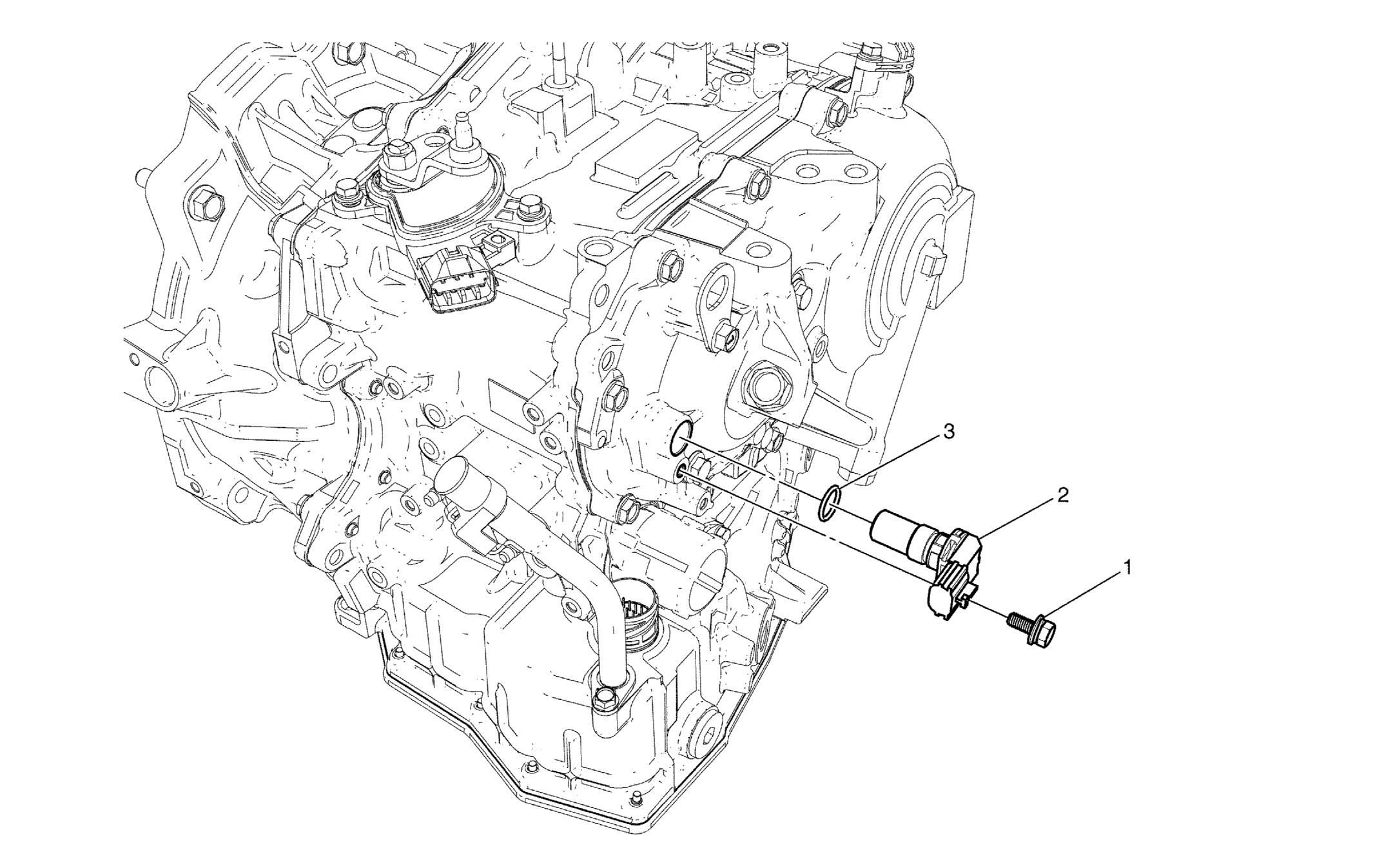

Fig 1: Primary Input Speed Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the left front compartment splash shield. Refer to Front Compartment Splash Shield Replacement .
1	Primary Input Speed Sensor Bolt (Qty: 1) CAUTION: Refer to Fastener Caution . Procedure Disconnect the primary input speed sensor electrical connector. Tighten 6 N.m (53 lb in)
2	Primary Input Speed Sensor
3	Primary Input Speed Sensor O-Ring Seal NOTE: Do not reuse the primary input speed sensor O-ring seal.
