Power, Ground, Data Communications and Subsystem References (1 of 5)

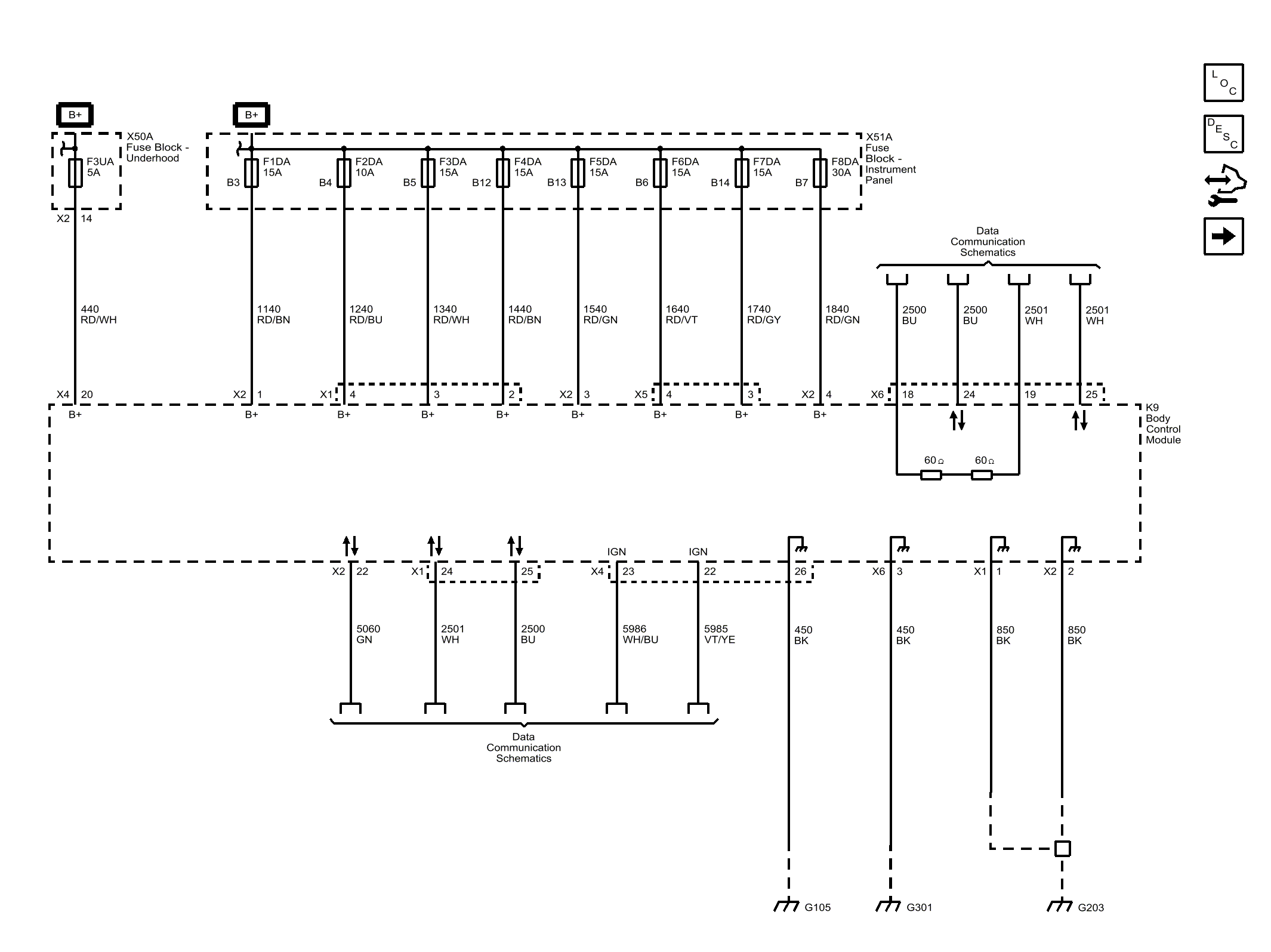

Fig 1: Power, Ground, Data Communications and Subsystem References (1 Of 5)

GM3680752

Courtesy of GENERAL MOTORS COMPANY
