Installation Procedure

  1. Install the 4 exhaust rear muffler heat shield retaining nuts and tighten to 1.2 N.m (11 lb in).

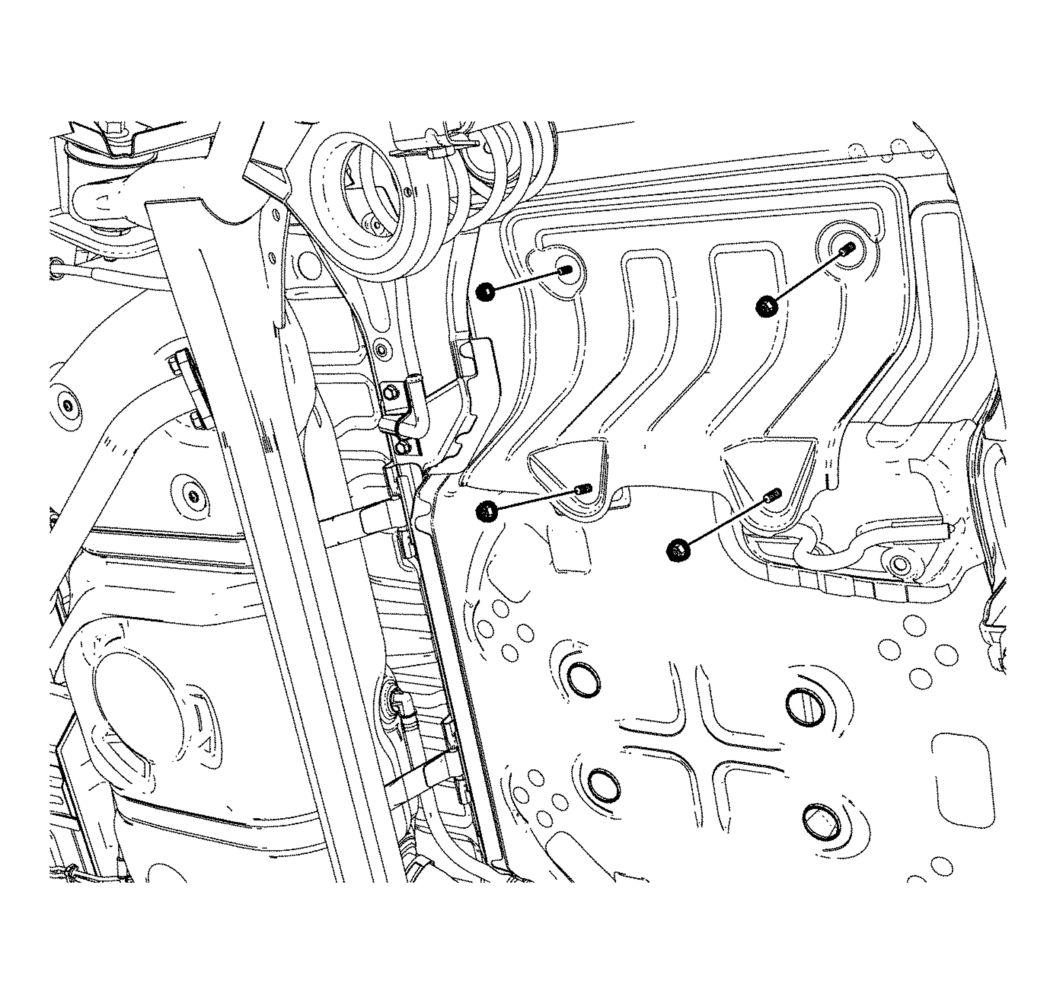

    Fig 1: Exhaust Rear Muffler Heat Shield Retaining Nuts
    GM2308896Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
  2. Install the exhaust rear muffler. Refer to Exhaust Muffler Replacement .
    Fig 2: Exhaust Rear Muffler Assembly
    GM2308886Courtesy of GENERAL MOTORS COMPANY
