Exhaust Muffler Replacement - Front

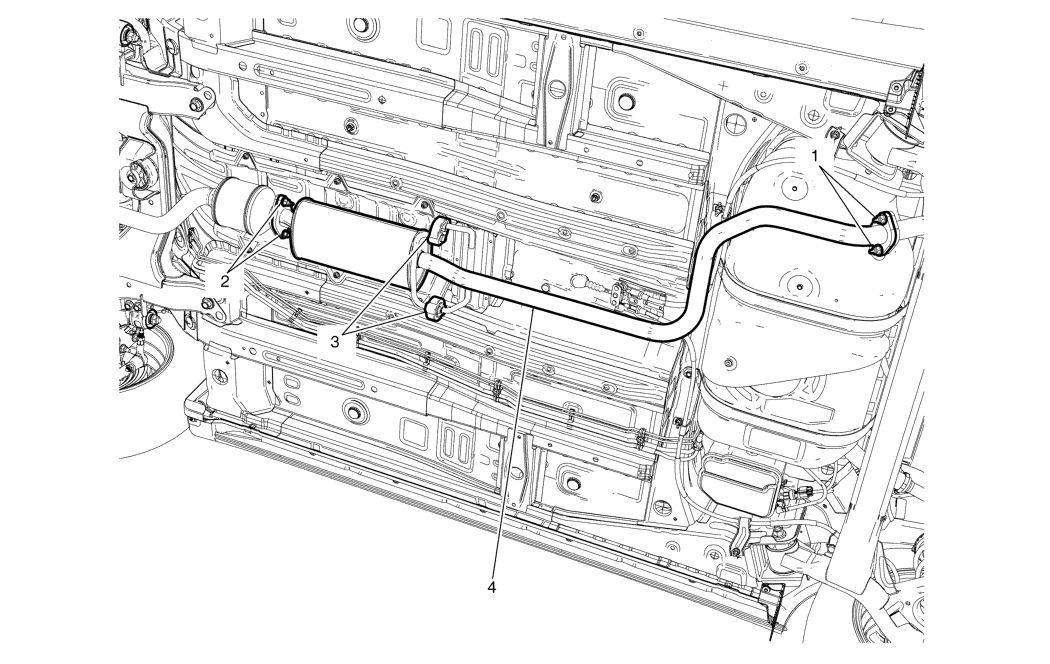

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Exhaust Front Muffler to Exhaust Muffler Nut (Qty: 2)
CAUTION:
Refer to Component Fastener Tightening Caution
. Tighten 46 N.m (34 lb ft) |
| 2 | Exhaust Front Pipe to Exhaust Muffler Nut (Qty: 2)
CAUTION:
Refer to Component Fastener Tightening Caution
. Tighten 46 N.m (34 lb ft) |
| 3 | Exhaust Muffler Hanger (Qty: 2) |
| 4 | Exhaust Muffler (Front) |
