Inside Rearview Mirror Replacement

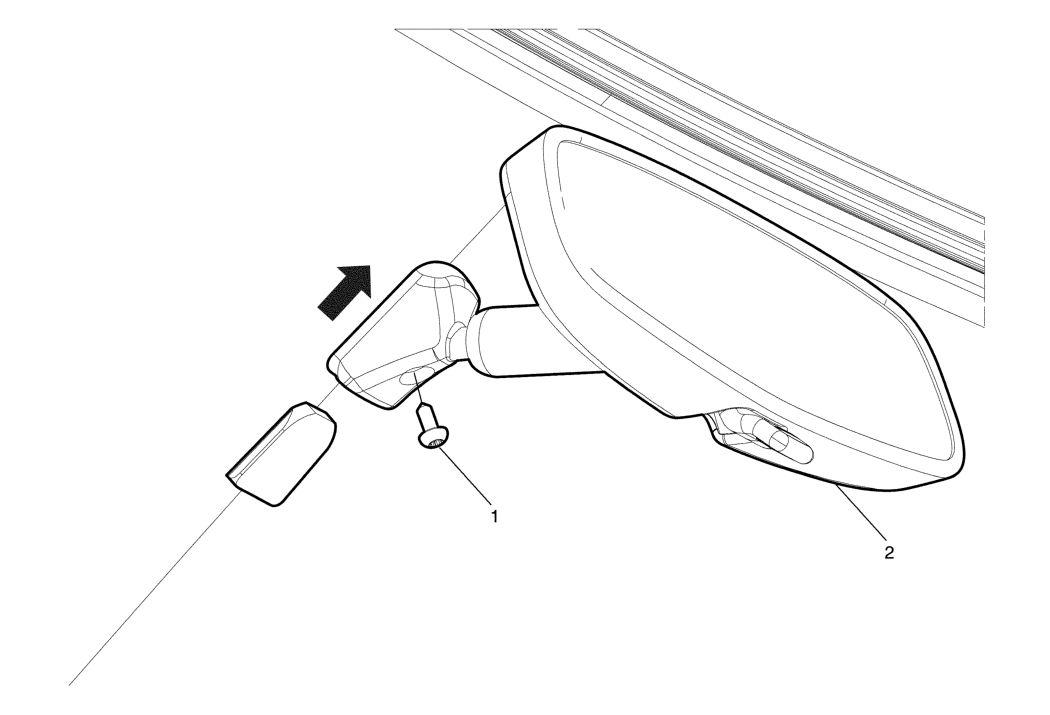

| Callout | Component Name |
|---|---|
| Preliminary Procedure Adjust the mirror to the full upward position. |
|
| 1 | Inside Rearview Mirror Screw
CAUTION:
Refer to Fastener Caution
. Tighten 1.8 N.m (16 lb in) |
| 2 | Inside Rearview Mirror TIP: Slide the mirror in an upward motion in order to remove. |
