Steering Wheel Secondary/Configurable Control

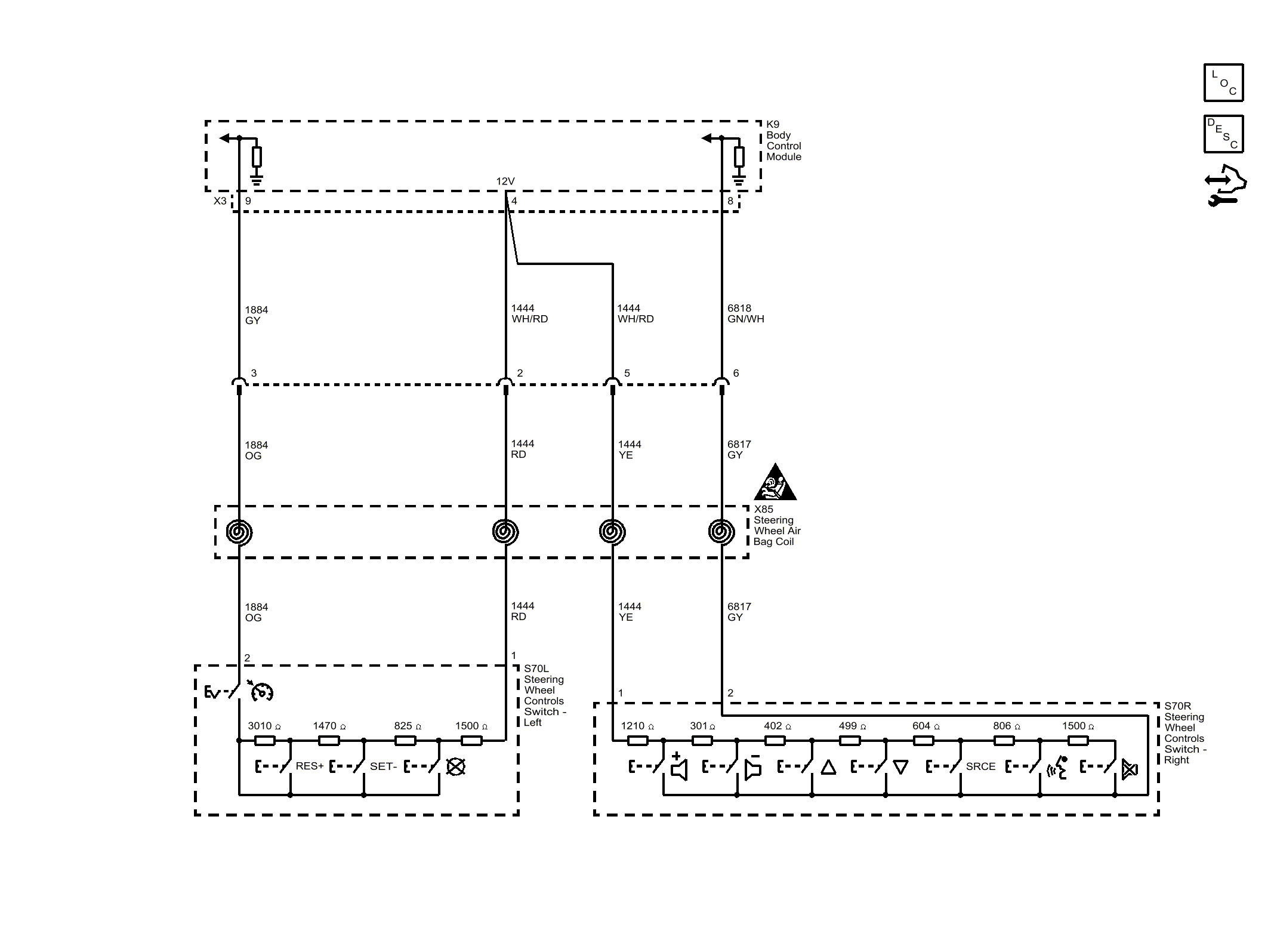

Fig 1: Steering Wheel Secondary/Configurable Control

GM3680684

Courtesy of GENERAL MOTORS COMPANY
