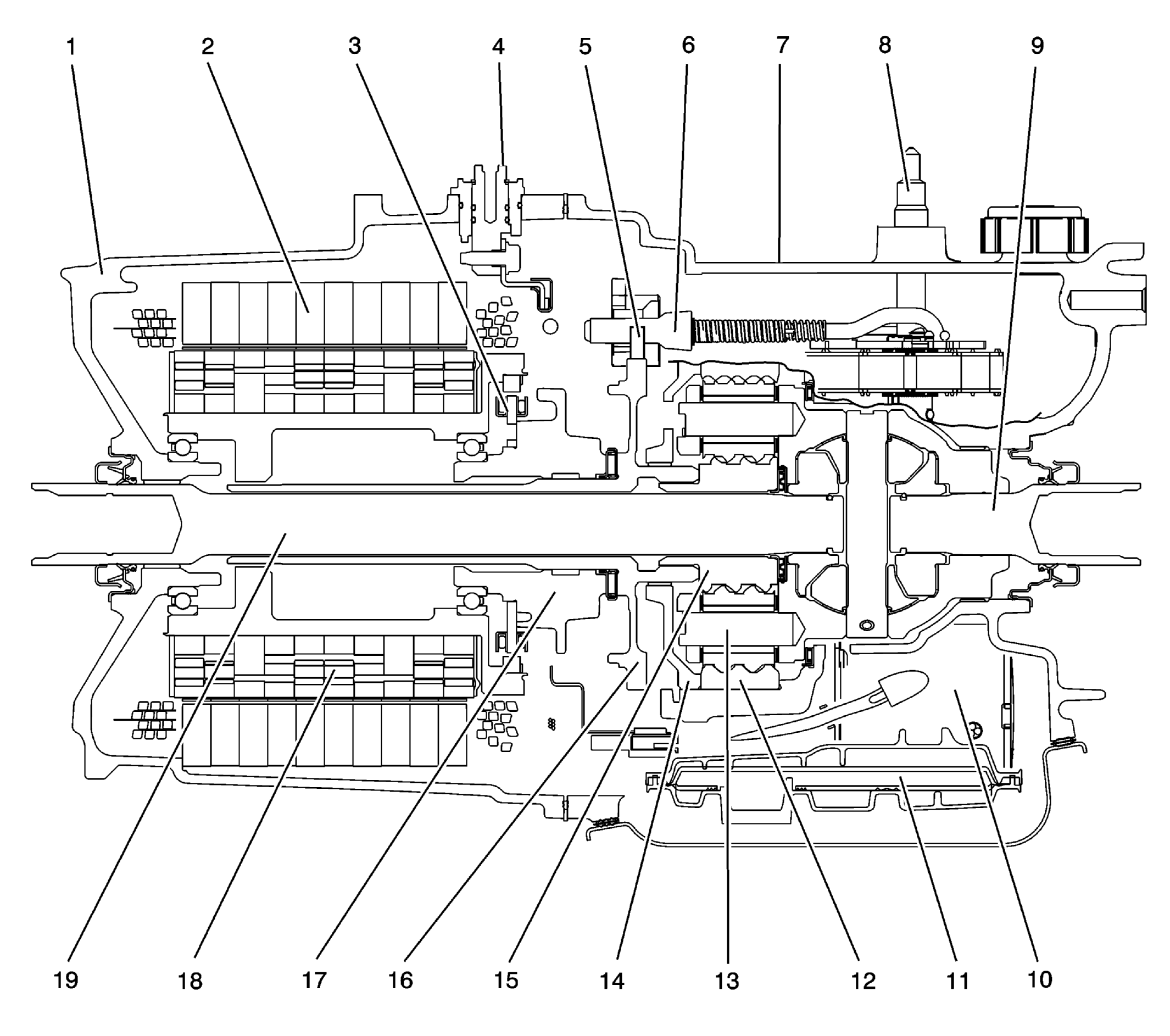

| 1 |
Drive Motor Housing |
| 2 |
Drive Motor Stator Assembly |
| 3 |
Drive Motor Position Sensor Assembly |
| 4 |
Drive Motor Power Inverter Module Connector Terminal |
| 5 |
Park Pawl |
| 6 |
Park Pawl Actuator Assembly |
| 7 |
A/Trans Case |
| 8 |
Manual Shift Shaft |
| 9 |
Output Shaft Assembly (RHS) |
| 10 |
A/Trans Fluid Pump Assembly |
| 11 |
A/Trans Fluid Filter Assembly |
| 12 |
Front Differential Ring Gear |
| 13 |
Front Differential Pinion Gear Shaft Pin |
| 14 |
Park Gear Hub Assembly |
| 15 |
Front Differential Carrier Sun Gear |
| 16 |
Main Shaft |
| 17 |
Center Support Assembly |
| 18 |
Drive Motor Rotor Assembly |
| 19 |
Output Shaft Assembly (LHS) |
