Installation Procedure

  1. Install the high voltage cable (2) into position on the frame and tighten the retainer fasteners (1) to 9 N.m (80 lb in).

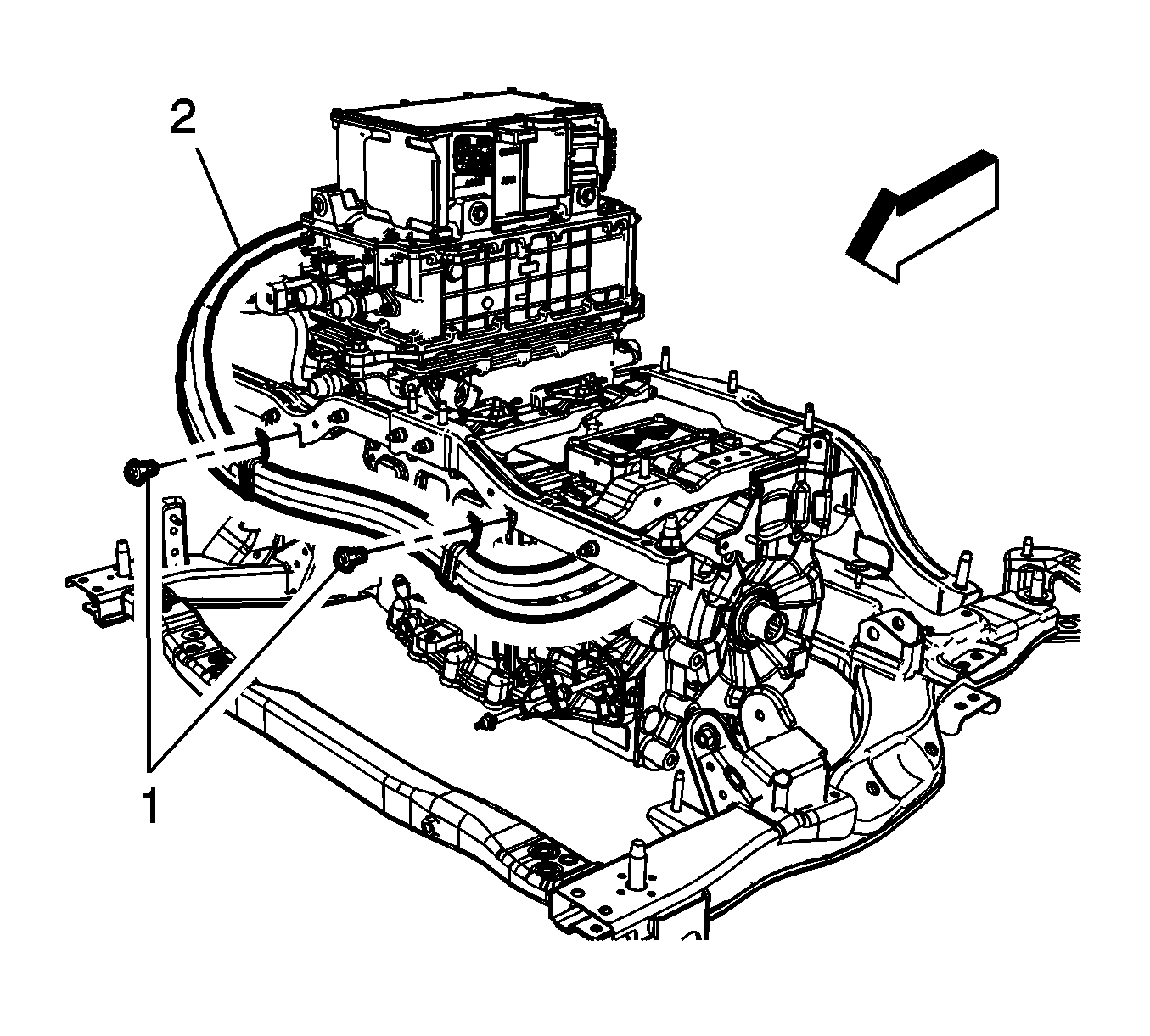

    Fig 1: High Voltage Cable And Retainer Fasteners
    GM3604552Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
  2. Install the high voltage terminal fasteners (3) and tighten to 9 N.m (80 lb in).

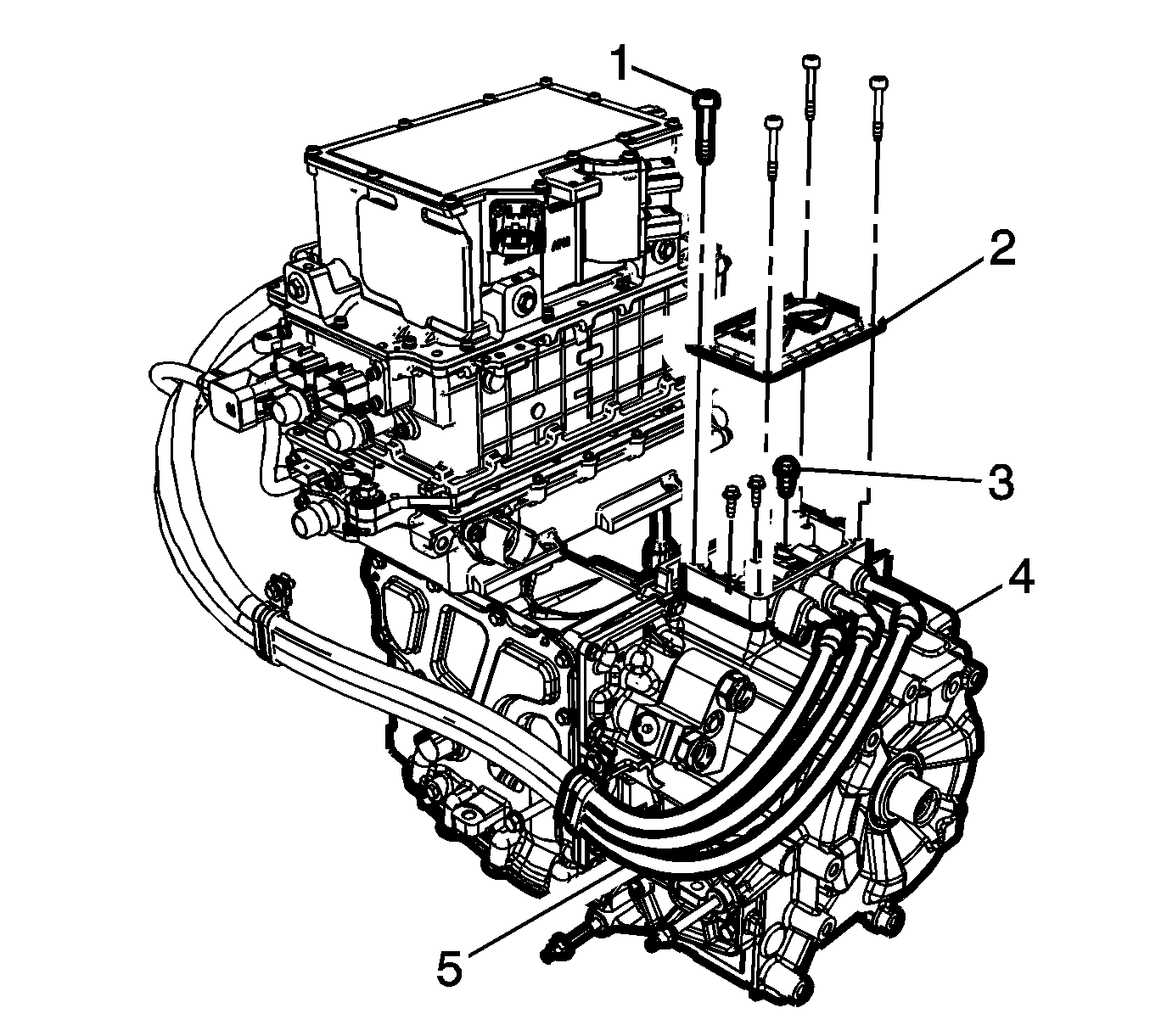

    Fig 2: High Voltage Cover Fasteners And High Voltage Connector Cover
    GM3604549Courtesy of GENERAL MOTORS COMPANY
    NOTE: Replace the connector to transmission seal with a NEW seal.
  3. Install the high voltage cable cover (2) and tighten the cover fasteners (1) to 9 N.m (80 lb in).
  4. Install the high voltage connector (2) to the drive motor generator power inverter module and tighten the fastener (1) to 9 N.m (80 lb in).

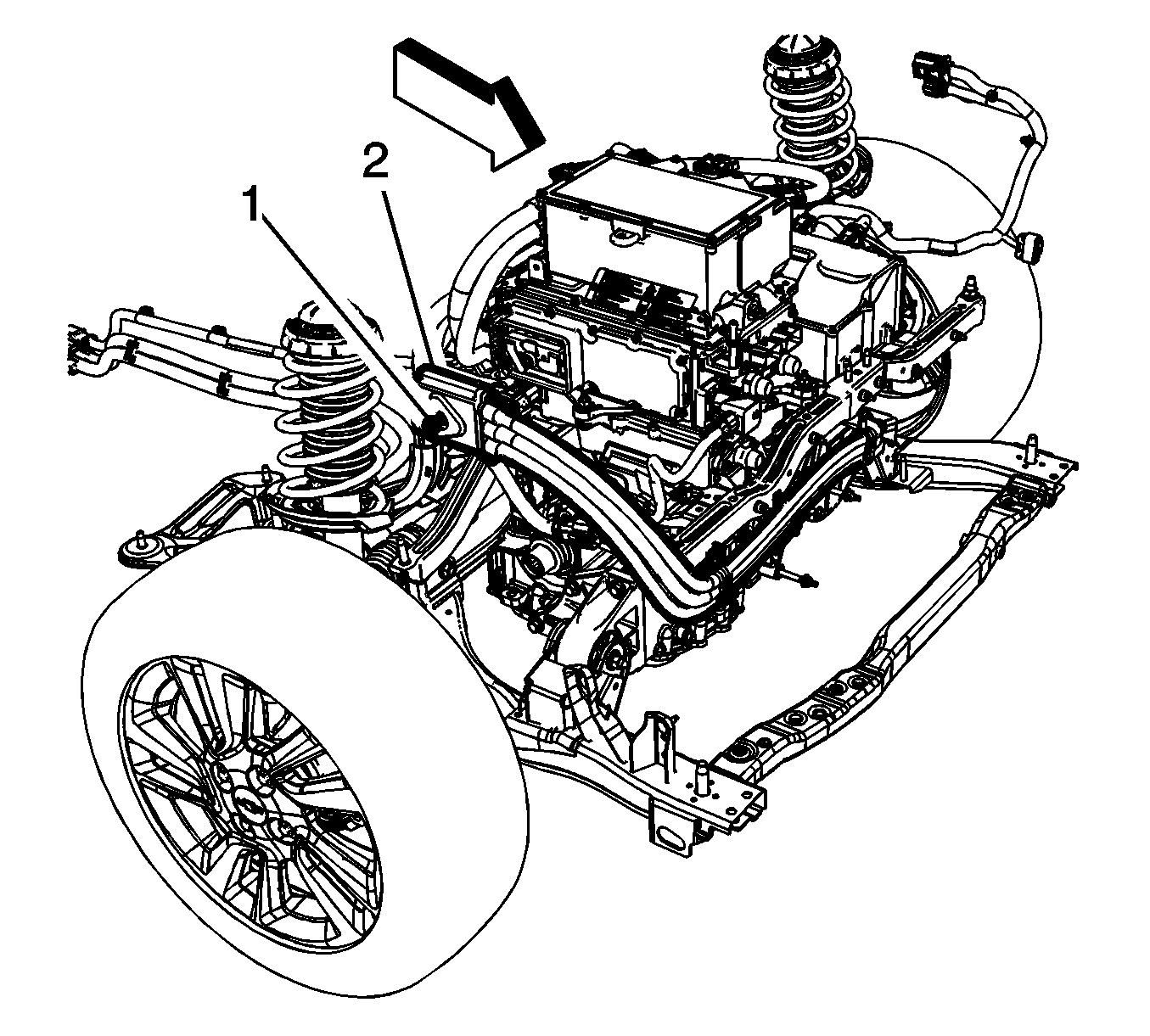

    Fig 3: High Voltage Connector Fastener And Connector
    GM3604554Courtesy of GENERAL MOTORS COMPANY
  5. Install the drive motor battery charger. Refer to Drive Motor Battery Charger Replacement .
  6. Install the high voltage disconnect circuit connector cover. Refer to High Voltage Disconnect Circuit Connector Cover Replacement .
