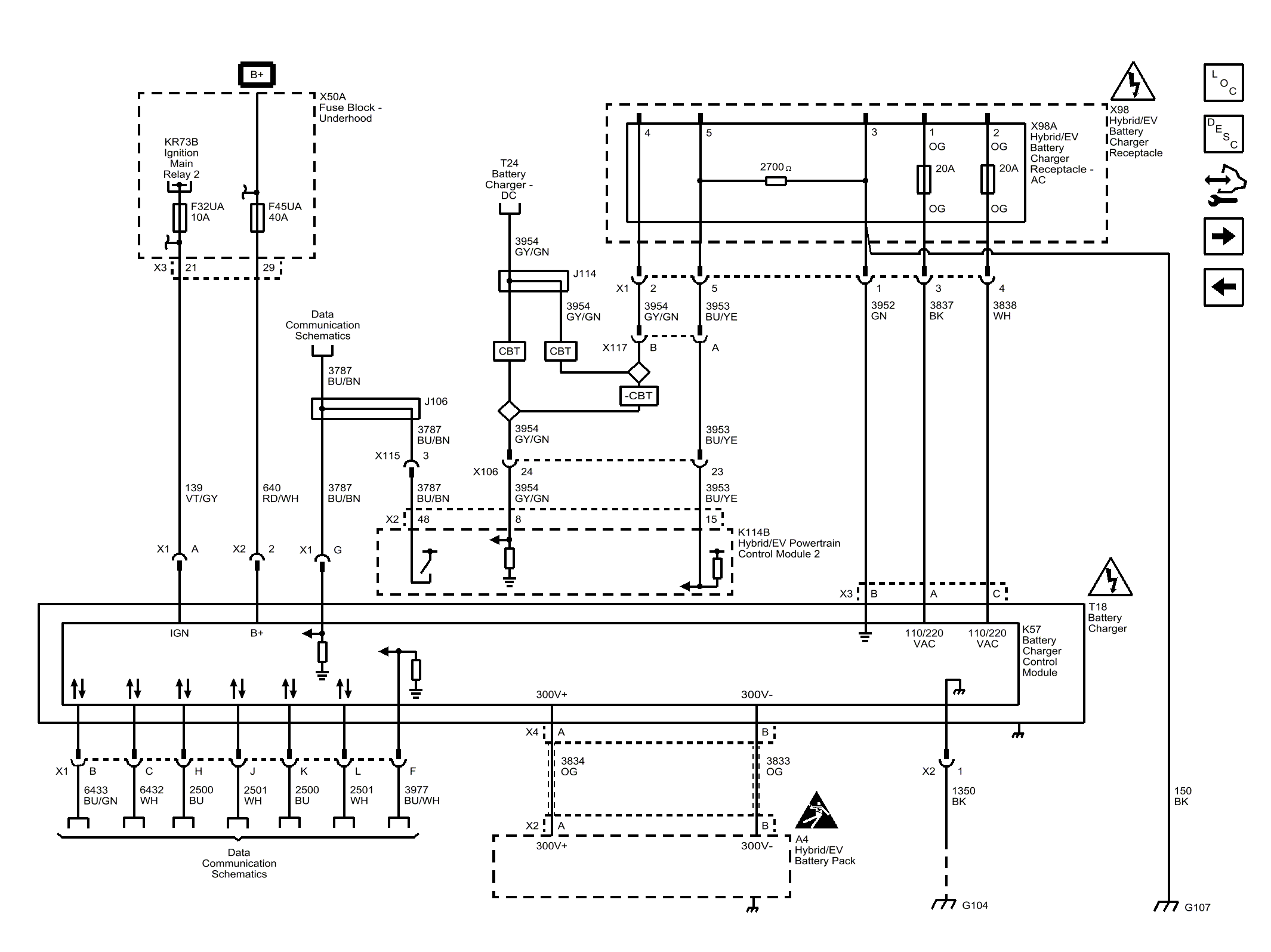

Home >> Chevrolet >> 2015 >> Spark EV >> Repair and Diagnosis >> Electrical >> Body Electrical >> Plug-In Charging System >> Schematic Wiring Diagrams >> Plug-In Charging Wiring Schematics >> AC Battery Charging
