Module Power, Ground and Subsystem References

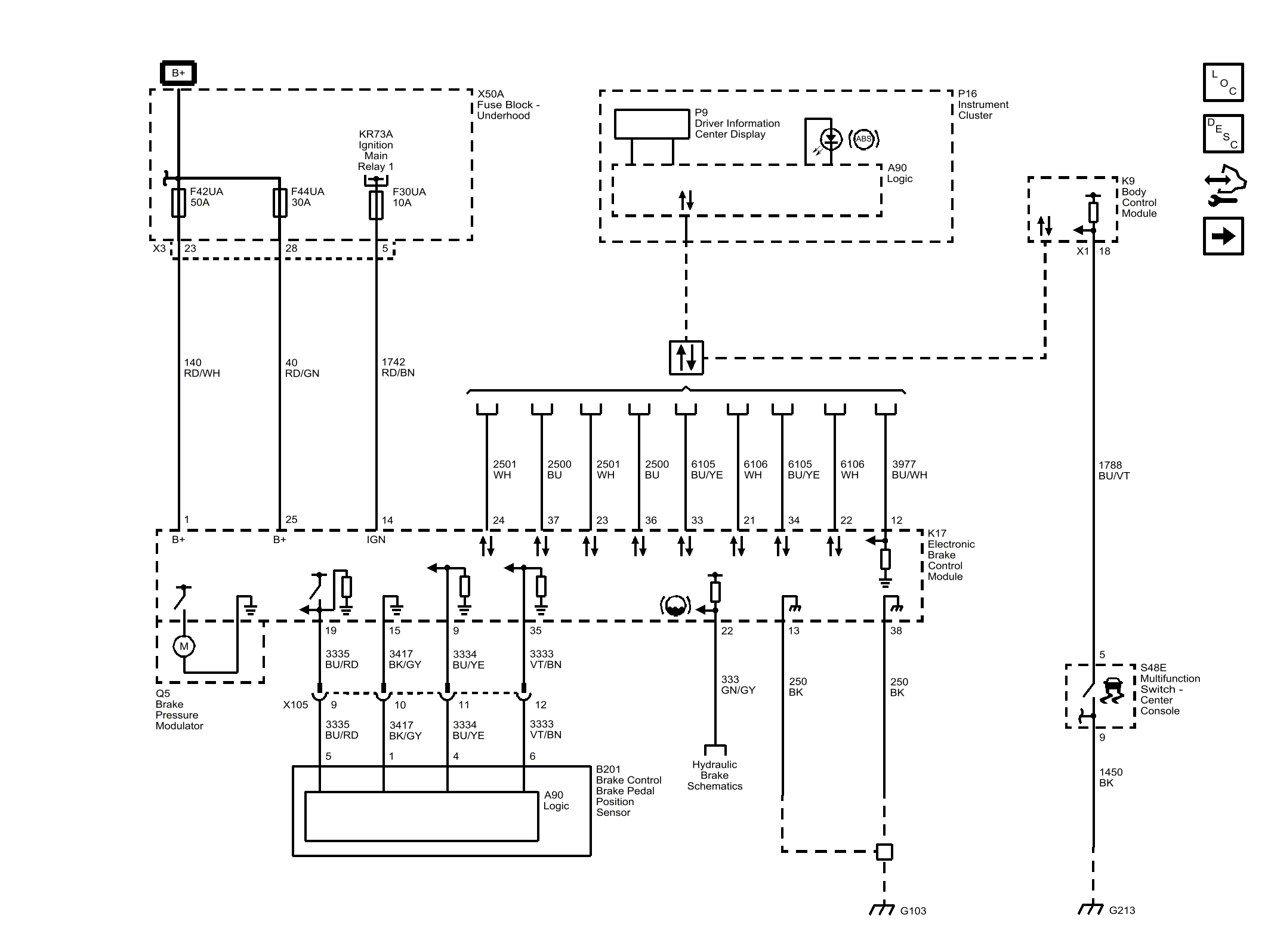

Fig 1: Module Power, Ground and Subsystem References

GM3666148

Courtesy of GENERAL MOTORS COMPANY
