Removal Procedure

  1. Remove the electronic brake and traction control module bracket. Refer to Electronic Brake and Traction Control Module Bracket Replacement .
  2. Remove the brake pressure modulator valve bracket bolts (1).

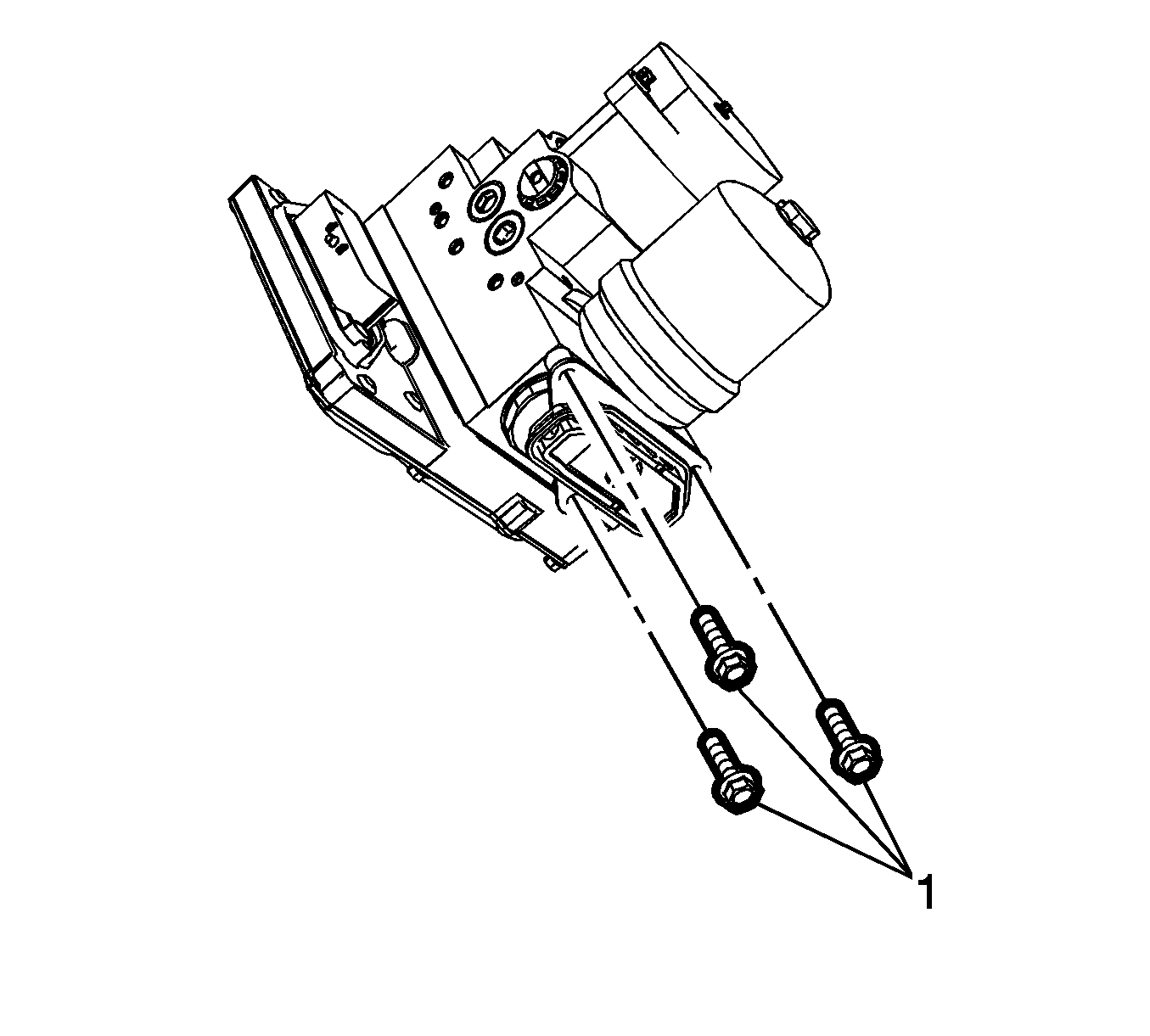

    Fig 1: Brake Pressure Modulator Valve Bracket Bolts
    GM3266916Courtesy of GENERAL MOTORS COMPANY
  3. Remove the brake pressure modulator valve bracket (1).

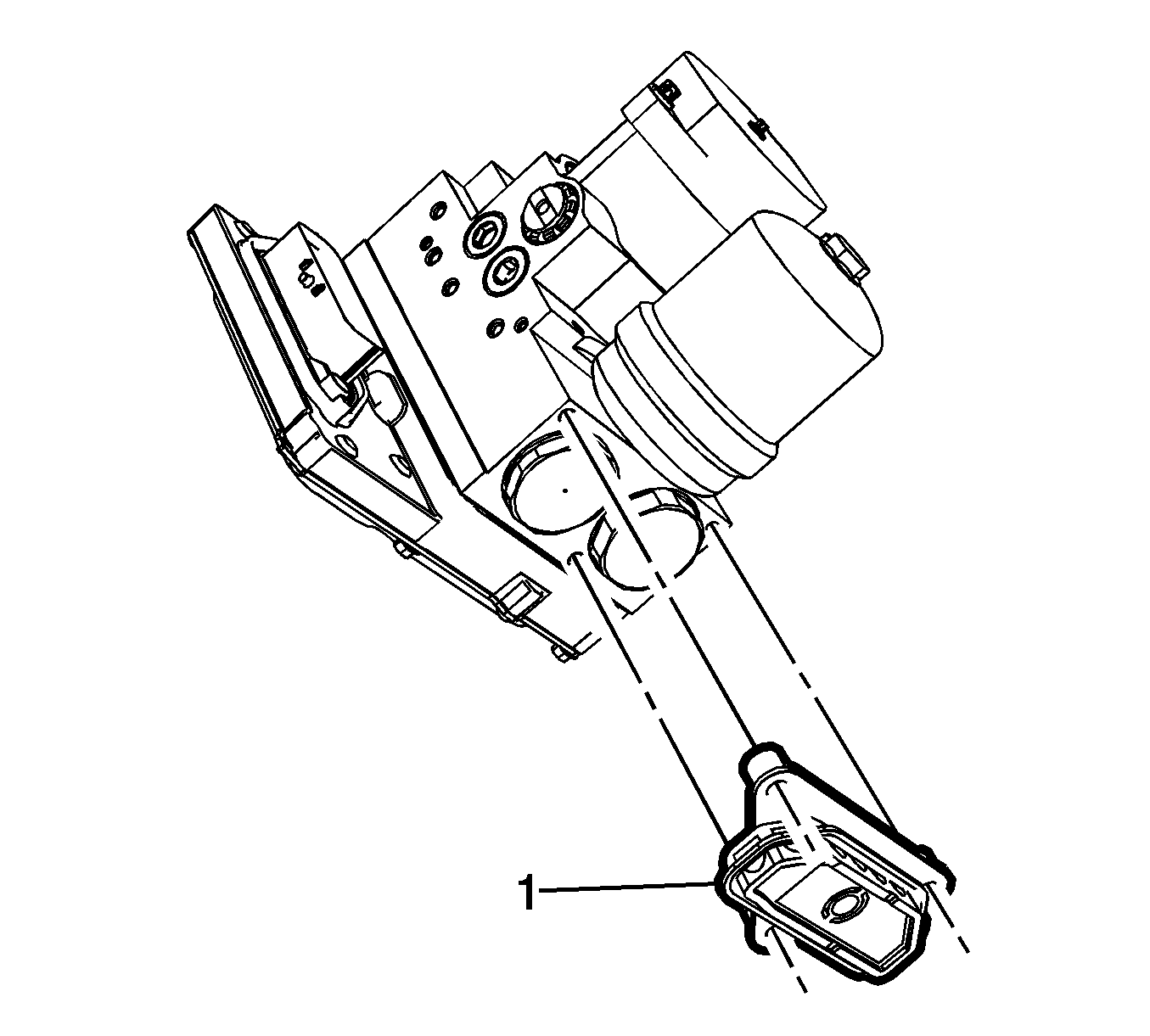

    Fig 2: Brake Pressure Modulator Valve Bracket
    GM3266917Courtesy of GENERAL MOTORS COMPANY
