Installation Procedure

Remove the CH-6015 plugs from evaporative emissions fuel tank pipe and evaporative emissions pipe.
Install the evaporative emissions pipe and secure with the rear fuel pipe clip.

Fig 1: Fuel Tank Feed Pipe Connector
Courtesy of GENERAL MOTORS COMPANY
Connect the fuel tank feed pipe connector (2) to the evaporative emissions pipe. Refer to Plastic Collar Quick Connect Fitting Service .
Close the 5 fuel pipe clips (1).

Fig 2: Fuel Pipe Clips
Courtesy of GENERAL MOTORS COMPANY
Install the EVAP canister cover (2) and tighten the EVAP canister cover fasteners (1) to 9 N.m (71 lb in).

Fig 3: EVAP Canister Cover & Fasteners
Courtesy of GENERAL MOTORS COMPANY
Install the frame reinforcement (2) and tighten the frame reinforcement fasteners (1) to 60 N.m (44 lb ft).

Fig 4: Frame Reinforcement & Fasteners
Courtesy of GENERAL MOTORS COMPANY
Lower the vehicle.
Clip the evaporative emissions pipe (2) into the retainer clip (3).

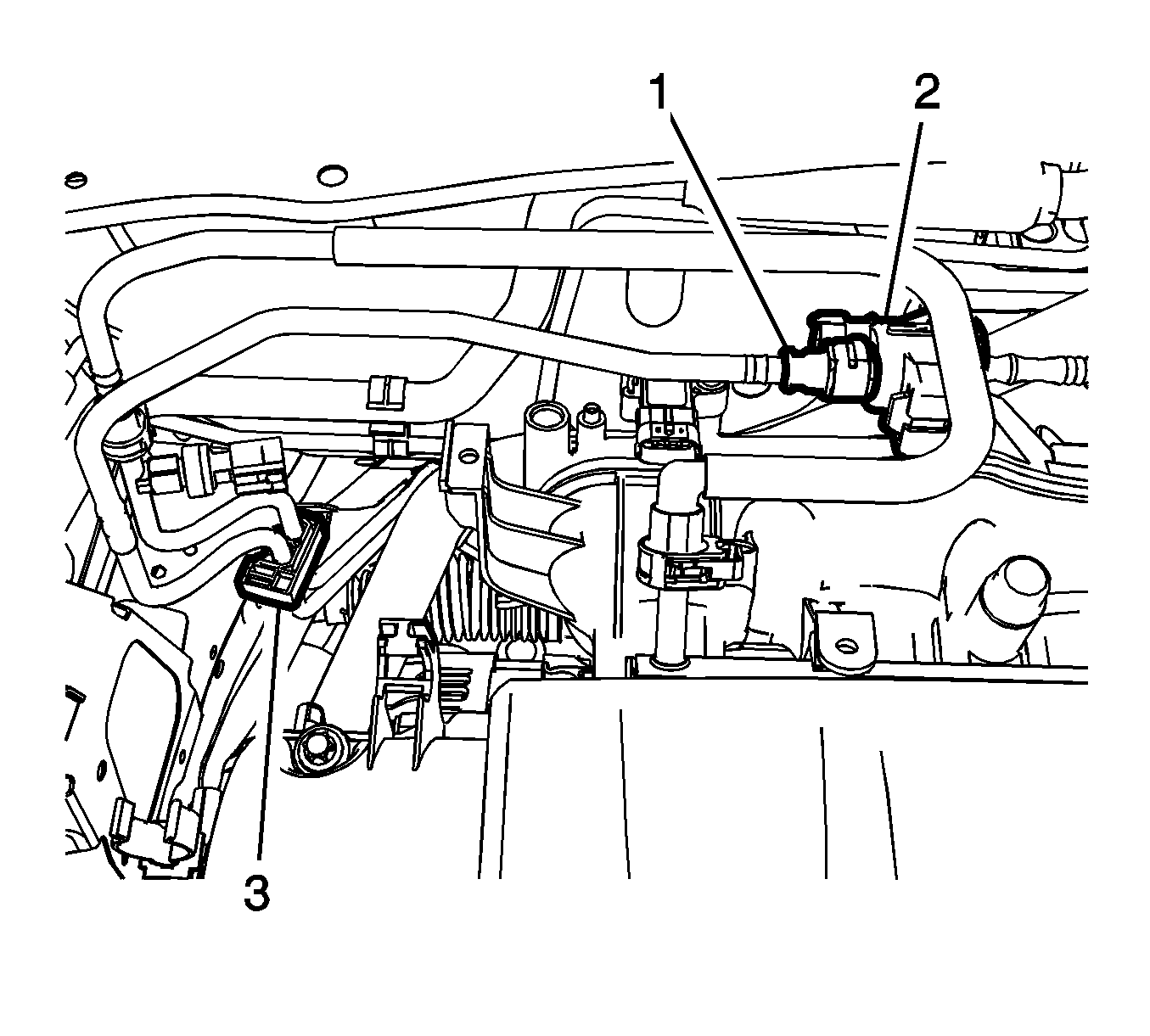

Fig 5: Evaporative Emissions Pipe, Connector & Retainer Clip
Courtesy of GENERAL MOTORS COMPANY
Remove the CH-807 plugs from the evaporative emissions pipe connectors.
Connect the front evaporative emissions pipe connector (1) to the evaporative emissions purge valve (2). Refer to Plastic Collar Quick Connect Fitting Service .
Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
