Top of the Engine Components (LML)

Top of the Engine Components (LML)

Items
1: Q18B Fuel Pressure Regulator 2 (LML) Q18B Fuel Pressure Regulator 2
2: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LML)
3: Q18A Fuel Pressure Regulator 1 (LML) Q18A Fuel Pressure Regulator 1
4: B48A Fuel Temperature Sensor 1 B48 Fuel Temperature Sensor

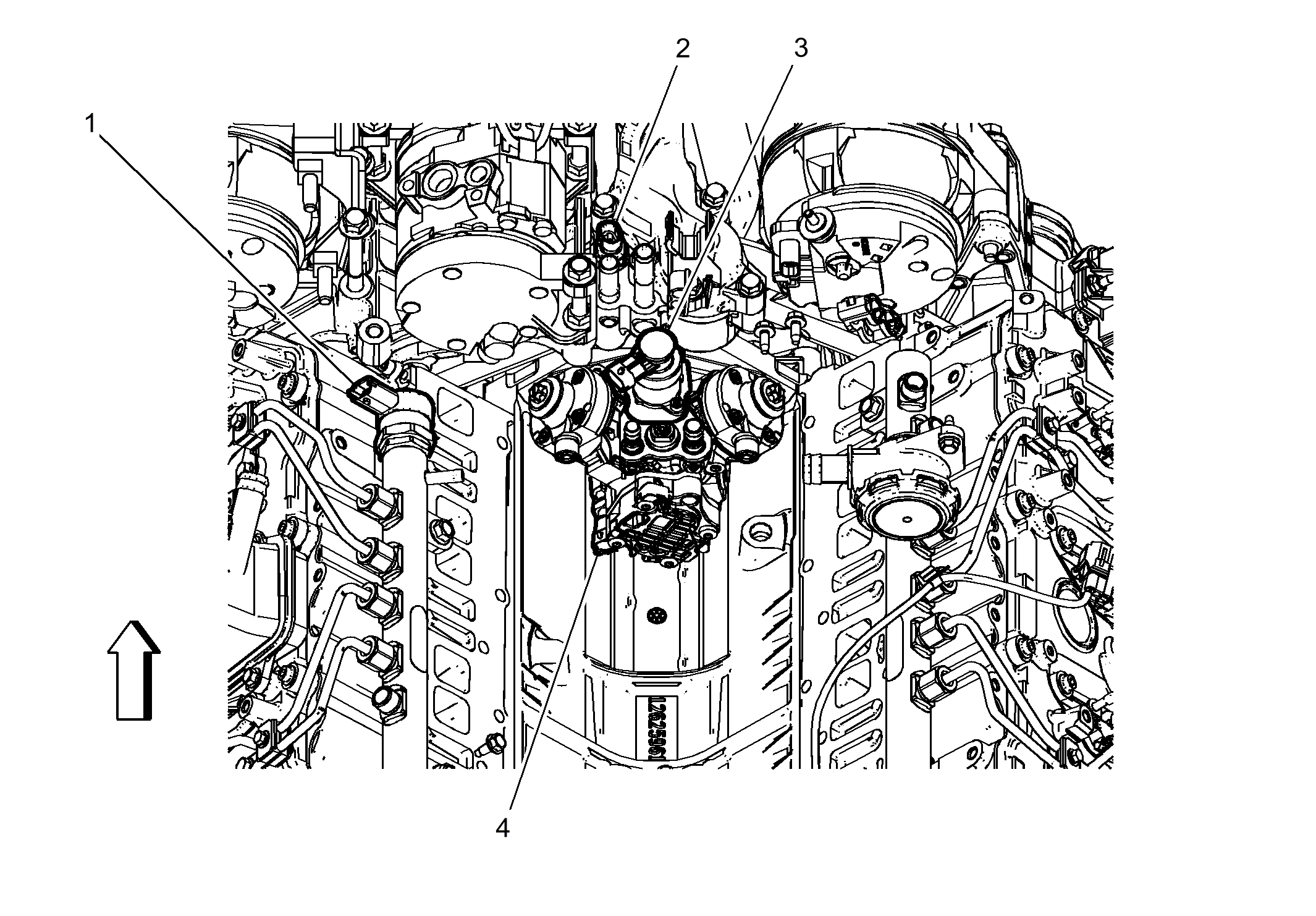

Fig 1: Top of the Engine Components (LML)
GM4103828Courtesy of GENERAL MOTORS COMPANY
