Removal Procedure

    WARNING:

    Refer to Battery Disconnect Warning .

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Dual Battery) .
  2. Remove the fan blade. Refer to Fan Blade Replacement (LML) .

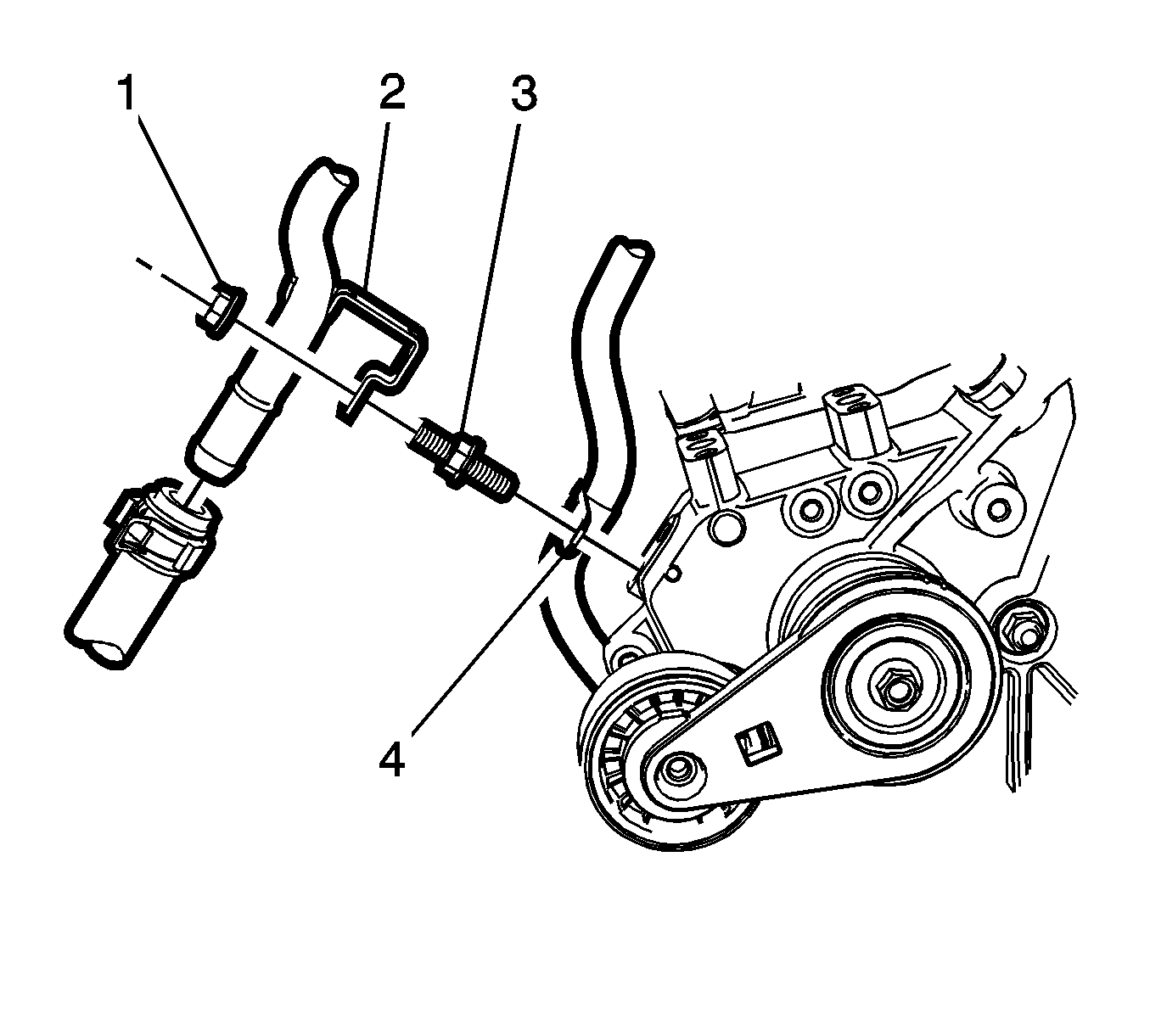

    3. Fig 1: Identifying Engine Harness Retainer, Engine Harness Stud Clip Nut, Heater Outlet Pipe Retainer And Nut
    GM2403153Courtesy of GENERAL MOTORS COMPANY
  3. Remove the heater outlet pipe retainer (2) and nut (1).
  4. Remove the engine harness stud clip nut (3) and engine harness retainer (4).

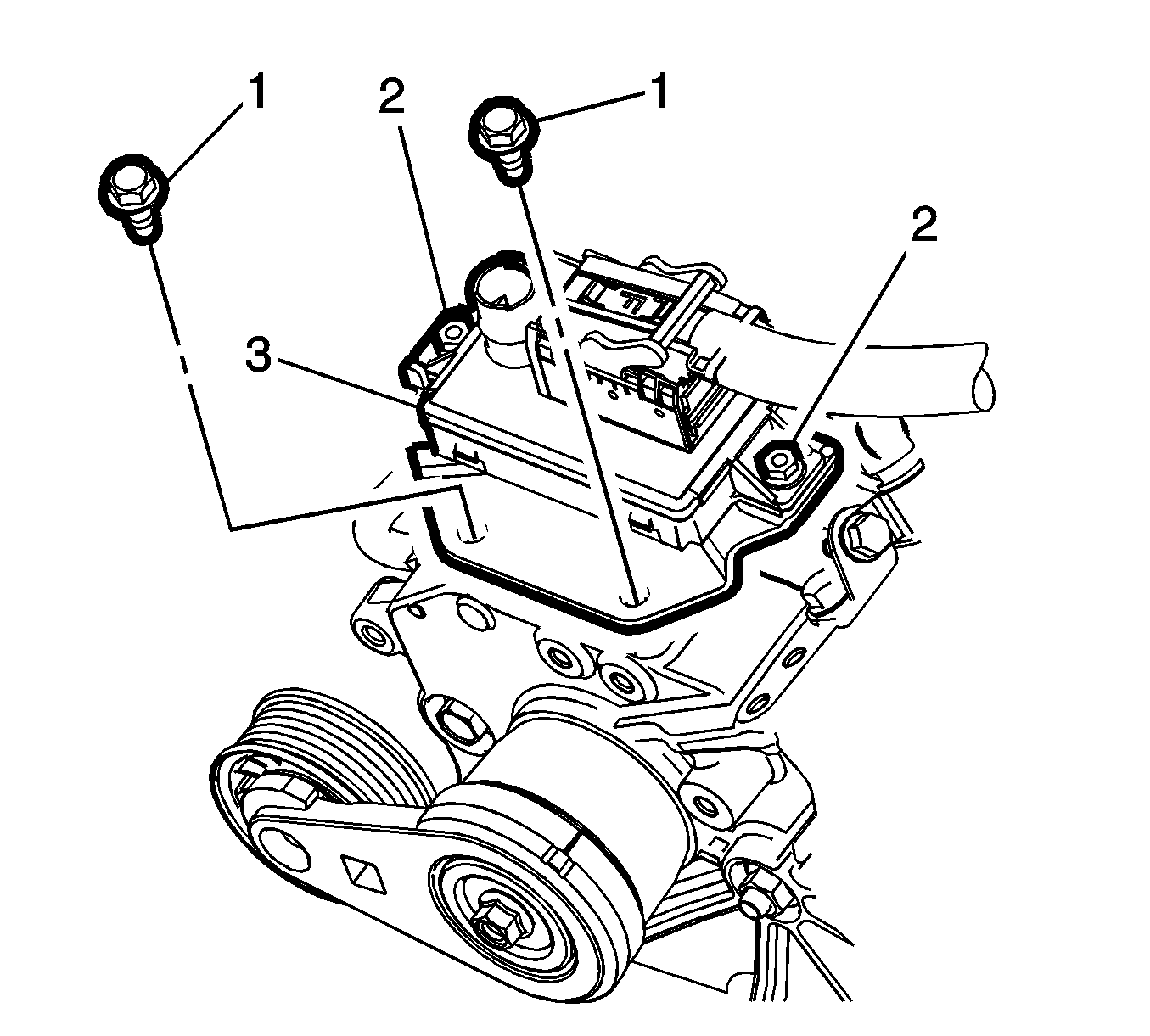

    5. Fig 2: Identifying Glow Plug Module, Glow Plug Module Bracket Bolts And Nuts
    GM2403130Courtesy of GENERAL MOTORS COMPANY
  5. Remove the nuts (2) at the back of the glow plug module (3).
  6. Remove the glow plug module bracket bolts (1) and reposition the glow plug module (3).

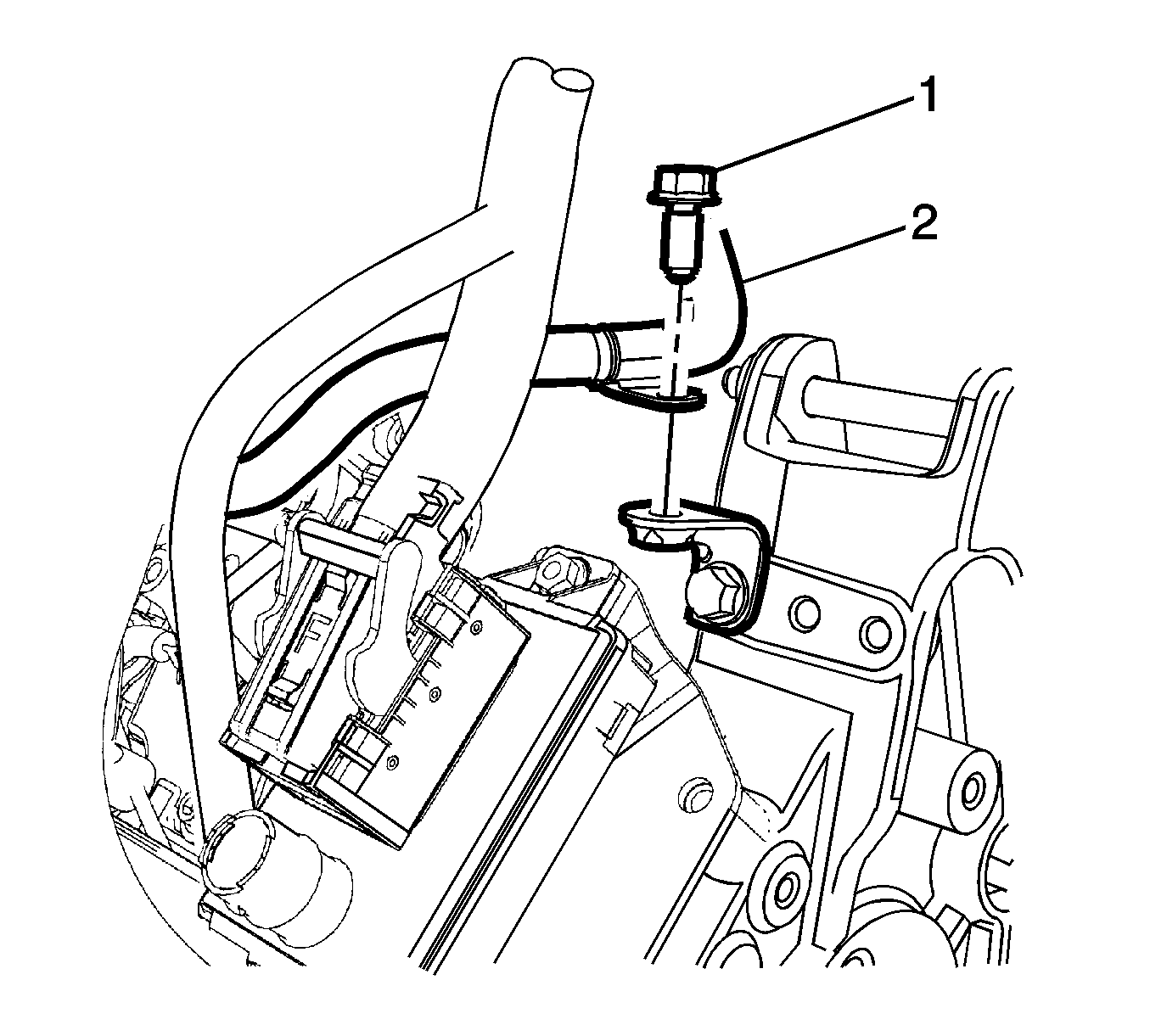

    7. Fig 3: Identifying Fuel Line Retainer And Bolt
    GM2406139Courtesy of GENERAL MOTORS COMPANY
  7. Remove the bolt (1) securing the fuel line retainer (2) to the generator bracket.

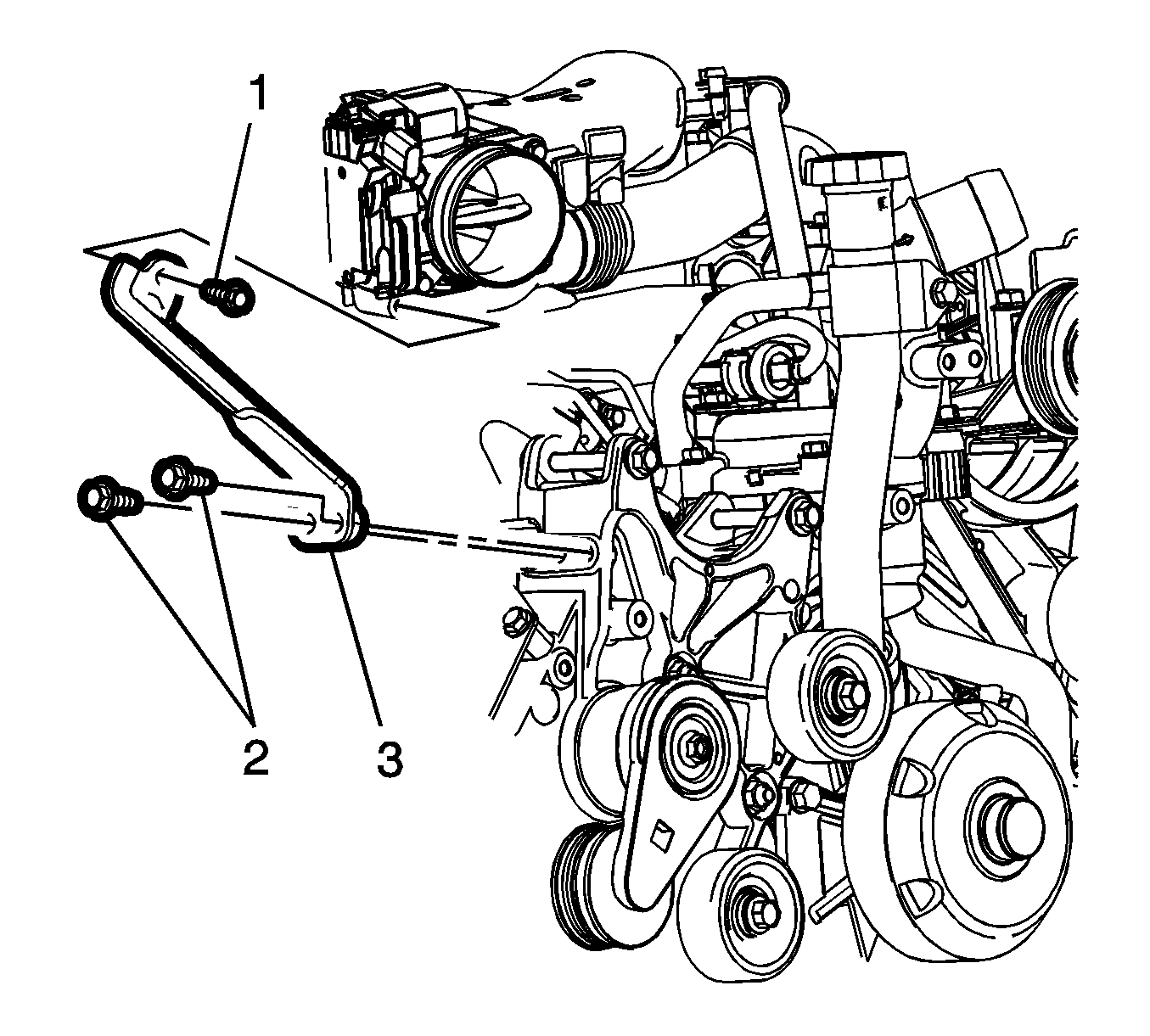

    8. Fig 4: Upper Intake Manifold Brace And Bolts
    GM2403126Courtesy of GENERAL MOTORS COMPANY
  8. Remove the upper intake manifold brace bolt (1).
  9. Remove the bolts (2) securing the upper intake manifold brace (3) to the generator bracket.
  10. Remove the drive belt tensioner. Refer to Drive Belt Tensioner Replacement .
  11. Remove the generator. Refer to Generator Replacement (Diesel) .

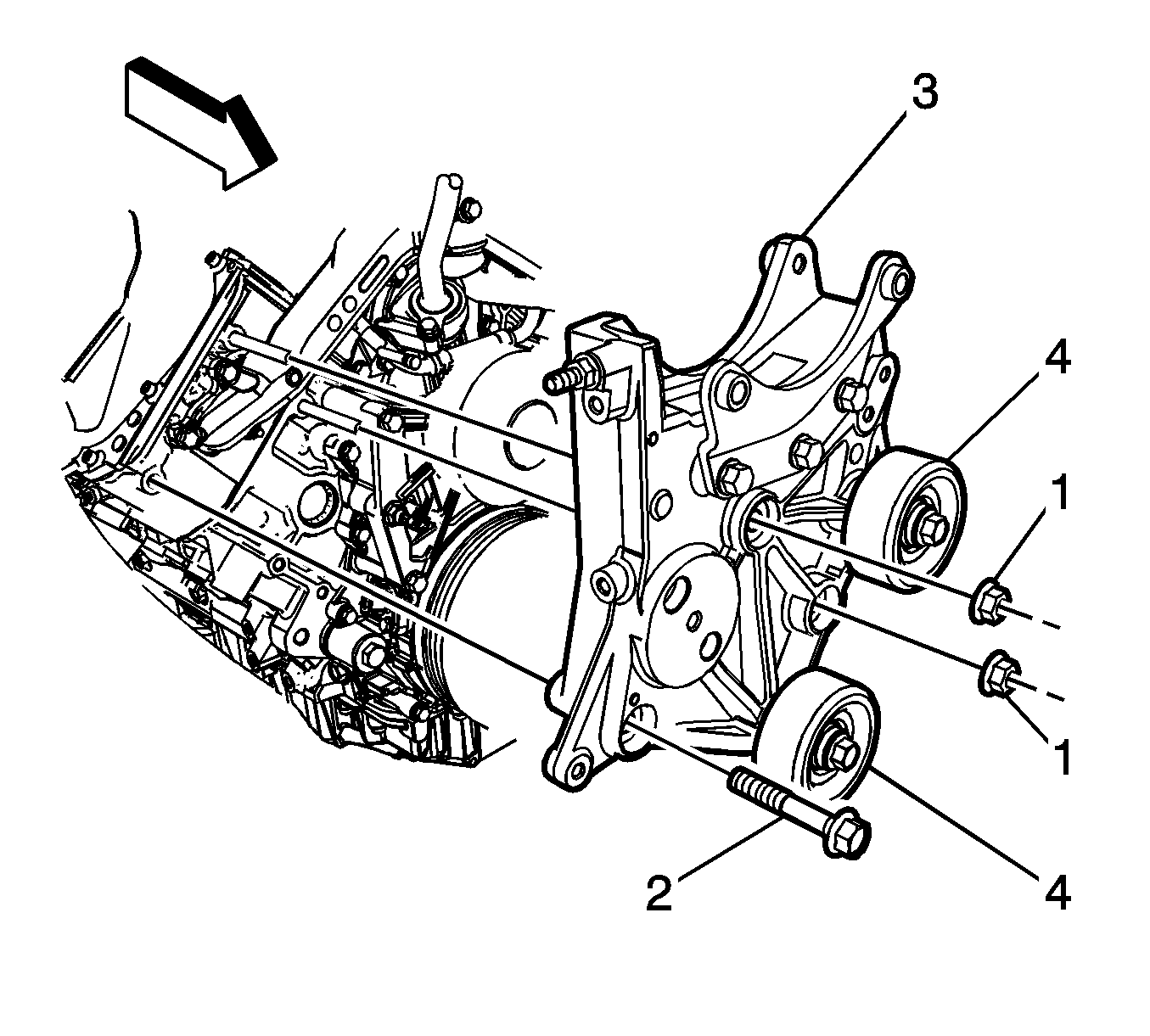

    12. Fig 5: Identifying Idler Pulleys, Generator Bracket, Nuts And Bolt
    GM2382167Courtesy of GENERAL MOTORS COMPANY
  12. Remove the generator bracket nuts (1) and bolt (1) from the cylinder block.
  13. Remove the generator bracket (3).
  14. If replacing the generator bracket, remove the idler pulleys (4) and transfer to the new generator bracket.
