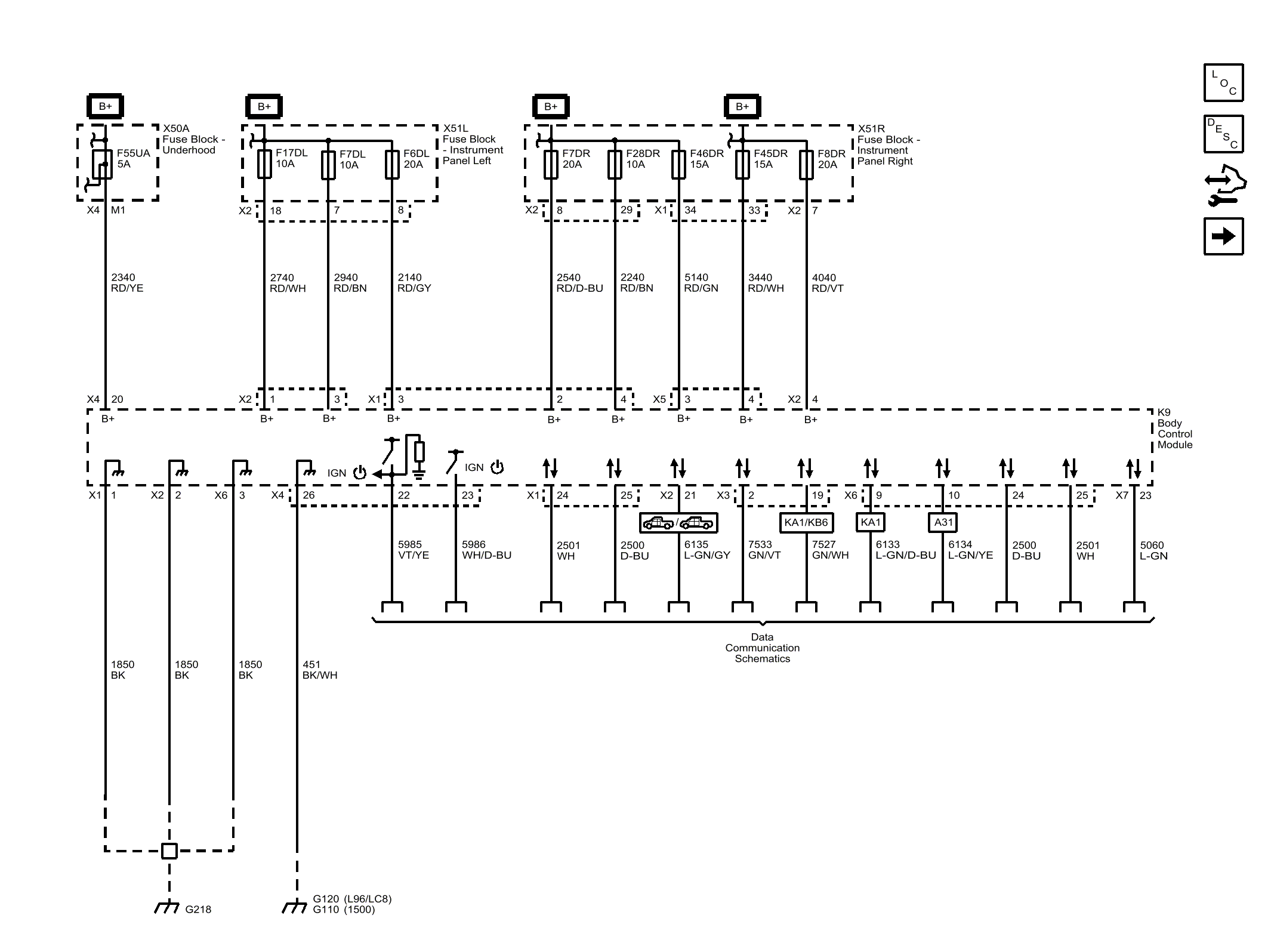

Home >> Chevrolet >> 2015 >> Silverado 1500 SSV, 4WD, Automatic T/Case Control, Gas/Ethanol >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Body Control System Wiring Schematics >> Module Power, Ground and Serial Data
