Removal Procedure

  1. Remove the front floor console. Refer to Front Floor Console Replacement (Automatic) Front Floor Console Replacement (Manual) .
  2. Remove the front floor console cup holder liner. Refer to Front Floor Console Cup Holder Liner Replacement .

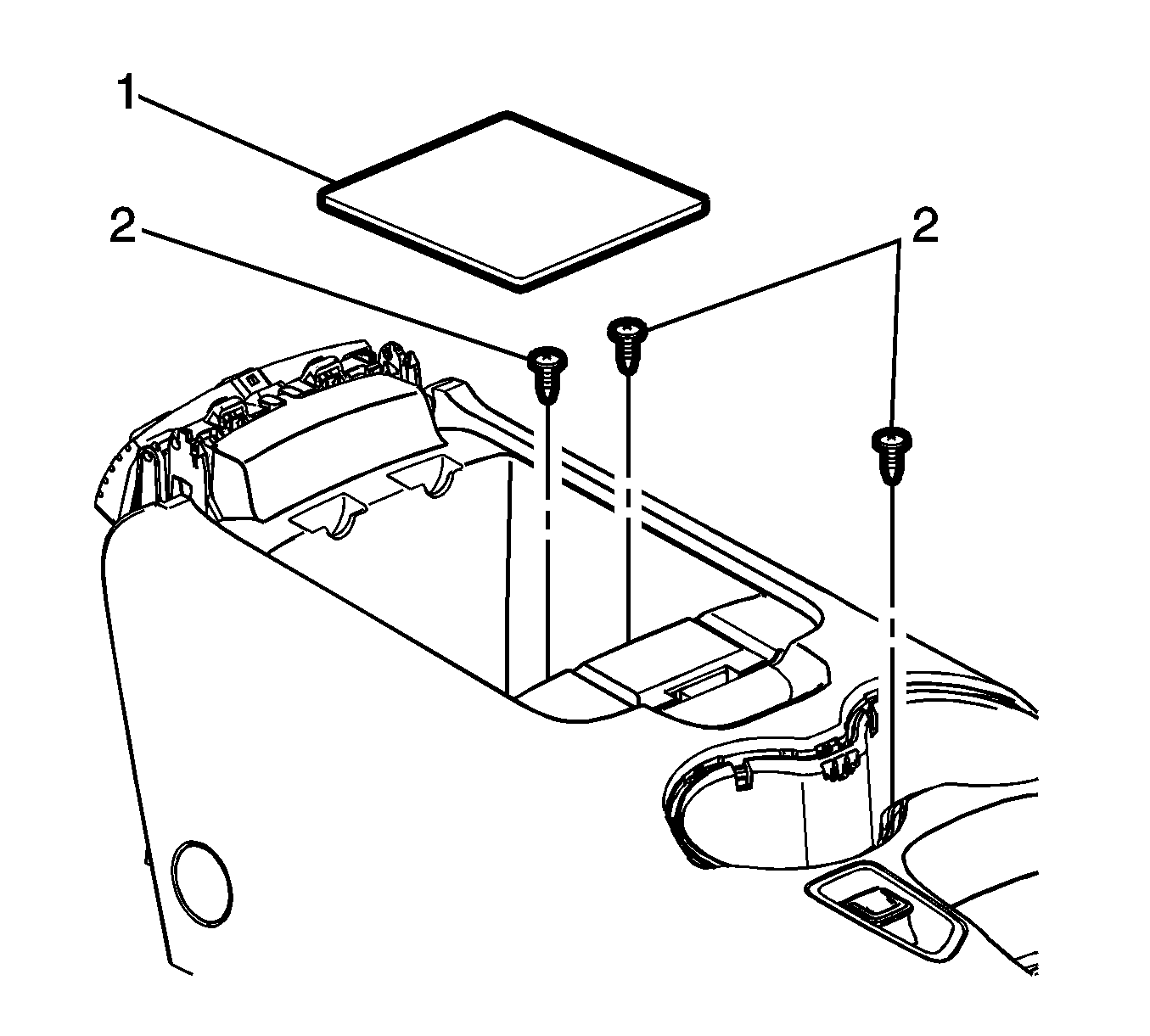

    3. Fig 1: Front Floor Console Disc/Tape Storage Tray & Bolts
    GM3223195Courtesy of GENERAL MOTORS COMPANY
  3. Remove the front floor console disc/tape storage tray (1).
  4. Remove the bolts (2) securing the front floor console reinforcement to the front floor console assemble.

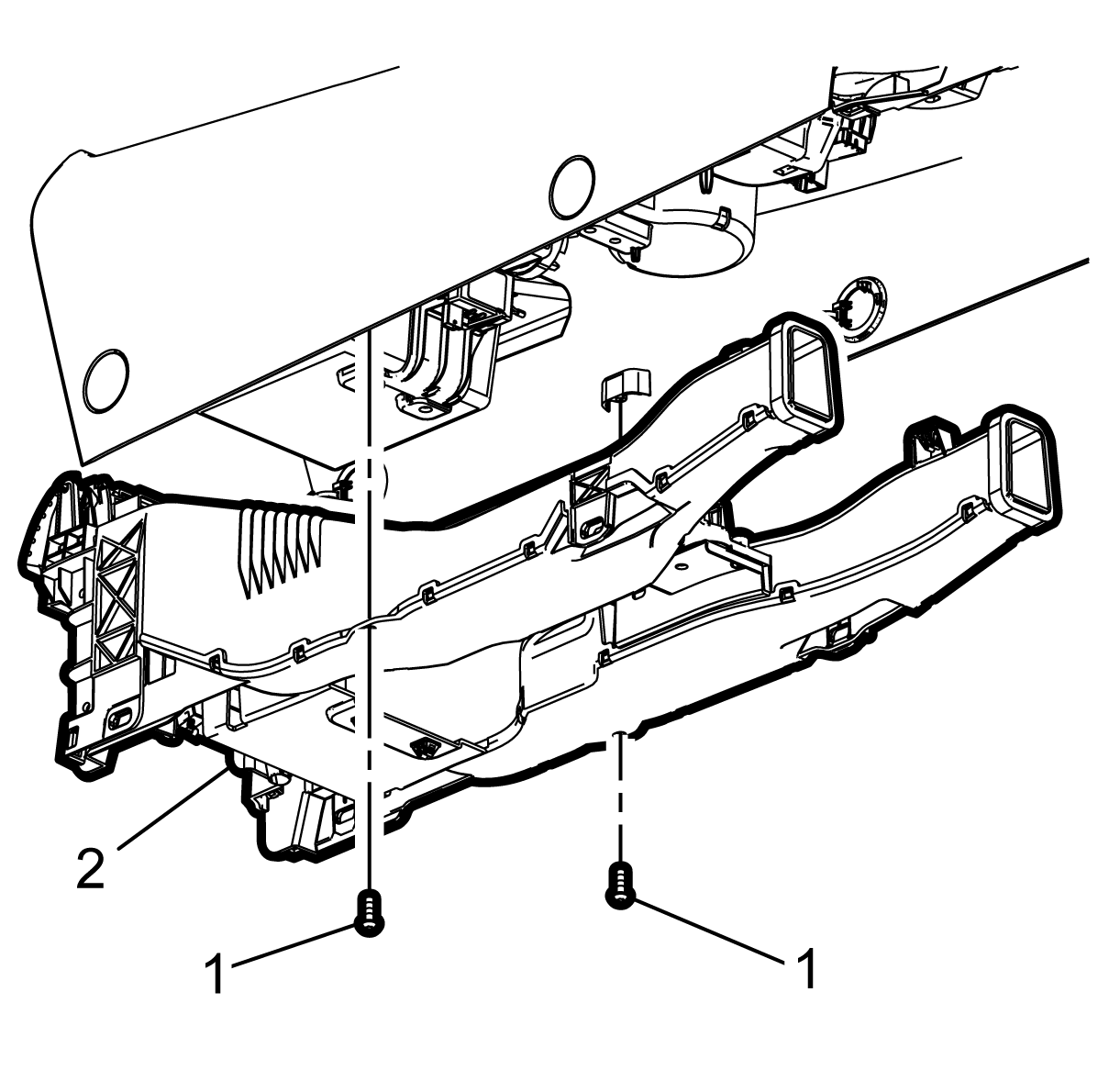

    5. Fig 2: Front Floor Console Reinforcement Bolts
    GM3223202Courtesy of GENERAL MOTORS COMPANY
  5. Remove the bolts (1) securing the front floor console reinforcement to the front floor console assemble.
