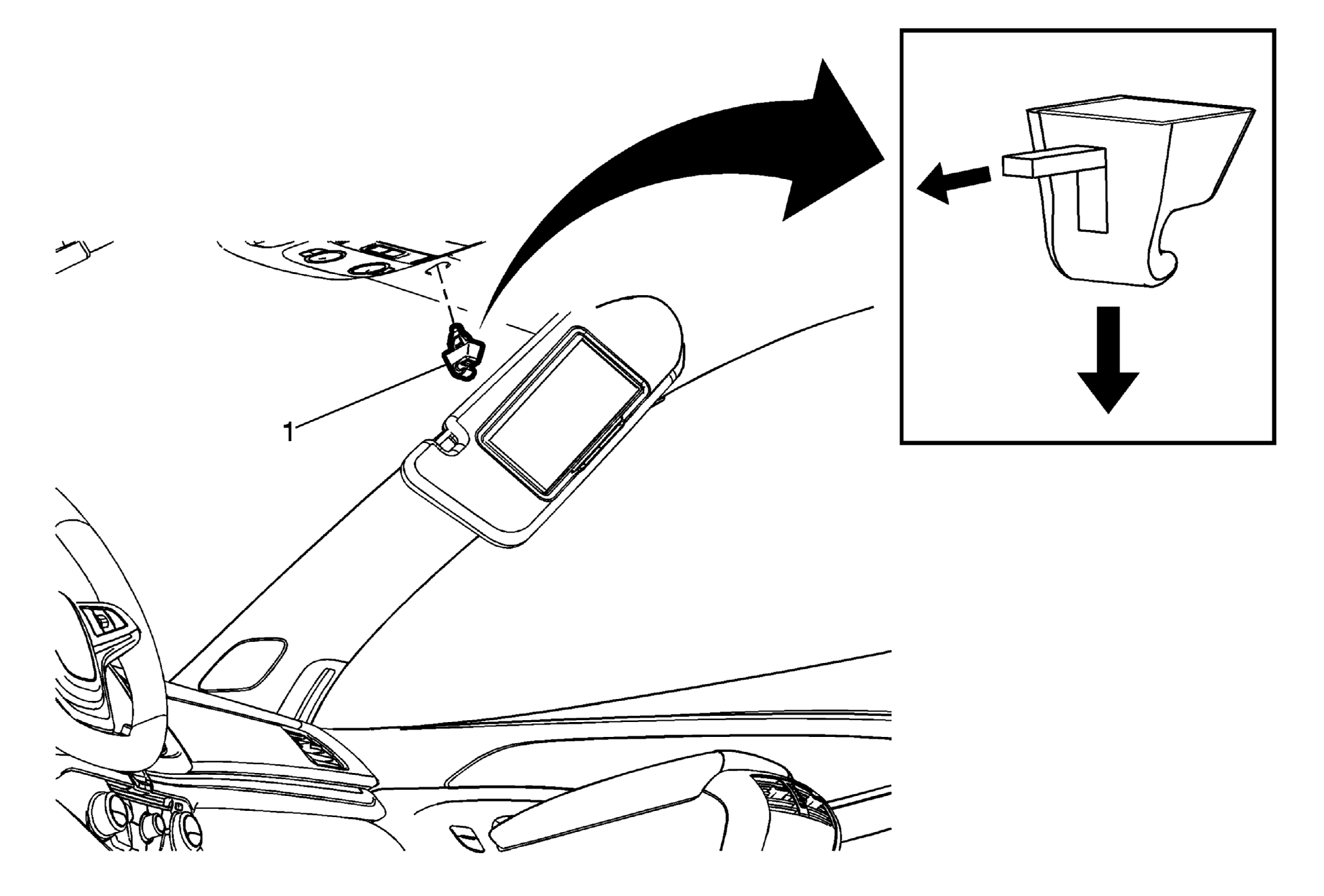

Sunshade Support Assembly Procedure
- Pull out sunshade bezel retainer locking pin to disengage sunshade support from the headliner.
- Ensure the internal spring is captured.
- Using an appropriate flat-bladed tool, depress the locking clips and remove the clip base from the roof.
- Reassemble clip base, spring, sunshade support and locking pin prior to installation.
|
