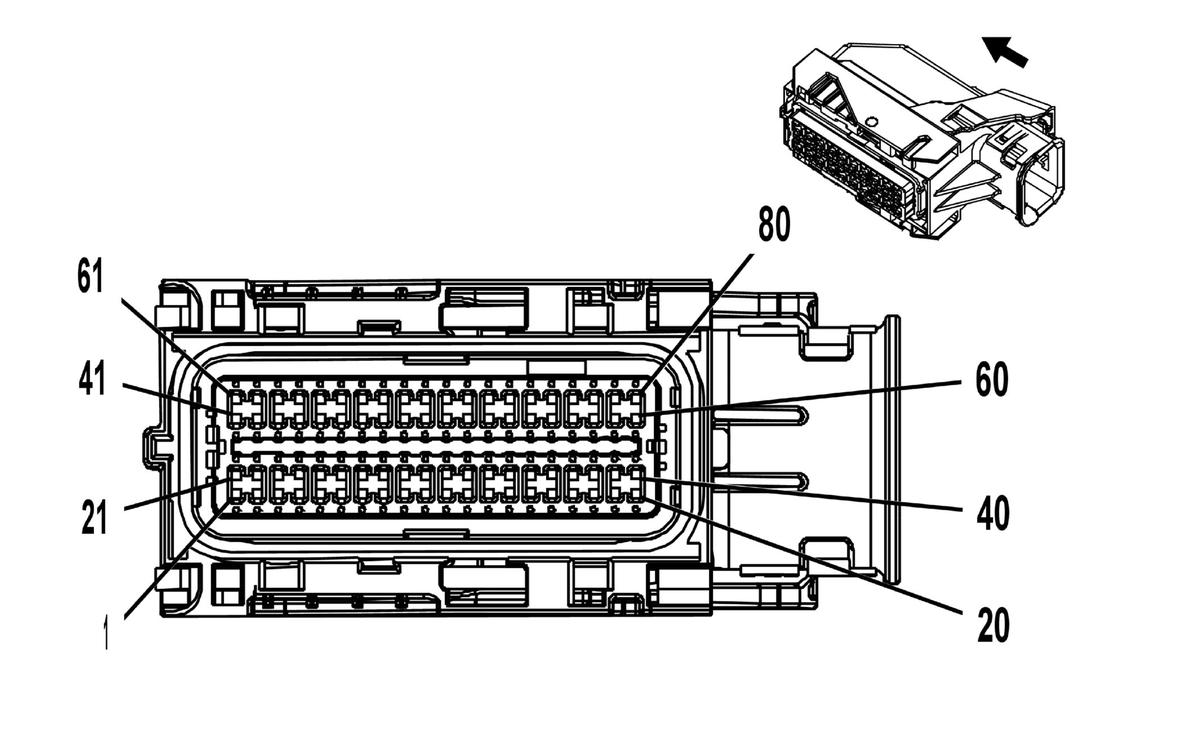

K20 Engine Control Module X2

GM3293175
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 7287-3173-40
  • Service Connector: Not Available
  • Description: 80-Way F 0.64 MX123 Series, Sealed (GY)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Core Crimp Insulation Crimp
I Not Available Not Available Not Available Not Available Not Available Not Available Not Available
Pin Size Color Circuit Function Terminal Type ID Option
1 - - - Not Occupied - -
2 0.5 2:VT/BU 2:6270 2:Crankshaft 60X Sensor Voltage I -
3 0.5 3:BN/RD 3:2701 3:Throttle Position Sensor 5 Volt Reference I -
4 - - - Not Occupied - -
5 5:0.75 5:BN/WH 582 5:Throttle Actuator Control Close I -
6 6:0.75 YE 581 6:Throttle Actuator Control Open I -
7 - - - Not Occupied - -
8 0.5 8:GN/BU 428 8:EVAP Canister Purge Solenoid Control I -
9-10 - - - Not Occupied - -
11 0.5 11:GN/BU 11:1652 11:Reverse Lockout Solenoid Control I -
12 0.5 12:GY/WH 12:3113 12:Heated Oxygen Sensor Heater Low Control Bank 1 Sensor (1) I -
13 0.5 13:GN/YE 13:3212 13:Heated Oxygen Sensor Heater Low Control Bank 2 Sensor (1) I -
14-16 - - - Not Occupied - -
17 17:0.75 17:BN/GY 878 17:Fuel Injector Control (8) I -
18 18:0.75 18:BN/GN 845 18:Fuel Injector Control (5) I -
19 19:0.75 19:BN/BU 846 19:Fuel Injector Control (6) I -
20 20:0.75 20:GN/YE 20:1744 20:Fuel Injector Control (1) I -
21 0.5 BU 410 21:Engine Coolant Temperature Sensor Signal I -
22 0.5 22:BK/BN 22:2761 22:Coolant Temperature Sensor Low Reference I -
23 0.5 23:BN/BU 357 23:Oil Temperature Sensor Signal I -
24 0.5 24:BK/BN 24:6273 24:Oil Temperature Sensor Low Reference I -
25 - - - Not Occupied - -
26 0.5 26:VT/GY 496 26:Knock Sensor Signal (1) I -
27 0.5 27:BK/YE 27:1716 27:Knock Sensor Low Reference (1) I -
28 - - - Not Occupied - -
29 0.5 29:WH/GY 29:1876 29:Knock Sensor Signal (2) I -
30 0.5 30:BK/GY 30:2303 30:Knock Sensor Low Reference (2) I -
31 - - - Not Occupied - -
32 0.5 GY 23 32:Generator Field Duty Cycle Signal I -
33 0.5 33:BN/GN 33:1174 33:Oil Level Switch Signal I -
34 0.5 34:BK/VT 34:2755 34:Oil Pressure Sensor Low Reference I -
35 0.5 35:BK/BN 35:2752 35:Throttle Position Sensor Low Reference I -
36 - - - Not Occupied - -
37 37:0.75 37:YE/WH 37:1745 37:Fuel Injector Control (2) I -
38 38:0.75 38:BN/VT 38:1746 38:Fuel Injector Control (3) I -
39 39:0.75 39:BN/YE 844 39:Fuel Injector Control (4) I -
40 40:0.75 40:BN/VT 877 40:Fuel Injector Control (7) I -
41 0.5 41:WH/RD 41:2705 41:Oil Pressure Sensor 5 Volt Reference I -
42 - - - Not Occupied - -
43 0.5 43:GY/RD 43:2704 43:Manifold Absolute Pressure Sensor 5 Volt Reference I -
44 0.5 44:GY/BU 44:6259 44:Camshaft CAM W Supply Voltage I -
45-49 - - - Not Occupied - -
50 0.5 50:YE/BN 331 50:Oil Pressure Sensor Signal I -
51-52 - - - Not Occupied - -
53 0.5 53:BK/GN 469 53:Manifold Absolute Pressure Sensor Low Reference I -
54-55 - - - Not Occupied - -
56 0.5 56:WH/BK 56:3111 56:Heated Oxygen Sensor Low Signal Bank 1 Sensor (1) I -
57 0.5 57:VT/GY 57:3110 57:Heated Oxygen Sensor High Signal Bank 1 Sensor (1) I -
58 0.5 58:GN/WH 432 58:Manifold Absolute Pressure Sensor Signal I -
59 0.5 59:VT/WH 59:3210 59:Heated Oxygen Sensor High Signal Bank 2 Sensor (1) I -
60 0.5 60:YE/WH 60:3211 60:Heated Oxygen Sensor Low Signal Bank 2 Sensor (1) I -
61 0.5 BN 25 61:Charge Indicator Control I -
62 - - - Not Occupied - -
63 0.5 63:BN/BU 486 63:Throttle Position Sensor Signal (2) I -
64 0.5 64:YE/VT 64:6265 64:Camshaft CAM W Signal I -
65 0.5 65:BN/GN 485 65:Throttle Position Sensor Signal (1) I -
66 0.5 66:GN/BK 66:6266 66:Camshaft CAM W Ground I -
67 - - - Not Occupied - -
68 0.5 GN 68:6271 68:Crankshaft 60X Sensor Signal I -
69 0.5 69:BK/VT 69:6272 69:Crankshaft 60X Sensor Low Reference I -
70 0.5 70:BU/VT 70:2121 70:Ignition Control (1) I -
71 0.5 71:VT/WH 71:2128 71:Ignition Control (8) I -
72 0.5 72:GN/GY 72:2127 72:Ignition Control (7) I -
73 0.5 73:BU/WH 73:2122 73:Ignition Control (2) I -
74 0.5 74:BN/BU 74:2126 74:Ignition Control (6) I -
75 0.5 75:BU/GY 75:2125 75:Ignition Control (5) I -
76 0.5 76:YE/BU 76:2124 76:Ignition Control (4) I -
77 0.5 77:GN/BU 77:2123 77:Ignition Control (3) I -
78 0.5 78:BK/BU 78:2129 78:Ignition Control Low Reference Bank 1 I -
79 0.5 79:BK/GY 79:2130 79:Ignition Control Low Reference Bank 2 I -
80 - - - Not Occupied - -
