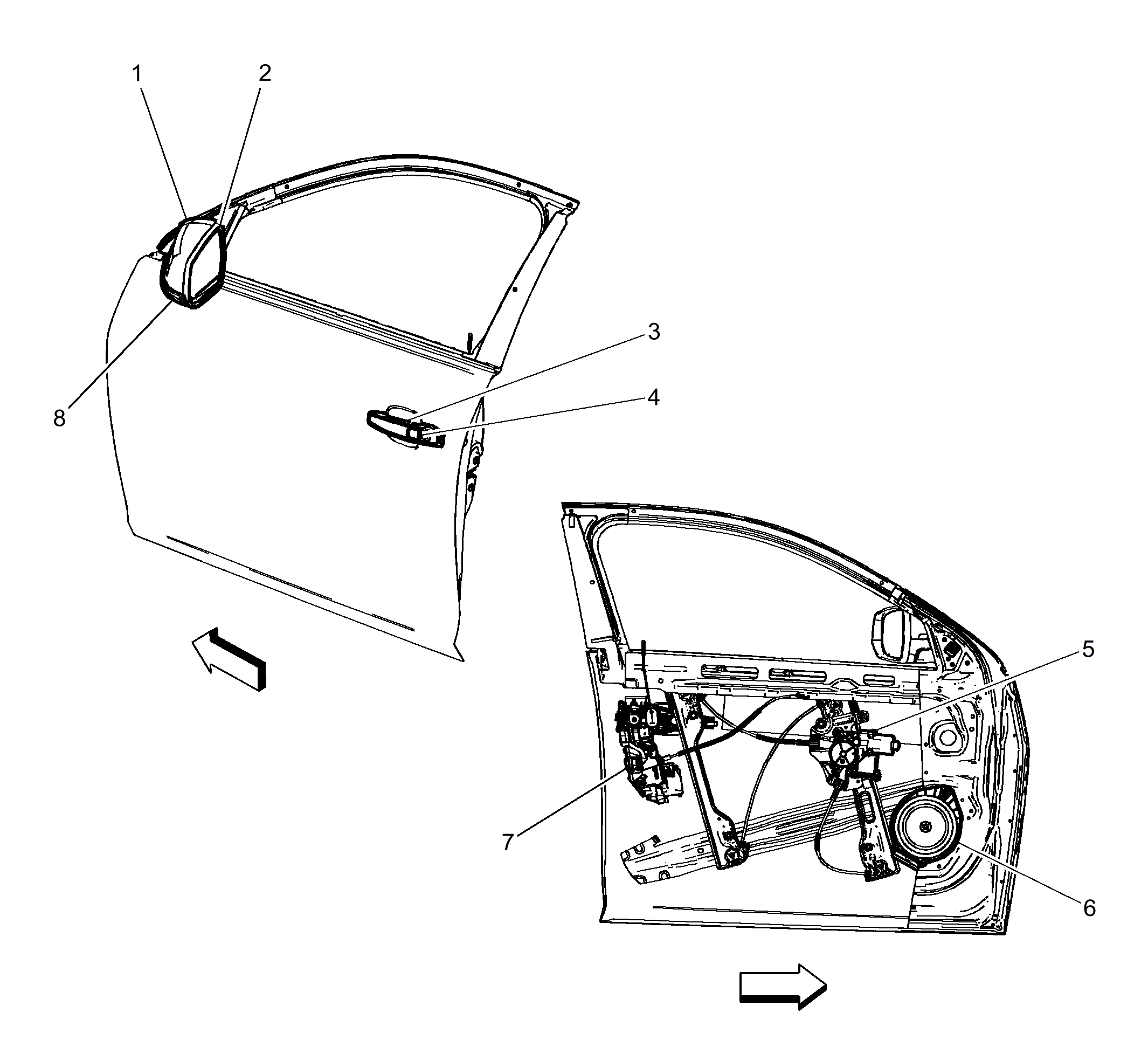

Driver Door Components
Driver Door Components
| Items |
|---|
| 1: A9A Outside Rearview Mirror - Driver |
| 2: E17D Outside Rearview Mirror Glass - Driver E17D Outside Rearview Mirror Glass - Driver X1 , E17D Outside Rearview Mirror Glass - Driver X2 and E17D Outside Rearview Mirror Glass - Driver X3 (UFG or UFT) |
| 3: A24D Door Handle Assembly - Driver Exterior A24D Door Handle Assembly - Driver Exterior |
| 4: B27D Door Handle Switch - Driver Exterior (ATH) |
| 5: M74D Window Motor - Driver M74D Window Motor - Driver (AEC) and M74D Window Motor - Driver (AXG) |
| 6: P19AG Speaker - Left Front Door P19AG Speaker - Left Front Door (UQA) and P19AG Speaker - Left Front Door (UW6) |
| 7: A23D Door Latch Assembly - Driver A23D Door Latch Assembly - Driver |
| 8: E4Y Turn Signal Repeater Lamp - Left E4Y Turn Signal Repeater Lamp - Left |
