Data Link Connector Power, Ground, Low Speed GMLAN and Object Detection High Speed GMLAN

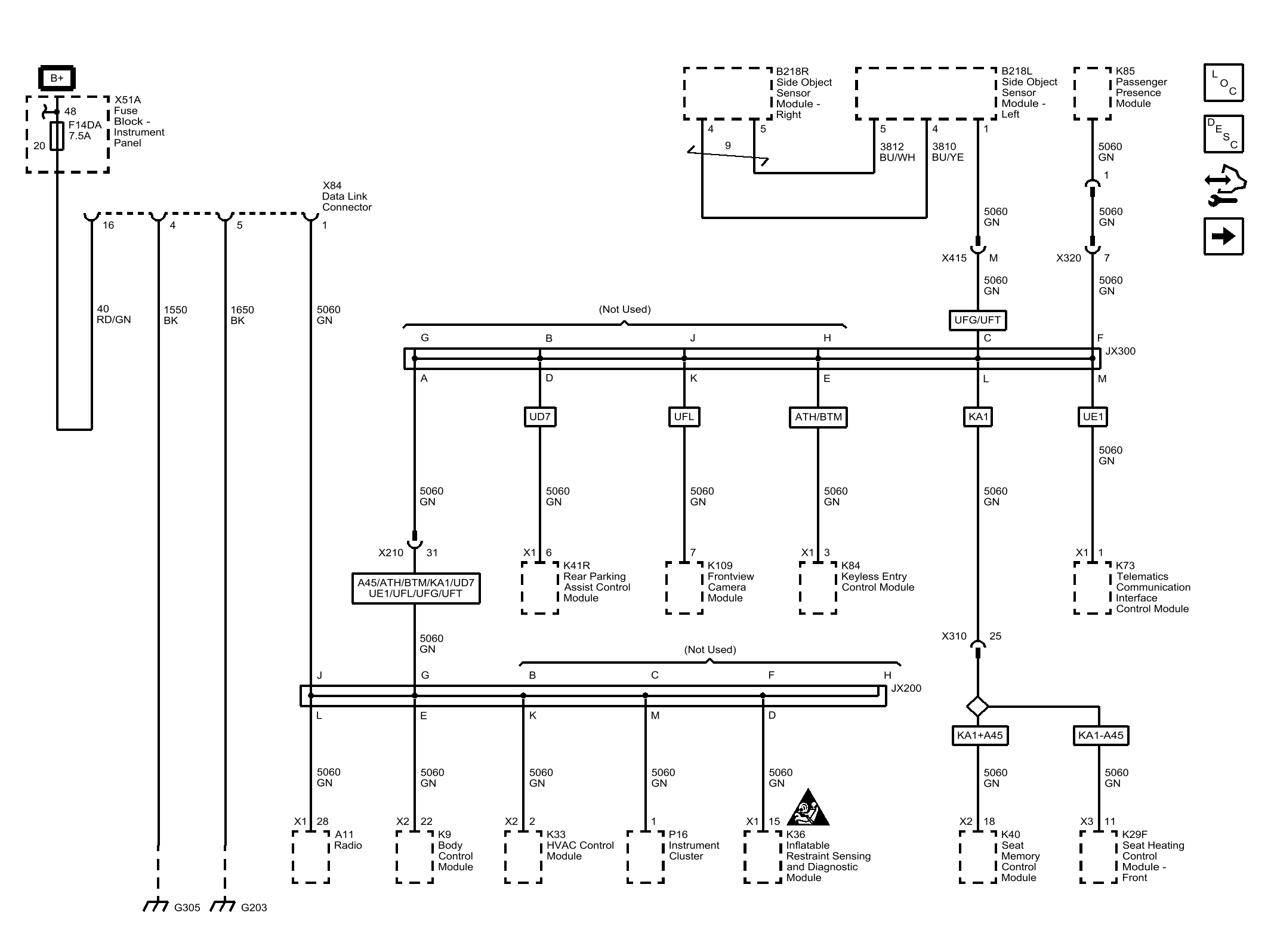

Fig 1: Data Link Connector Power, Ground, Low Speed GMLAN and Object Detection High Speed GMLAN
GM3704327Courtesy of GENERAL MOTORS COMPANY
