Left Rear of Engine Components (LTG)

Left Rear of Engine Components (LTG)

Items
1: X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3X50A Fuse Block - Underhood X4X50A Fuse Block - Underhood X5 (KL9)X50A Fuse Block - Underhood X6
2: K20 Engine Control Module K20 Engine Control Module X1K20 Engine Control Module X2K20 Engine Control Module X3
3: B23F Camshaft Position Sensor - Intake (LKW or LTG) B23F Camshaft Position Sensor - Intake
4: Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust
5: B75C Multifunction Intake Air Sensor (LKW or LTG) B75C Multifunction Intake Air SensorB75C Multifunction Intake Air Sensor
6: Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake
7: Q38 Throttle Body Q38 Throttle Body
8: G13 Generator G13 Generator X1G13 Generator X2
9: K43 Power Steering Control Module K43 Power Steering Control Module X1K43 Power Steering Control Module X2K43 Power Steering Control Module X1

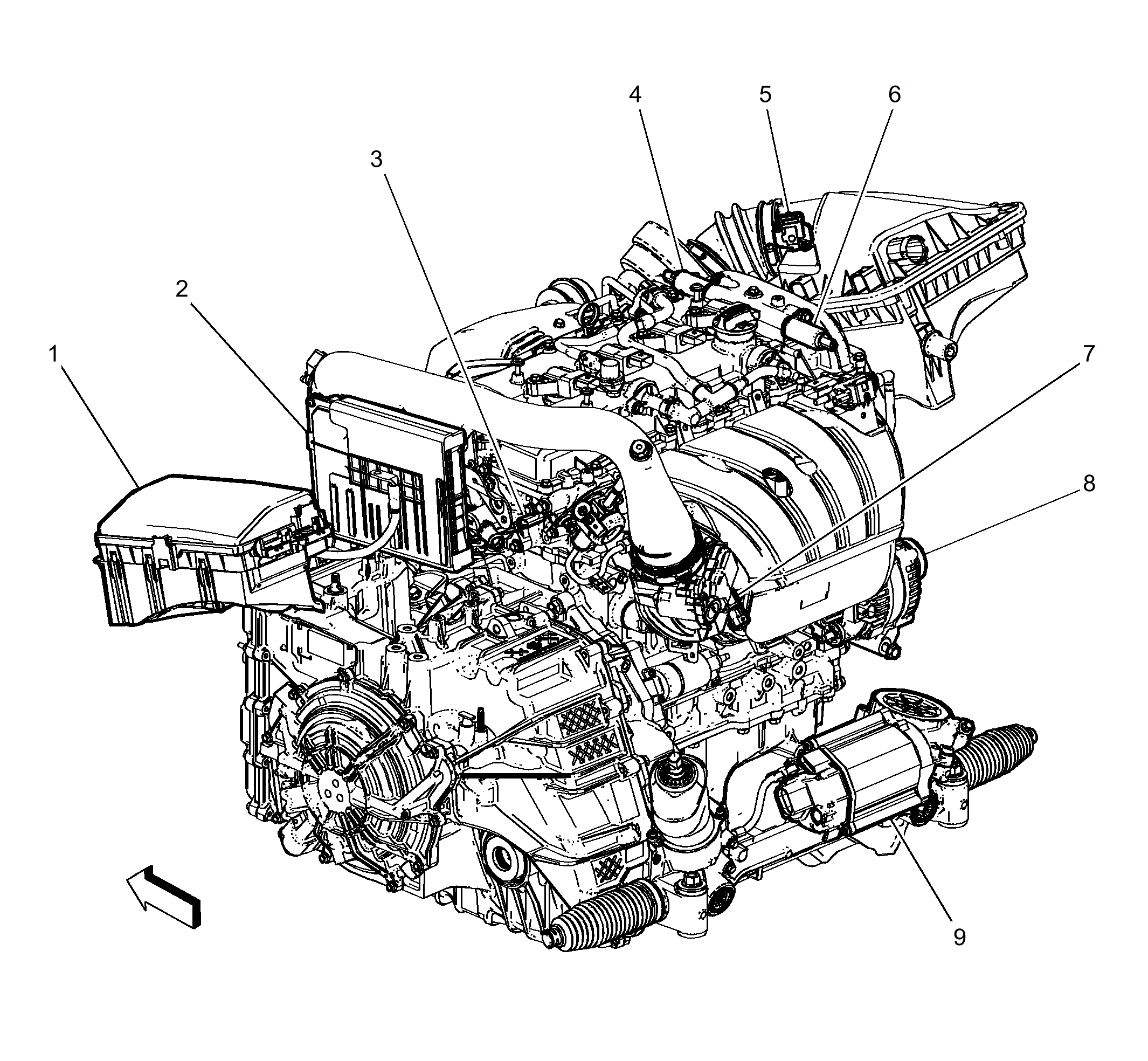

Fig 1: Left Rear of Engine Components (LTG)

Courtesy of GENERAL MOTORS COMPANY
