Chevrolet
>>
2015
>>
Malibu LS
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake System
>>
Schematic Wiring Diagrams
>>
Antilock Brake System Wiring Schematics
>>
Module Power, Ground, Subsystem References and Brake Applied Signal
Module Power, Ground, Subsystem References and Brake Applied Signal

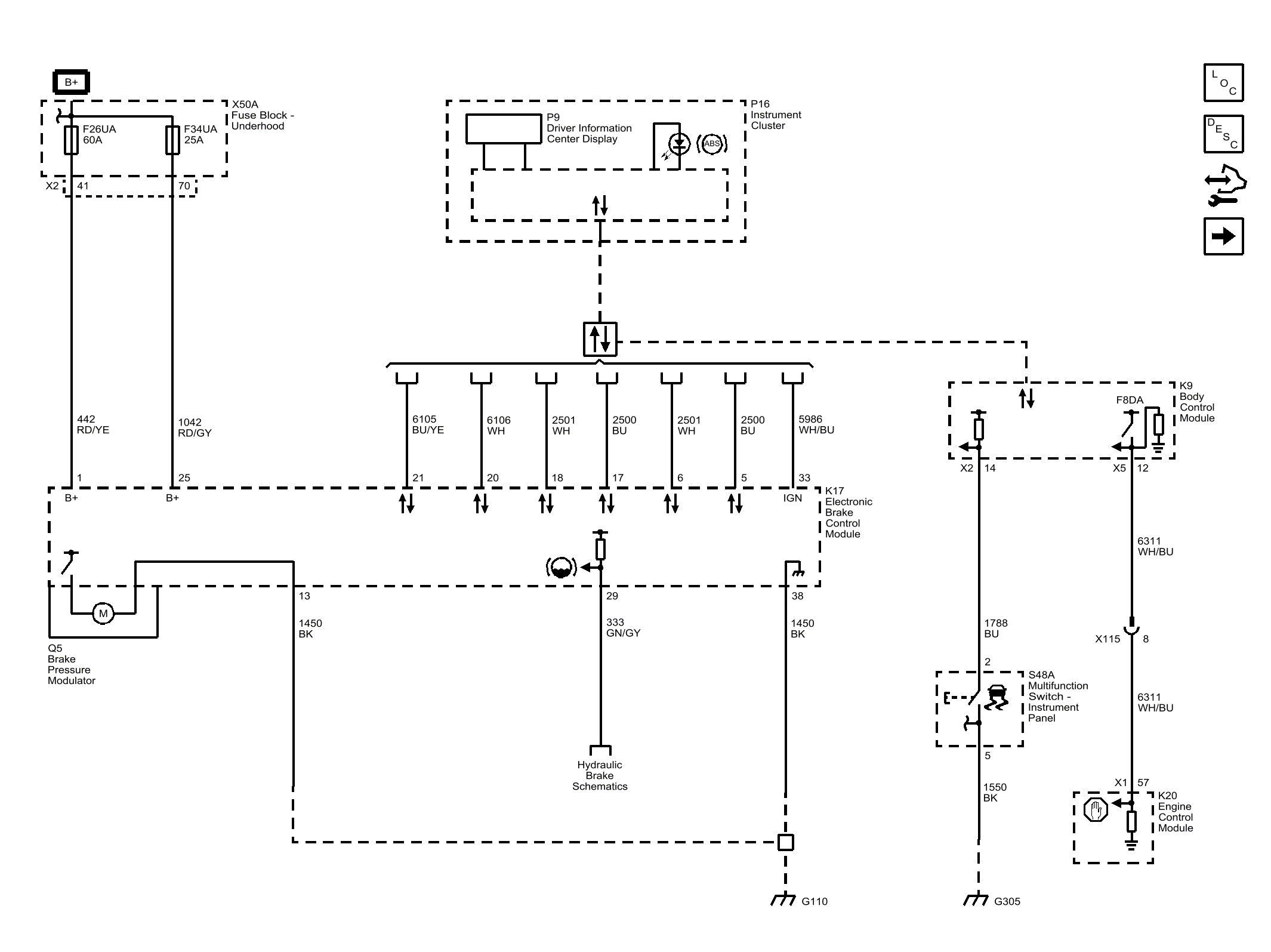

Fig 1: Module Power, Ground, Subsystem References and Brake Applied Signal
Courtesy of GENERAL MOTORS COMPANY
