Info Display Module

WARNING: This page is about a different car, the 2015 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

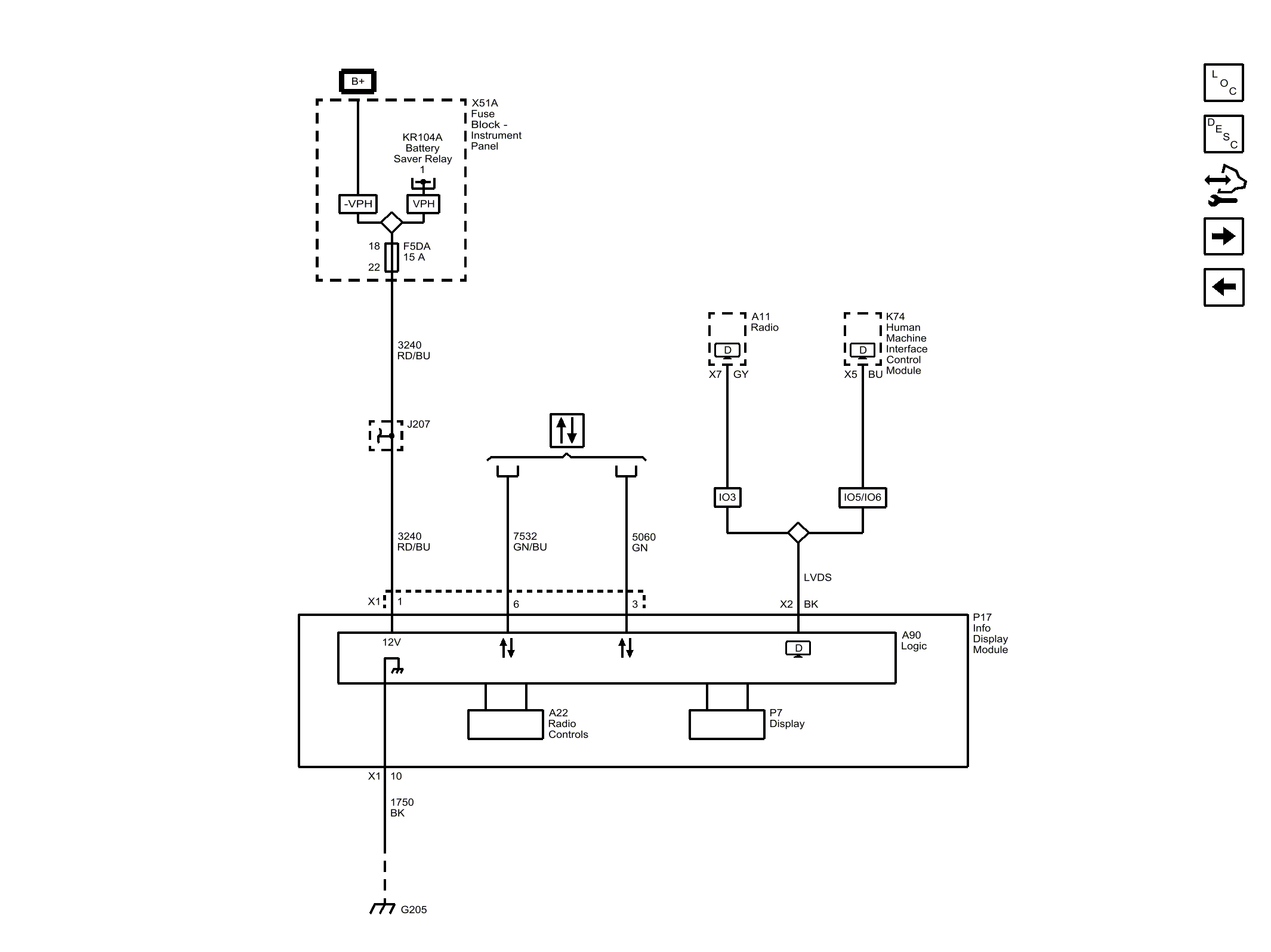

Fig 1: Info Display Module
GM3715834Courtesy of GENERAL MOTORS COMPANY
