Stop Bulb Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

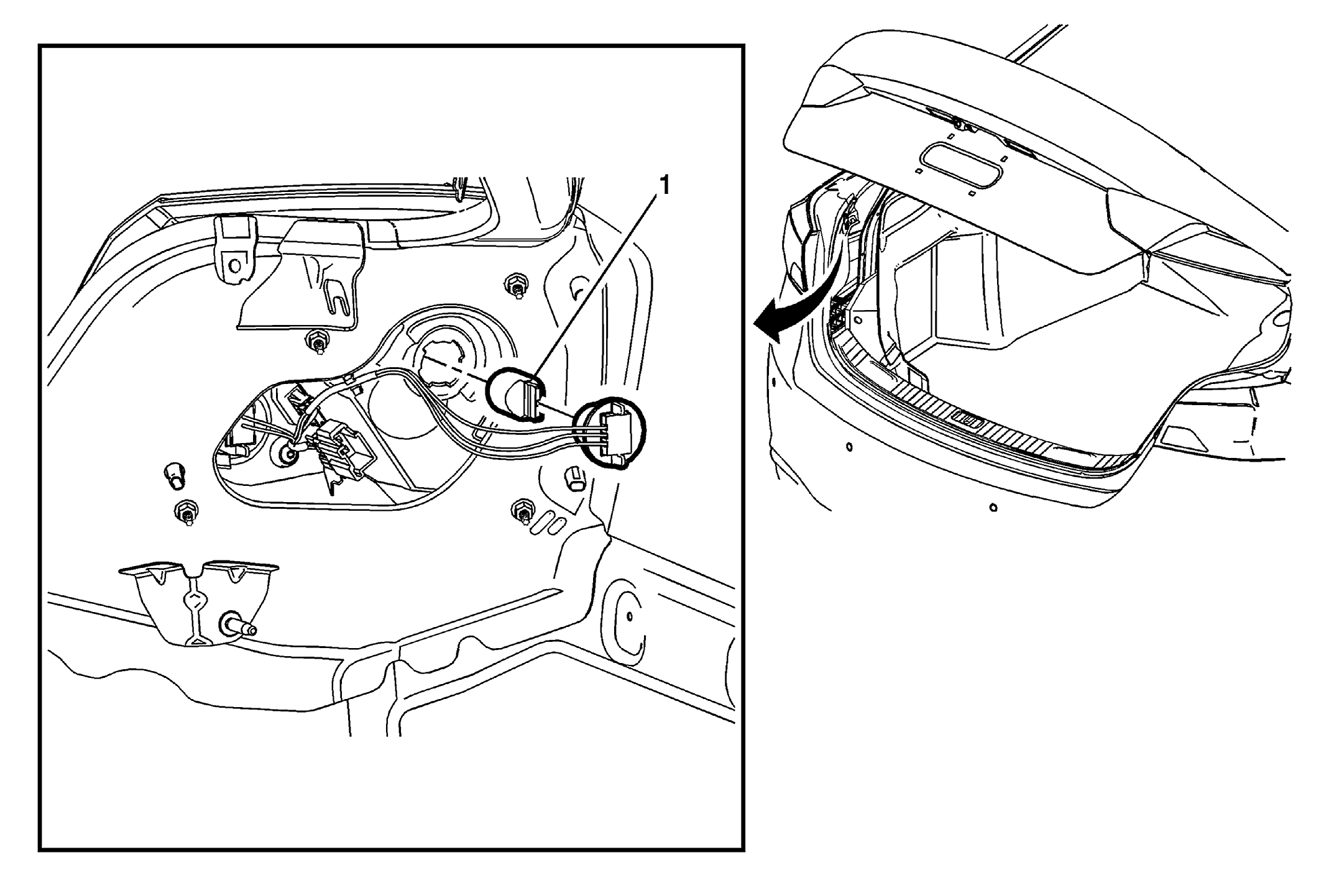

Fig 1: Stop Bulb

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Reposition the rear compartment side trim-left hand when servicing left side. Refer to Rear Compartment Side Trim Replacement - Left Side (Without CNG) and Rear Compartment Side Trim Replacement - Left Side (With CNG) . Reposition the rear compartment side trim-right hand when servicing right side. Refer to Rear Compartment Side Trim Replacement - Right Side (Without CNG) and Rear Compartment Side Trim Replacement - Right Side (With CNG) .
1	Stop Bulb Procedure Rotate stop bulb socket counterclockwise and pull from the rear body structure stop lamp. Pull stop bulb straight out from the stop bulb socket.

Callout

Component Name

Preliminary Procedure

Reposition the rear compartment side trim-left hand when servicing left side. Refer to Rear Compartment Side Trim Replacement - Left Side (Without CNG) and Rear Compartment Side Trim Replacement - Left Side (With CNG) .
Reposition the rear compartment side trim-right hand when servicing right side. Refer to Rear Compartment Side Trim Replacement - Right Side (Without CNG) and Rear Compartment Side Trim Replacement - Right Side (With CNG) .

Stop Bulb

Procedure

Rotate stop bulb socket counterclockwise and pull from the rear body structure stop lamp.
Pull stop bulb straight out from the stop bulb socket.
