Radio Rear Speaker Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

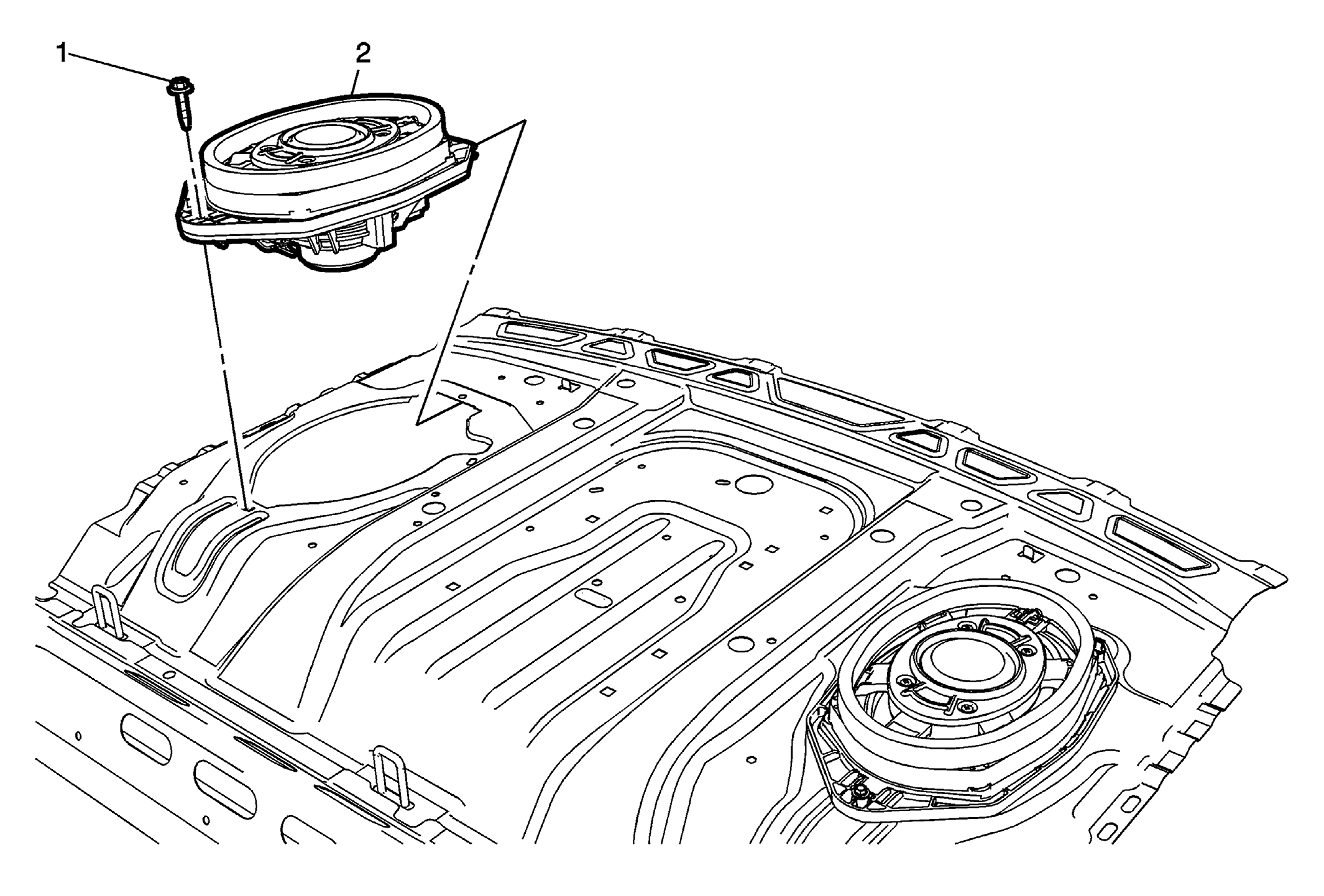

Fig 1: Radio Rear Speaker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement .
1	Radio Rear Speaker Fastener CAUTION: Refer to Fastener Caution .
2	Radio Rear Speaker Procedure Release the spring retainer holding the speaker. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement .

Radio Rear Speaker Fastener

CAUTION: Refer to Fastener Caution .

Radio Rear Speaker

Procedure

Release the spring retainer holding the speaker.
Disconnect the electrical connector.
