Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the brake fluid level indicator switch (1).

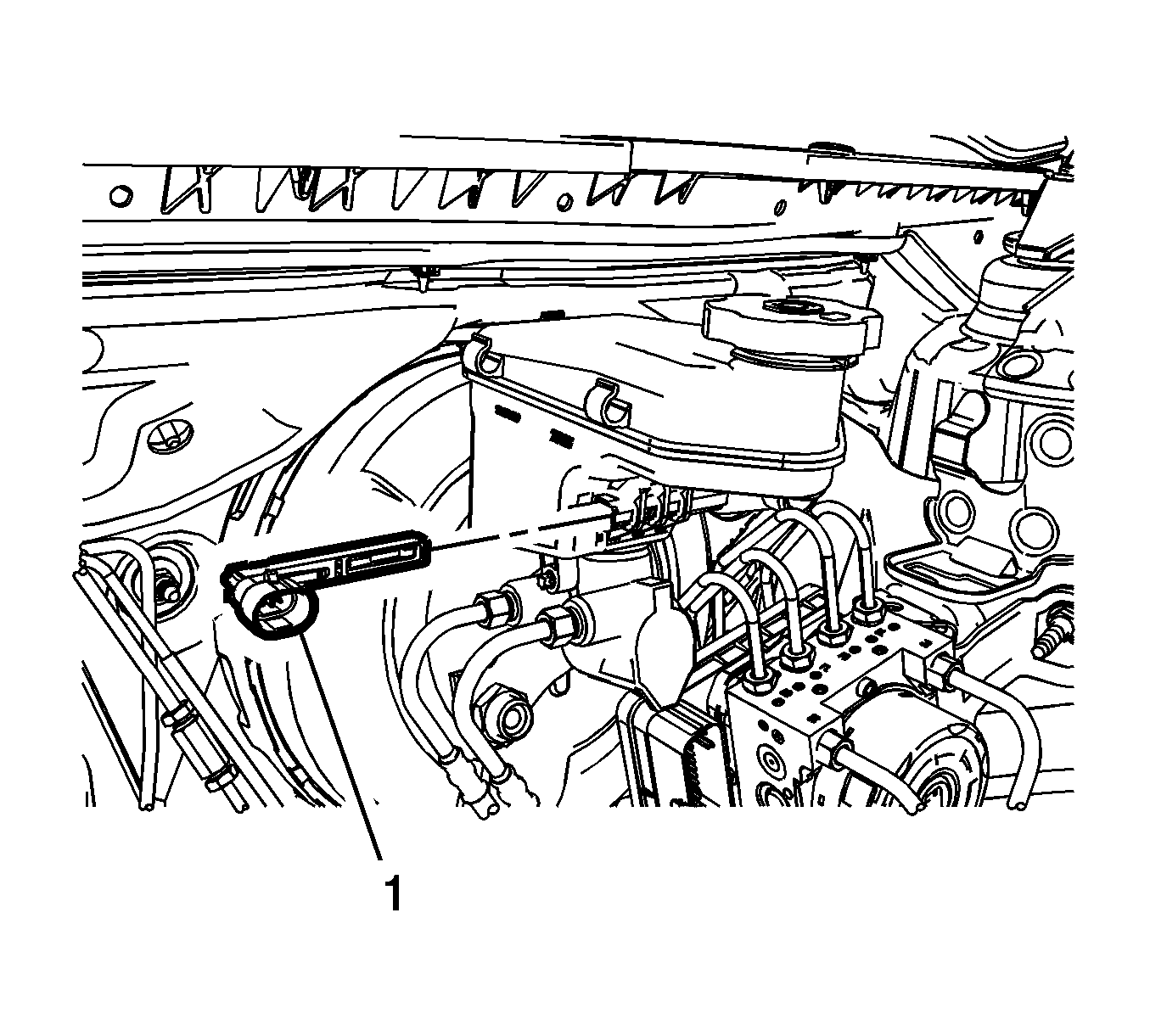

    Fig 1: Brake Fluid Level Indicator Switch (J64)
    GM2756214Courtesy of GENERAL MOTORS COMPANY
  2. Ensure the locking tab of the brake fluid level indicator switch is fully engaged in the master cylinder reservoir.
  3. Connect the brake fluid level indicator switch electrical connector.
