Airbag Front Passenger Presence Module Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

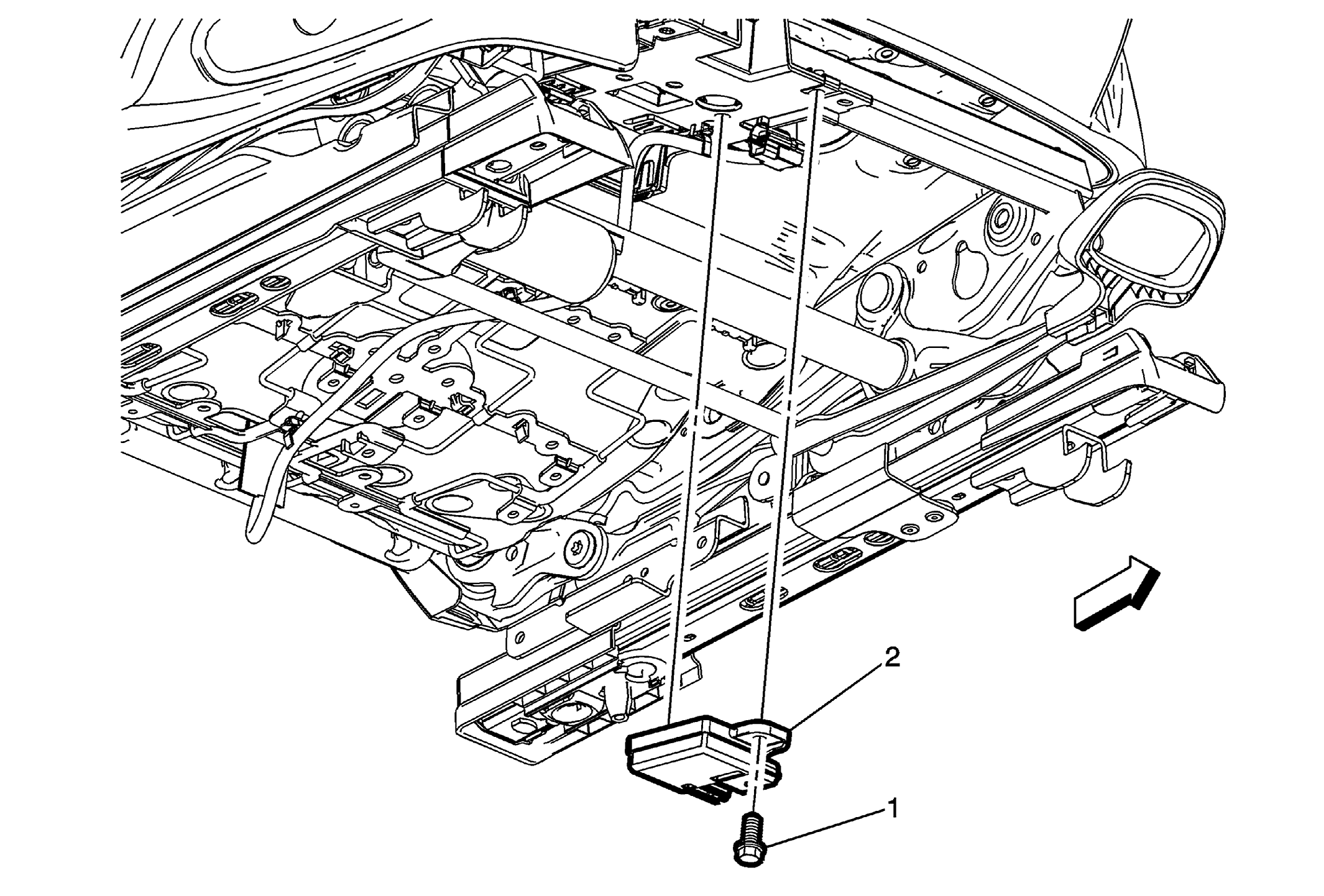

Fig 1: Airbag Front Passenger Presence Module
GM2913219Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front seat. Refer to Driver or Passenger Seat Removal and Installation .
1 Inflatable Restraint Front Passenger Presence Module Fastener
CAUTION: Refer to Fastener Caution .
2 Inflatable Restraint Front Passenger Presence Module

Procedure

  1. Disconnect the electrical connectors.
  2. Remove the module from the wiring harness bracket.
  3. Refer to Control Module References for programing and setup information.
