Radio Front Speaker Grille Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

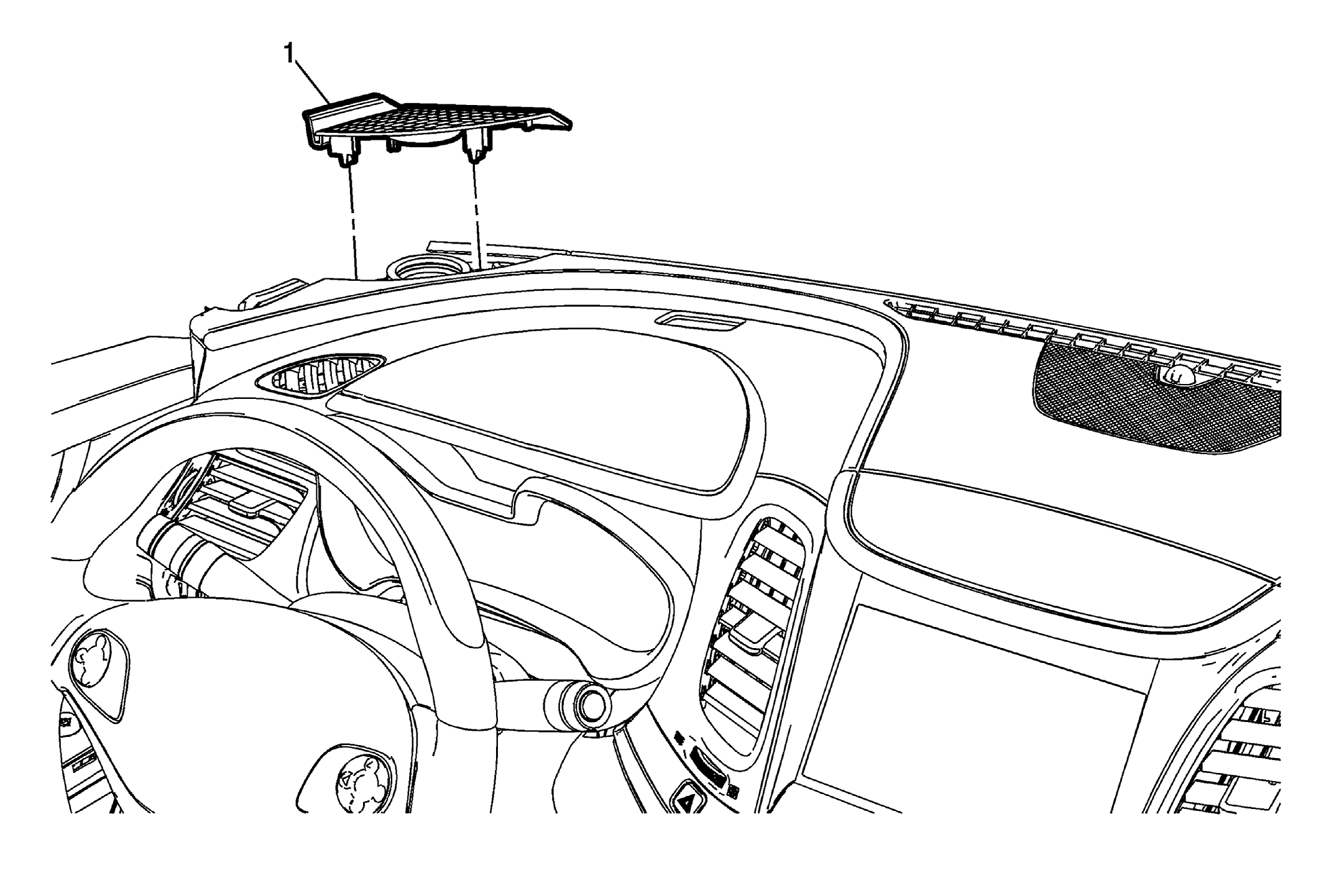

Fig 1: Radio Front Speaker Grille

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield garnish molding. Refer to Windshield Garnish Molding Replacement .
1	Radio Front Speaker Grille Procedure Use a flat-bladed plastic trim tool to release the retainers securing the grille to the instrument panel upper trim panel. Left side is shown, right side similar.

Callout

Component Name

Preliminary Procedure
Remove the windshield garnish molding. Refer to Windshield Garnish Molding Replacement .

Radio Front Speaker Grille

Procedure

Use a flat-bladed plastic trim tool to release the retainers securing the grille to the instrument panel upper trim panel.
Left side is shown, right side similar.
