Radio Front Center Speaker Grille Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |

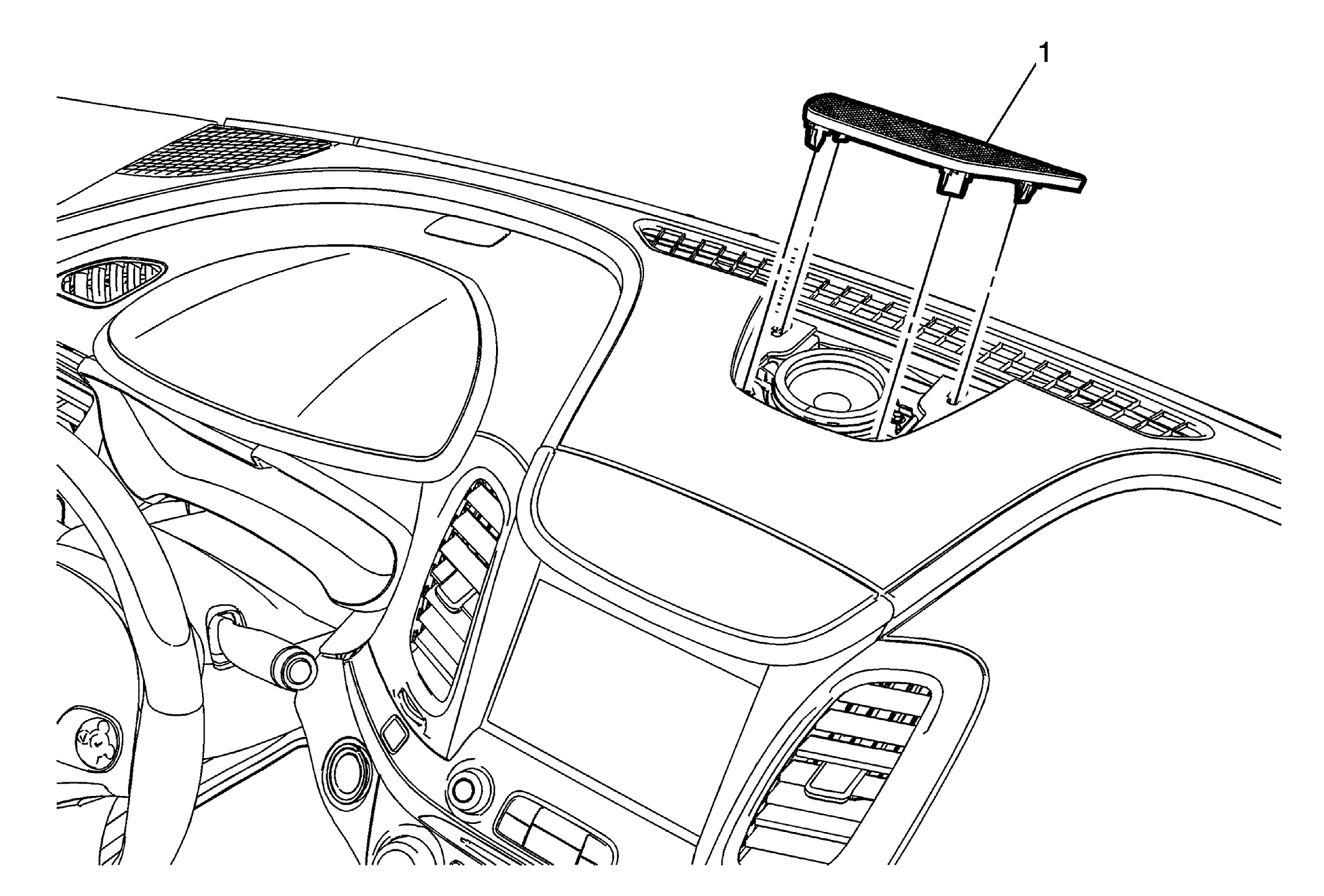

Radio Front Center Speaker Grille Procedure
- Use a flat-bladed plastic trim tool to release the retainers securing the grille to the instrument panel upper trim panel.
- Disconnect the electrical connection.
- When replacing the grille, transfer necessary components.
|
