Front Compartment Splash Shield Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

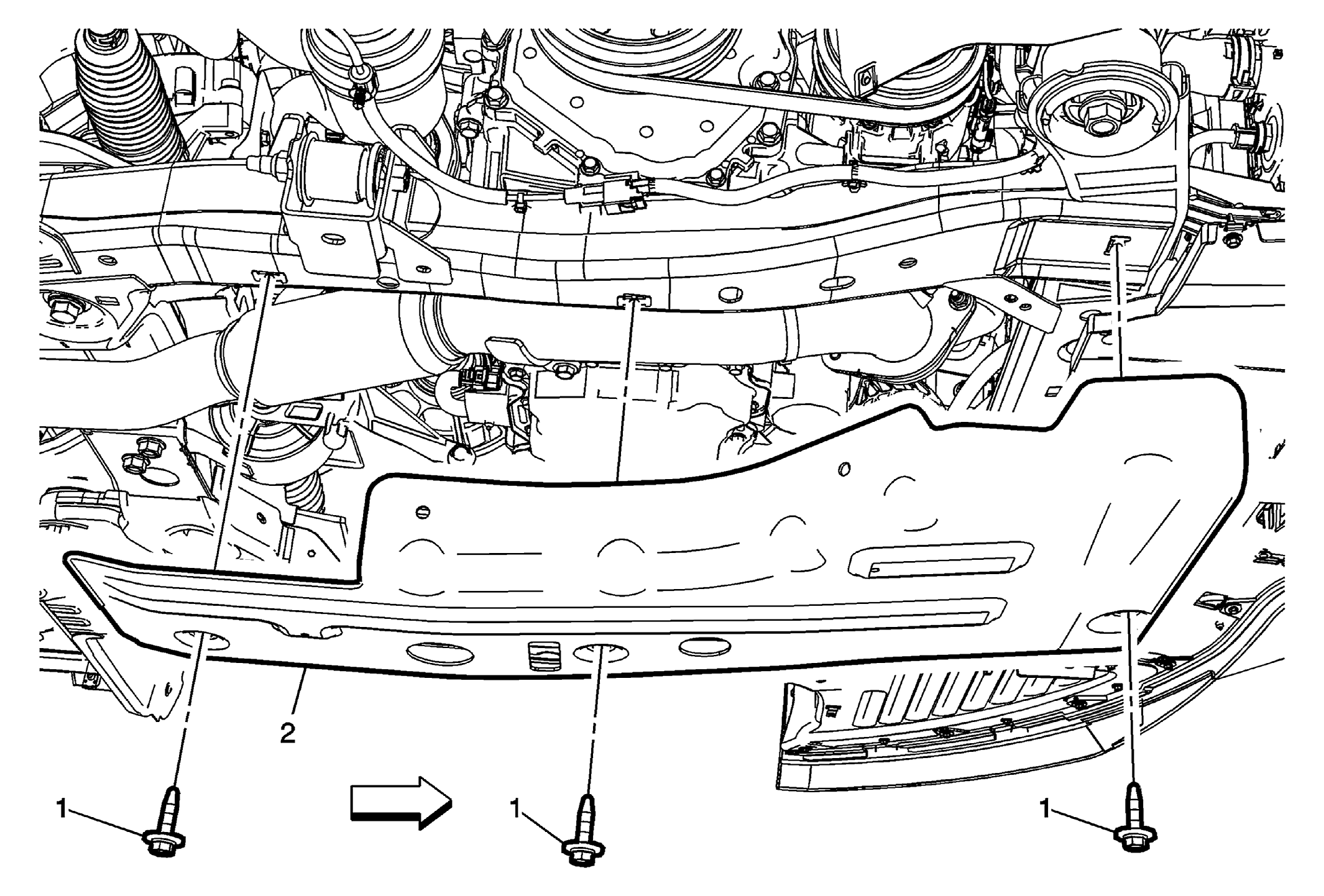

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . |
|
| 1 | Front Compartment Splash Shield Fastener (Qty 3)
CAUTION:
Refer to Fastener Caution
.
|
| 2 | Front Compartment Splash Shield |
