Installation Procedure

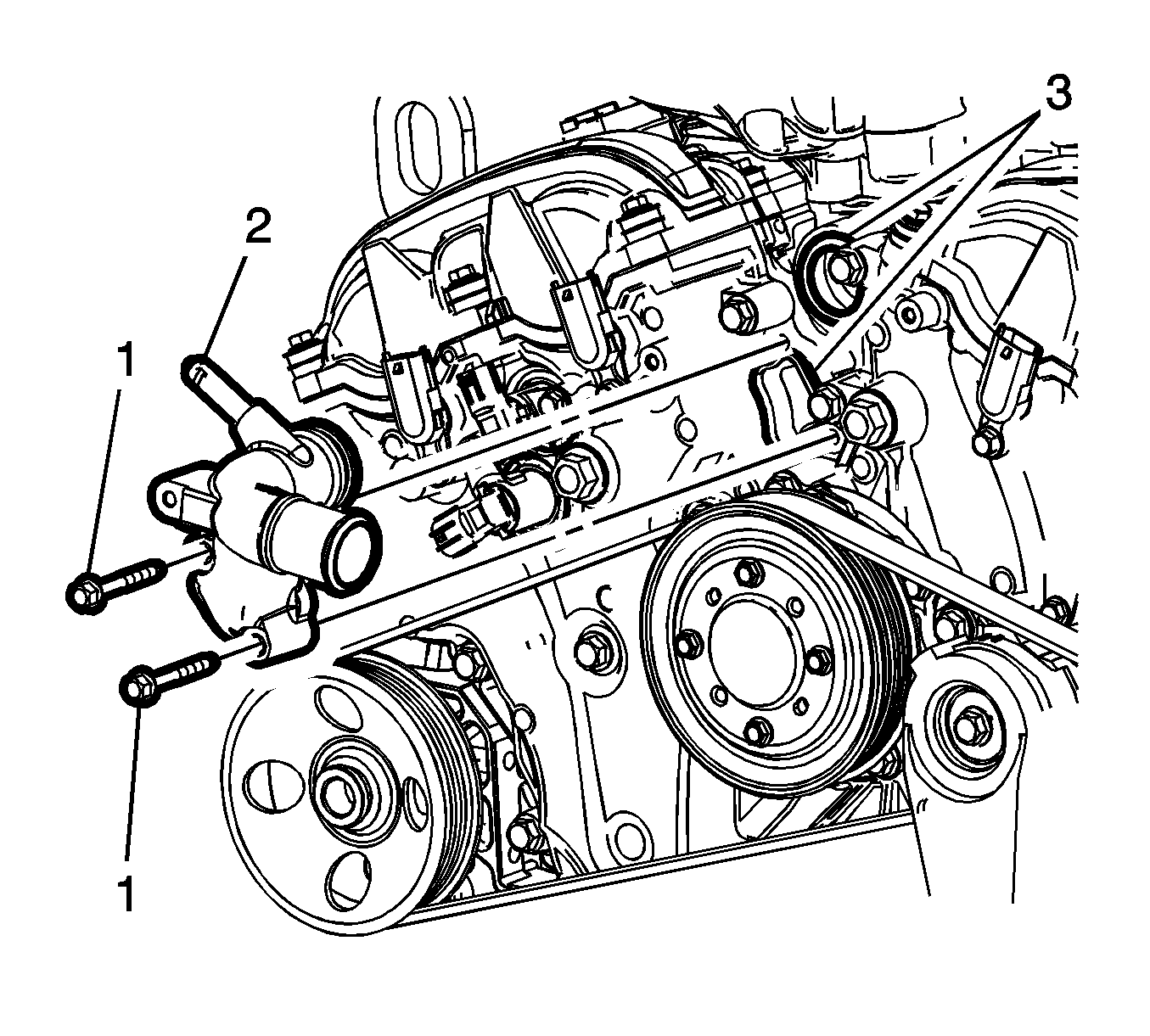

Fig 1: Water Outlet, Fasteners And Seals

GM2632509

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

Install the water outlet (2) with NEW seals (3) and tighten the water outlet fasteners (1) to
10 N.m (89 lb in).

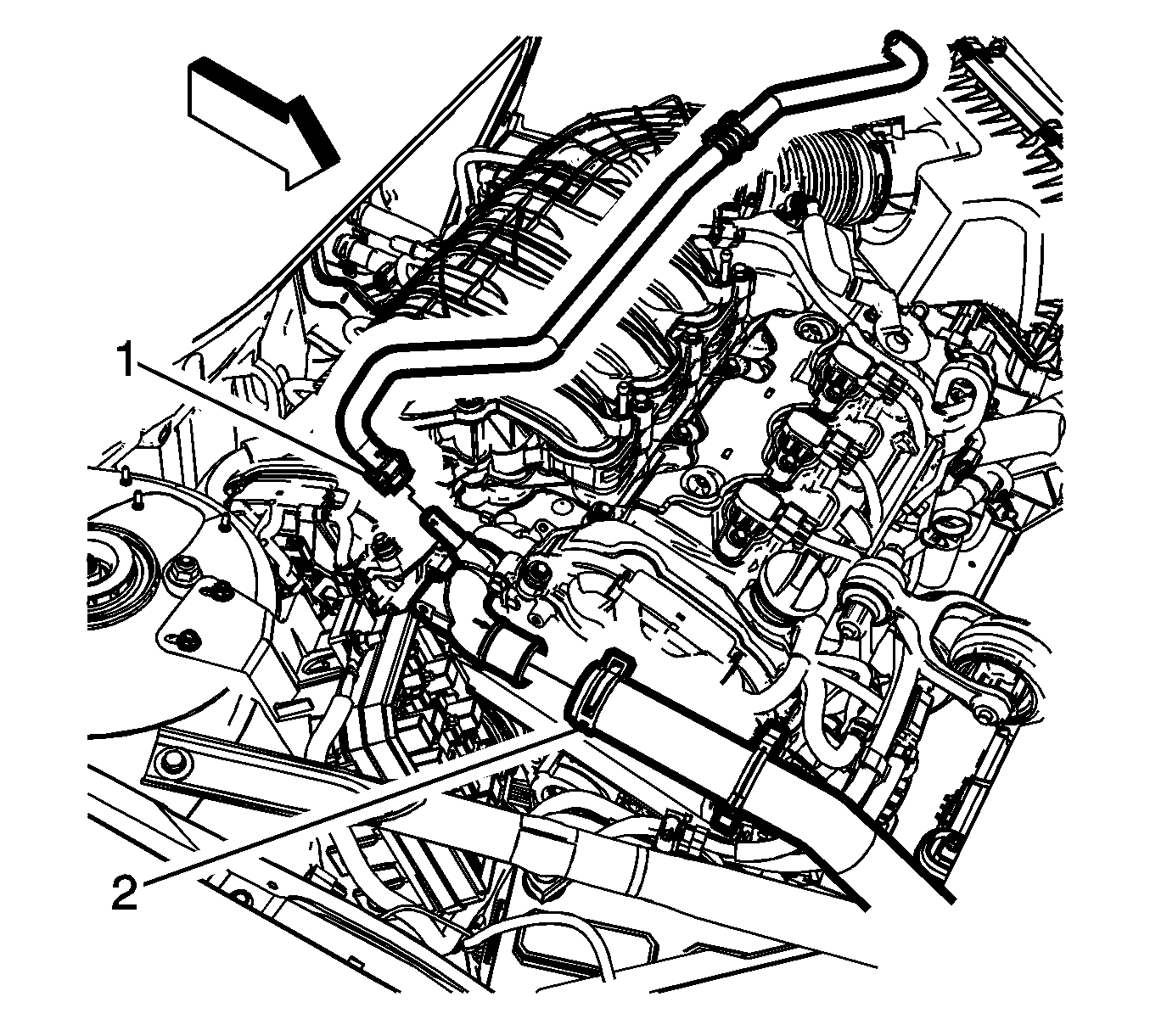

Fig 2: Radiator Inlet Hose And Air Bleed Pipe

GM2632511

Courtesy of GENERAL MOTORS COMPANY

Install the radiator inlet hose (2) and the engine coolant air bleed pipe (1).
Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
Fill the cooling system. Refer to Cooling System Draining and Filling .
Start the engine and check for coolant leaks.
