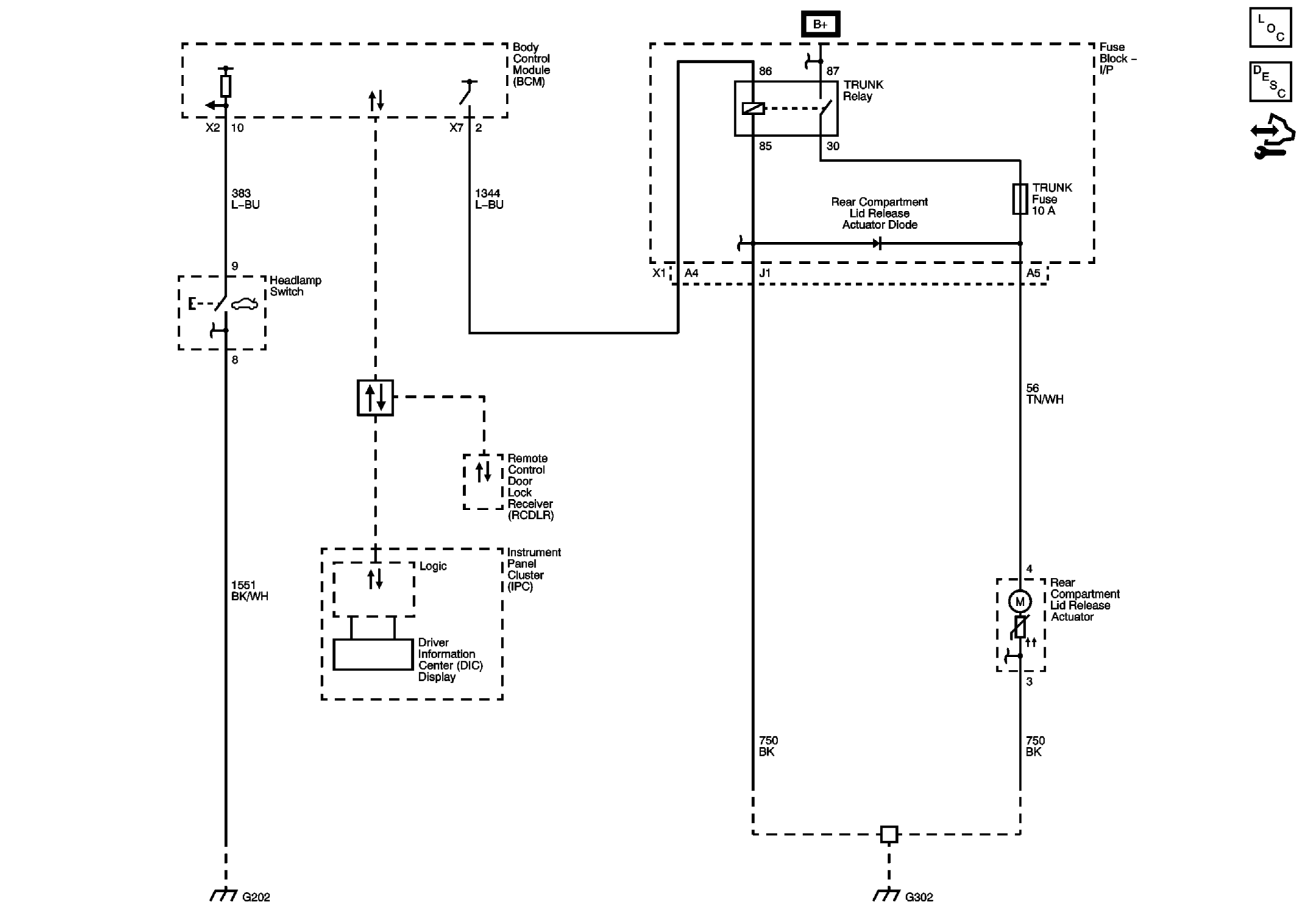

Home >> Chevrolet >> 2015 >> Impala Limited LS >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System And Remote Functions >> Schematic Wiring Diagrams >> Release Systems Wiring Schematics >> Release Systems
