Installation Procedure

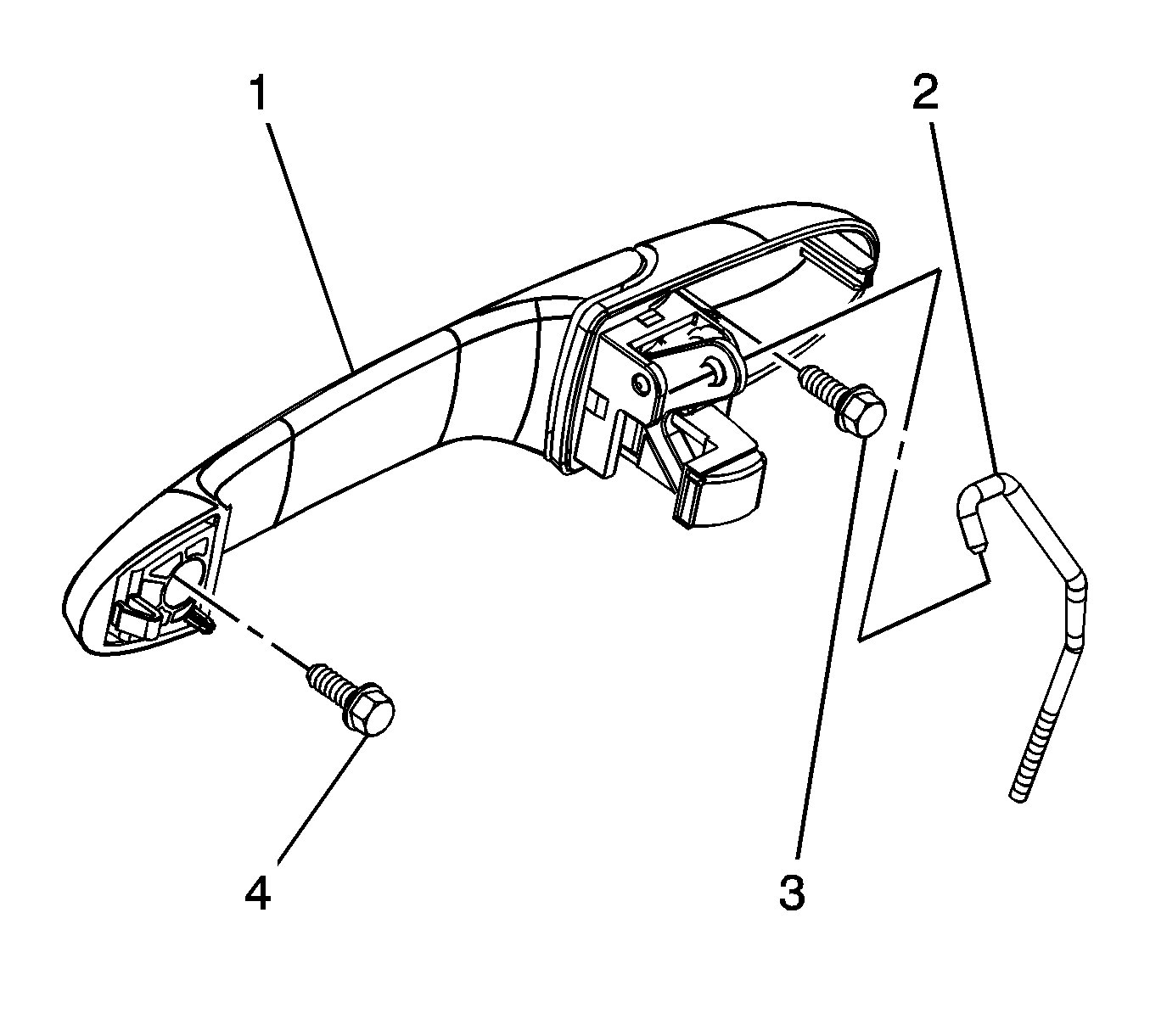

    Fig 1: Outside Door Handle and Rod
    GM1363642Courtesy of GENERAL MOTORS COMPANY
  1. Install the outside door handle (1) and the rod (2) to the door.

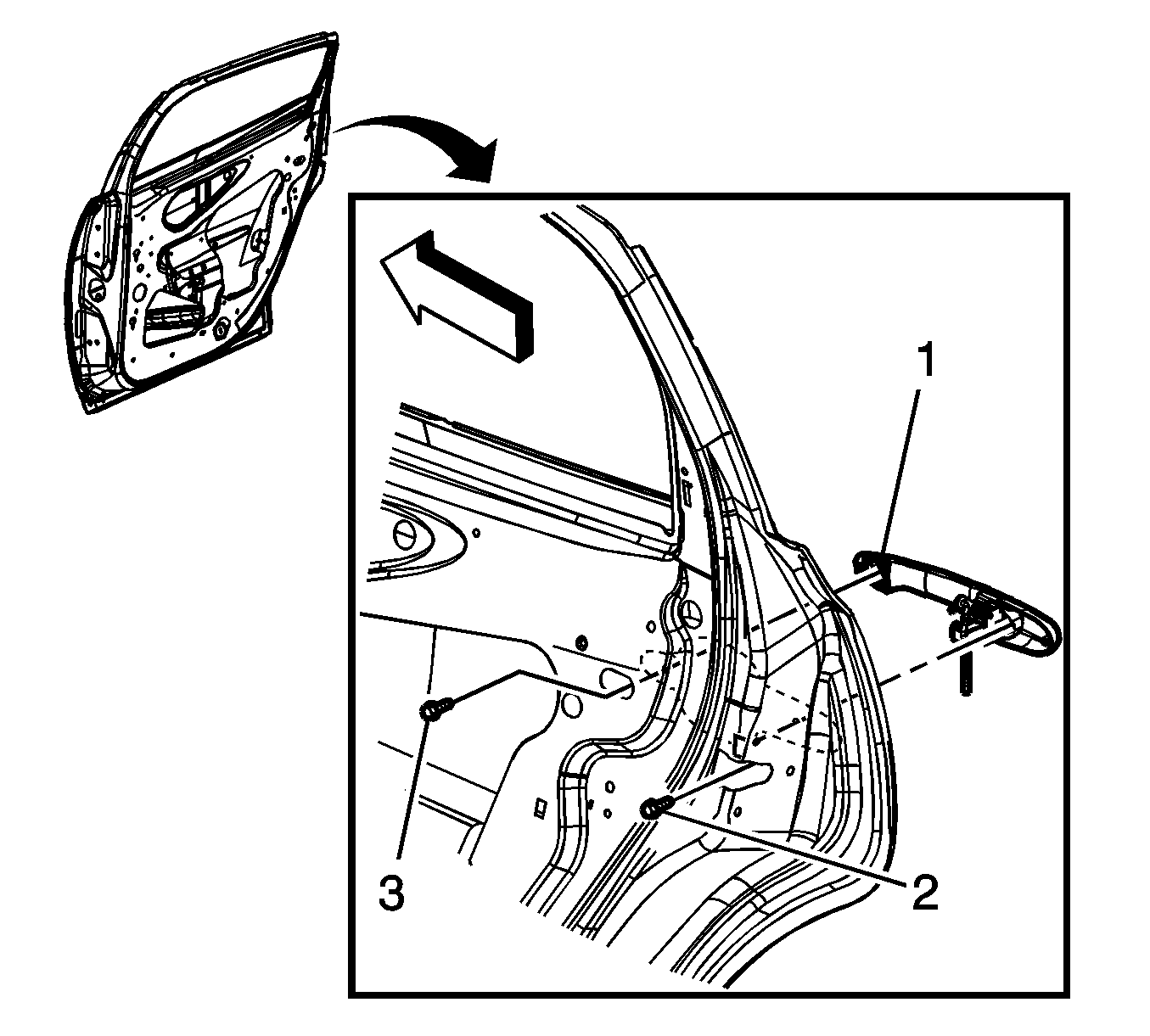

    2. Fig 2: View Of Rear Door Hinge Bolts
    GM1363638Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the outside handle bolt (2) through the latch hole.

    Tighten

    Tighten the bolt to 10 N.m (89 lb in).

  3. Install the bolts (3) to the rear door handle.

    Tighten

    Tighten the bolt to 10 N.m (89 lb in).

  4. Install the rear door lock. Refer to Rear Side Door Lock Replacement .
  5. Install the outside door handle bolt access tape.

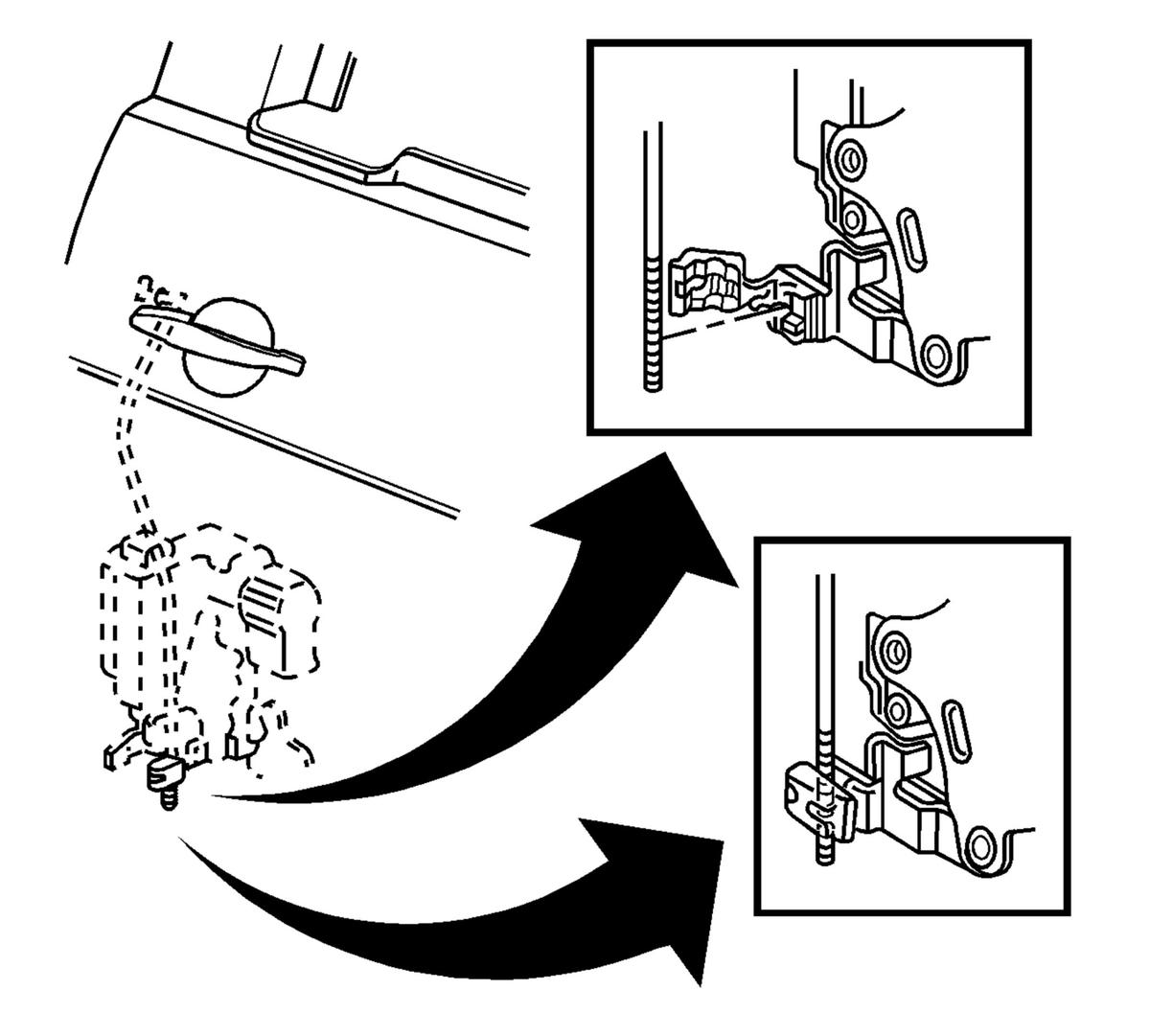

    6. Fig 3: View Of Handle Rod To Lock Clip
    GM1350838Courtesy of GENERAL MOTORS COMPANY
  6. Install the outside handle rod into the clip.
  7. Close the clip cover over the outside door handle rod.
  8. Inspect the outside door handle for proper operation.
  9. Remove the masking tape.
  10. Install the rear door water deflector. Refer to Rear Side Door Water Deflector Replacement .
  11. Install the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement .
